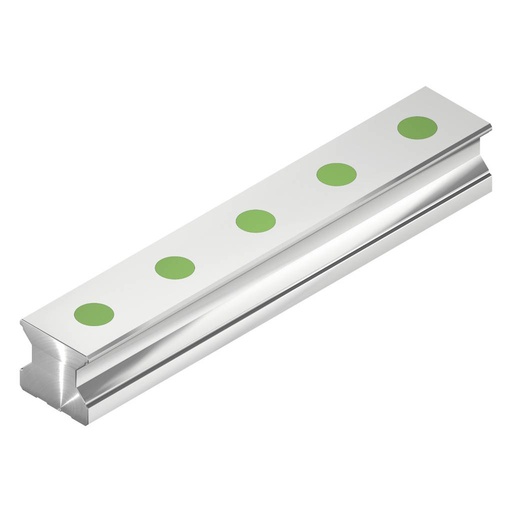

Block RGW35-CC-ZA-H is used in conjunction with the RGR35R4000H profile rail.
RG series features a roller as the rolling element instead of steel balls. The roller series offers super high rigidity and very high load capacities. The RG series linear guideway offers high performance for high-precision manufacturing and achieving longer service life.
Application: CNC machining centers, heavy duty cutting machines, CNC grinding machines, injection molding machines, electric discharge machines, wire cutting machines, plano millers.

Block RGW35-HC-ZA-H is used in conjunction with the RGR35R4000H profile rail.
RG series features a roller as the rolling element instead of steel balls. The roller series offers super high rigidity and very high load capacities. The RG series linear guideway offers high performance for high-precision manufacturing and achieving longer service life.
Application: CNC machining centers, heavy duty cutting machines, CNC grinding machines, injection molding machines, electric discharge machines, wire cutting machines, plano millers.

Block RGW45-CC-ZA-H is used in conjunction with the RGR45R4000H profile rail.
RG series features a roller as the rolling element instead of steel balls. The roller series offers super high rigidity and very high load capacities. The RG series linear guideway offers high performance for high-precision manufacturing and achieving longer service life.
Application: CNC machining centers, heavy duty cutting machines, CNC grinding machines, injection molding machines, electric discharge machines, wire cutting machines, plano millers.

Block RGW45-CC-ZA-P is used in conjunction with the RGR45R4000P profile rail.
RG series features a roller as the rolling element instead of steel balls. The roller series offers super high rigidity and very high load capacities. The RG series linear guideway offers high performance for high-precision manufacturing and achieving longer service life.
Application: CNC machining centers, heavy duty cutting machines, CNC grinding machines, injection molding machines, electric discharge machines, wire cutting machines, plano millers.

Block RGW45-HC-ZA-P is used in conjunction with the RGR45R4000P profile rail.
RG series features a roller as the rolling element instead of steel balls. The roller series offers super high rigidity and very high load capacities. The RG series linear guideway offers high performance for high-precision manufacturing and achieving longer service life.
Application: CNC machining centers, heavy duty cutting machines, CNC grinding machines, injection molding machines, electric discharge machines, wire cutting machines, plano millers.

Block RGW55-HC-ZA-P is used in conjunction with the RGR55R4000P profile rail.
RG series features a roller as the rolling element instead of steel balls. The roller series offers super high rigidity and very high load capacities. The RG series linear guideway offers high performance for high-precision manufacturing and achieving longer service life.
Application: CNC machining centers, heavy duty cutting machines, CNC grinding machines, injection molding machines, electric discharge machines, wire cutting machines, plano millers.

SBR shafts are precision-ground cylindrical guides mounted on an aluminum support rail, which simplifies installation and increases structural rigidity. This support ensures stable alignment and reduces bending, allowing SBR shafts to operate reliably under medium loads in CNC machines, 3D printers, and various automated systems.

Diameter: 10 mm.
Length: 4000 mm.
Tolerance: h6.
Material: C45.

SBR10UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SME10GUU (Nippon bearing)

Inner Diameter (d): 10 mm
Highth (F): 24 mm.
Width (W): 36 mm.
Length (L): 32 mm.
Clamping bolts (S): M5.

SBR shafts are precision-ground cylindrical guides mounted on an aluminum support rail, which simplifies installation and increases structural rigidity. This support ensures stable alignment and reduces bending, allowing SBR shafts to operate reliably under medium loads in CNC machines, 3D printers, and various automated systems.

Cross References:
R1014 012 00 (Rexroth)
FTSN12GW (FLI)
TSNW12 (INA)

Diameter: 12 mm.
Length: 4000 mm.
Tolerance: h6.
Material: C45.

SBR12UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SME12GUU (Nippon bearing)

Inner Diameter (d): 12 mm
Highth (F): 27,6 mm.
Width (W): 40 mm.
Length (L): 39 mm.
Clamping bolts (S): M5.

SBR13UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SME13GUU (Nippon bearing)

Inner Diameter (d): 13 mm
Highth (F): 27,6 mm.
Width (W): 40 mm.
Length (L): 39 mm.
Clamping bolts (S): M5.

SBR shafts are precision-ground cylindrical guides mounted on an aluminum support rail, which simplifies installation and increases structural rigidity. This support ensures stable alignment and reduces bending, allowing SBR shafts to operate reliably under medium loads in CNC machines, 3D printers, and various automated systems.

Cross References:
R1014 016 00 (Rexroth)
FTSN16GW (FLI)
TSNW16 (INA)

Diameter: 16 mm.
Length: 6000 mm.
Tolerance: h6.
Material: C45.

SBR16LUU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SME16GWUU (Nippon bearing)

Inner Diameter (d): 16 mm
Highth (F): 33 mm.
Width (W): 85 mm.
Length (L): 45 mm.
Clamping bolts (S): M5.

SBR16UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
LMK16UU (SAMICK)
SME16GUU (Nippon bearing)

Inner Diameter (d): 16 mm
Highth (F): 33 mm.
Width (W): 45 mm.
Length (L): 45 mm.
Clamping bolts (S): M5.

SBR shafts are precision-ground cylindrical guides mounted on an aluminum support rail, which simplifies installation and increases structural rigidity. This support ensures stable alignment and reduces bending, allowing SBR shafts to operate reliably under medium loads in CNC machines, 3D printers, and various automated systems.

Cross References:
R1014 020 00 (Rexroth)
FTSN20GW (FLI)
TSNW20 (INA)

Diameter: 20 mm.
Length: 6000 mm.
Tolerance: h6.
Material: C45.

SBR20LUU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SME20GWUU (Nippon bearing)

Inner Diameter (d): 20 mm
Highth (F): 39 mm.
Width (W): 48 mm.
Length (L): 96 mm.
Clamping bolts (S): M6.

SBR20UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
LMK20UU (SAMICK)
SME20GUU (Nippon bearing)

Inner Diameter (d): 20 mm
Highth (F): 39 mm.
Width (W): 48 mm.
Length (L): 50 mm.
Clamping bolts (S): M6.

SBR shafts are precision-ground cylindrical guides mounted on an aluminum support rail, which simplifies installation and increases structural rigidity. This support ensures stable alignment and reduces bending, allowing SBR shafts to operate reliably under medium loads in CNC machines, 3D printers, and various automated systems.

Cross References:
R1014 025 00 (Rexroth)
FTSN25GW (FLI)
TSNW25 (INA)

Diameter: 25 mm.
Length: 6000 mm.
Tolerance: h6.
Material: C45.

SBR25LUU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SME25GWUU (Nippon bearing)

Inner Diameter (d): 25 mm
Highth (F): 47 mm.
Width (W): 60 mm.
Length (L): 130 mm.
Clamping bolts (S): M6.

SBR25UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
LMK25UU (SAMICK)
SME25GUU (Nippon bearing)

Inner Diameter (d): 25 mm
Highth (F): 47 mm.
Width (W): 60 mm.
Length (L): 65 mm.
Clamping bolts (S): M6.

SBR shafts are precision-ground cylindrical guides mounted on an aluminum support rail, which simplifies installation and increases structural rigidity. This support ensures stable alignment and reduces bending, allowing SBR shafts to operate reliably under medium loads in CNC machines, 3D printers, and various automated systems.

Cross References:
R1014 030 00 (Rexroth)
FTSN30GW (FLI)
TSNW30 (INA)

Diameter: 30 mm.
Length: 5900 mm.
Tolerance: h6.
Material: C45.

SBR30LUU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SME30GWUU (Nippon bearing)

Inner Diameter (d): 30 mm
Highth (F): 56 mm.
Width (W): 70 mm.
Length (L): 140 mm.
Clamping bolts (S): M8.

SBR30UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
LMK30UU (SAMICK)
SME30GUU (Nippon bearing)

Inner Diameter (d): 30 mm
Highth (F): 56 mm.
Width (W): 70 mm.
Length (L): 70 mm.
Clamping bolts (S): M8.

This rail does not require end fasteners, as the shaft is supported along its entire length by an aluminum support with holes for mounting on the frame. With this design, there is no shaft deflection over long lengths, so SBR guides can be used for CNC machines with large working areas, unlike conventional polished shafts.

Diameter: 35 mm.
Length: 5900 mm.
Tolerance: h6.
Material: C45.

SBR35LUU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Inner Diameter (d): 35 mm
Highth (F): 63 mm.
Width (W): 80 mm.
Length (L): 155 mm.
Clamping bolts (S): M8.

SBR35UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
LMK35UU (SAMICK)
SME35GUU (Nippon bearing)

Inner Diameter (d): 35 mm
Highth (F): 63 mm.
Width (W): 80 mm.
Length (L): 80 mm.
Clamping bolts (S): M8.

SBR shafts are precision-ground cylindrical guides mounted on an aluminum support rail, which simplifies installation and increases structural rigidity. This support ensures stable alignment and reduces bending, allowing SBR shafts to operate reliably under medium loads in CNC machines, 3D printers, and various automated systems.

Cross References:
R1014 040 00 (Rexroth)
FTSN40GW (FLI)
TSNW40 (INA)

Diameter: 40 mm.
Length: 5900 mm.
Tolerance: h6.
Material: C45 hardened steel.

SBR40LUU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Inner Diameter (d): 40 mm
Highth (F): 72 mm.
Width (W): 90 mm.
Length (L): 175 mm.
Clamping bolts (S): M10.

SBR35UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
LMK40UU (SAMICK)
SME40GUU (NB)

Inner Diameter (d): 40 mm
Highth (F): 72 mm.
Width (W): 90 mm.
Length (L): 90 mm.
Clamping bolts (S): M10.

SBR shafts are precision-ground cylindrical guides mounted on an aluminum support rail, which simplifies installation and increases structural rigidity. This support ensures stable alignment and reduces bending, allowing SBR shafts to operate reliably under medium loads in CNC machines, 3D printers, and various automated systems.

Cross References:
R1014 050 00 (Rexroth)
FTSN50GW (FLI)
TSNW50 (INA)

Diameter: 50 mm.
Length: 5900 mm.
Tolerance: h6.
Material: C45 hardened steel.

SBR50LUU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Inner Diameter (d): 50 mm
Highth (F): 92 mm.
Width (W): 120 mm.
Length (L): 215 mm.
Clamping bolts (S): M10.

SBR50UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
LMK50UU (SAMICK)
SME50GUU (NB)

Inner Diameter (d): 50 mm
Highth (F): 92 mm.
Width (W): 120 mm.
Length (L): 215 mm.
Clamping bolts (S): M10.
