AUTOMATION Servo systems

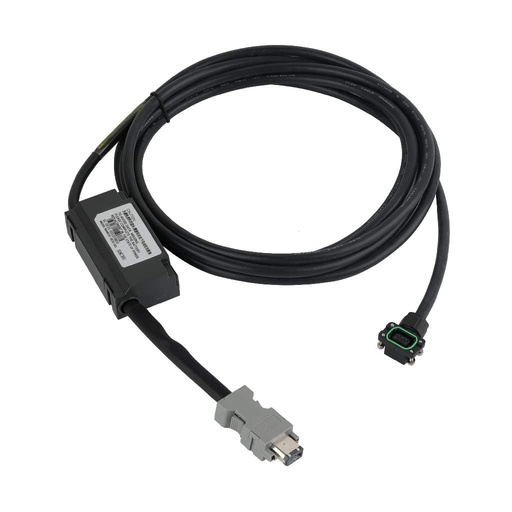

Leadshine CABLE-BMAH5M0-124-TS absolute encoder cable for servo systems.
CABLE-BMAH5M0-124-TS is for ELM1/2 series motors and EL6/EL7/EL8 series drivers.
Leadshine CABLE-BMAH5M0-124-TS is for connect an absolute servo motor encoder.
5.0 meters (16.4 foots) long.

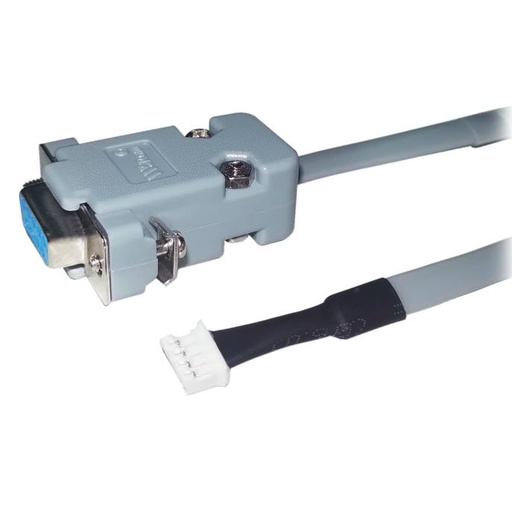

Leadshine CABLE-PC-1 cable for tuning stepper and servo systems.
RS232.
1.2 meters (3.9 foots) long.

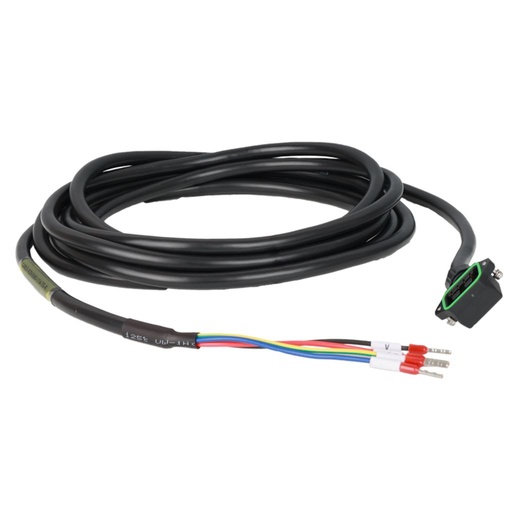

Leadshine CABLE-RZH5M0-114-TS power cable for servo systems.
CABLE-RZH5M0-114-TS is for ELM1/2 series motors without brake and EL6/EL7/EL8 series drivers.
5.0 meters (16.4 foots) long.

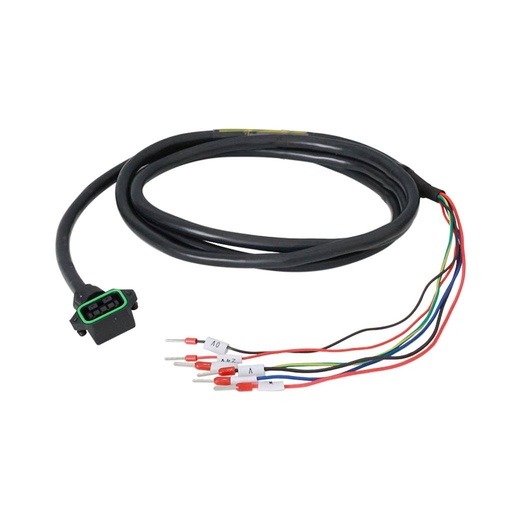

Leadshine CABLE-RZSH5M0-114-TS power cable for servo systems.
CABLE-RZSH5M0-114-TS is for ELM1/2 series motors with Brake and EL6/EL7/EL8 series drivers.
5.0 meters (16.4 foots) long.

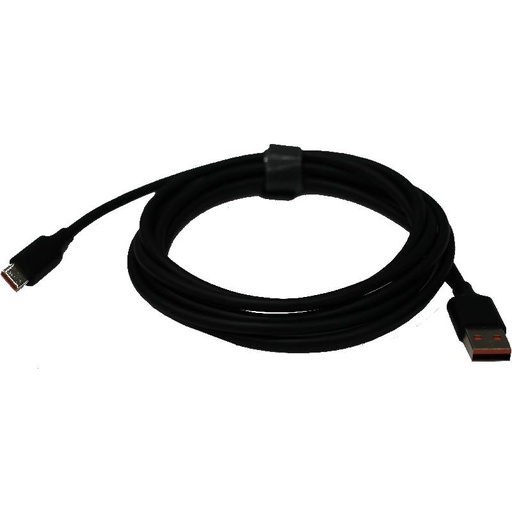

Leadshine CABLE-TYPEC2M0 cable for tuning servo systems.
CABLE-TYPEC2M0 cable for communication cable to EL7 and EL8 series servo drivers.
2 meters (6.6 foots) long.

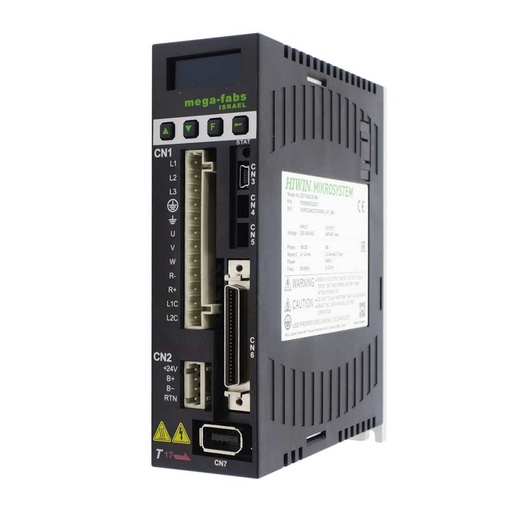

Hiwin D2T-0423-S-B4 servo driver.
Rated power 400 W.
Input voltage 230 VAC.
Current rated (peak) 2.5 (3.7) A
D2T-0423-S-B4 takes Pulse+Direction control modes.
User-configurable I/O: 9 DI, 4 DO and 1 AI.

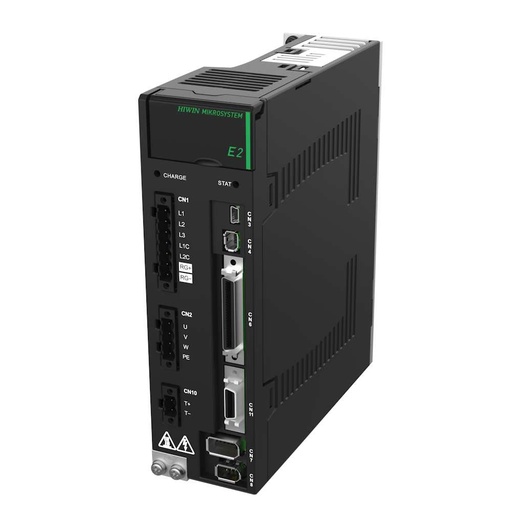

Hiwin ED2S-V0-003-1-C-00 servo driver.
Rated power 500 W.
Input voltage 230 VAC.
Current rated (peak) 3.0 (12.0) A
ED2S-V0-003-1-C-00 takes Pulse+Direction control modes.
User-configurable I/O: 9 DI, 5 DO, 1 AI and 2 AO.

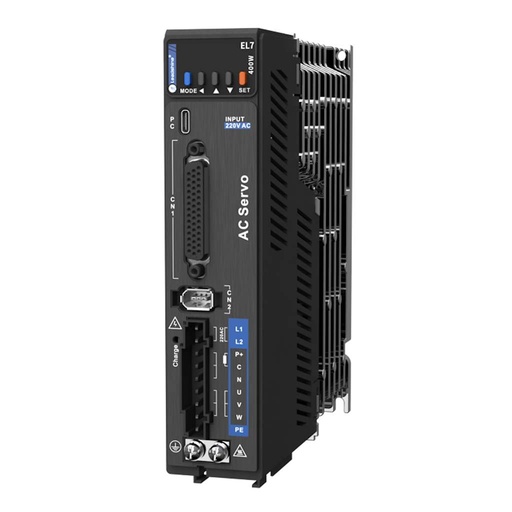

Leadshine EL7-RS400P servo driver.
Rated power 400 W.
Input voltage 230 VAC.
Current rated (peak) 3.5 (9.5) A
EL7-RS400P takes Modbus RTU, Pulse+Direction or Analogue control modes.
User-configurable I/O: 8 DI, 5 DO, 2 AI and 1 AO.

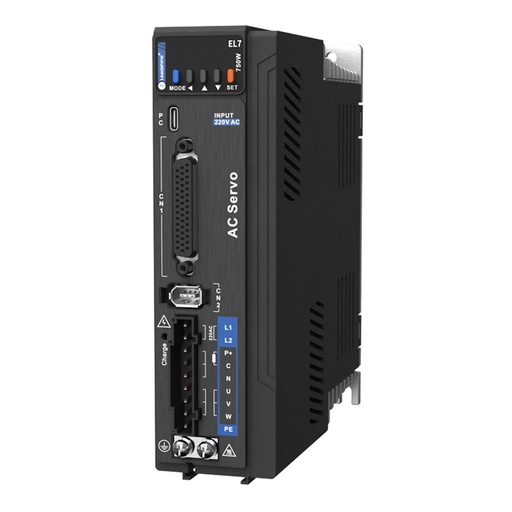

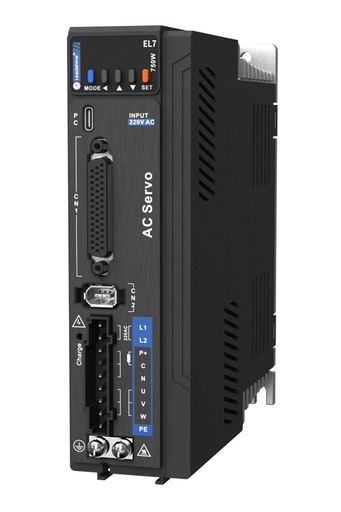

Leadshine EL7-RS750P servo driver.
Rated power 750 W.
Input voltage 230 VAC.
Current rated (peak) 5.5 (16.9) A.
EL7-RS750P takes Modbus RTU, Pulse+Direction or Analogue control modes.
User-configurable I/O: 8 DI, 5 DO, 2 AI and 1 AO.

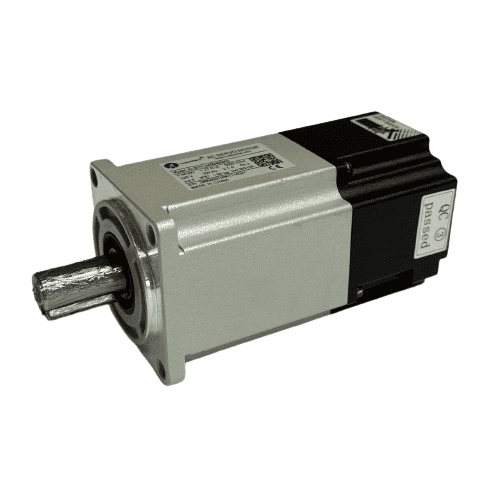

Leadshine ELM1H-0400MA60E AC servo motor with brake.
The ELM1H-0400MA60E has 23bit magnetic encoder.
Frame size 60 mm.
Rated power 400 W.
Rated voltage 230 VAC.
Torque rated (peak) 1.27 (3.81) Nm.
Speed rated (peak) 3000 (5000) rpm.
Current rated (peak) 2.1 (6.5) A.
Weight 1.55 kg.

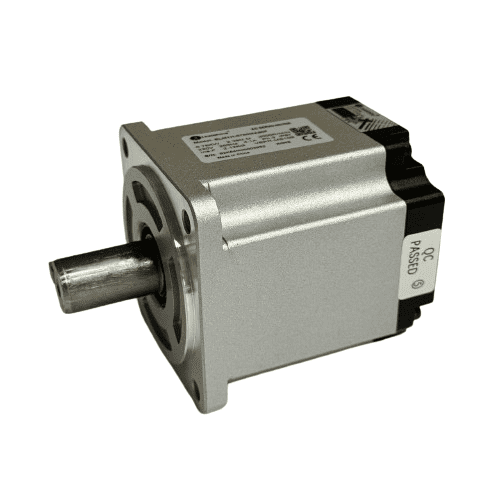

Leadshine ELM1H-0750MA80F AC servo motor.
The ELM1H-0750MA80F has 23bit magnetic encoder.
Frame size 80 mm.
Rated power 750 W.
Rated voltage 230 VAC.
Torque rated (peak) 2.39 (7.17) Nm.
Speed rated (peak) 3000 (5000) rpm.
Current rated (peak) 4.1 (13.4) A.
Weight 2.12 kg.

Hiwin FR-LS-40-2-B-6-06-A AC servo motor with brake.
The FR-LS-40-2-B-6-06-A has 17bit encoder.
Frame size 60 mm.
Rated power 400 W.
Rated voltage 230 VAC.
Torque rated (peak) 1.27 (3.81) Nm.
Speed rated (peak) 3000 (4500) rpm.
Current rated (peak) 2.5 (7.5) A.
Weight 1.86 kg.

Hiwin FR-LS-40-2-B-6-06-D AC servo motor with brake.
The FR-LS-40-2-B-6-06-D has 17bit encoder.
Frame size 60 mm.
Rated power 400 W.
Rated voltage 230 VAC.
Torque rated (peak) 1.27 (3.81) Nm.
Speed rated (peak) 3000 (4500) rpm.
Current rated (peak) 2.5 (7.5) A.
Weight 1.86 kg.

Hiwin HVE13IAB05MB incremental encoder cable for servo systems.
HVE13IAB05MB is for FR series motors and D2T series drivers.
Hiwin HVE13IAB05MB is for connect an incremental servo motor encoder.
5.0 meters (16.4 foots) long.

Hiwin HVE17IAB10MB incremental encoder cable for servo systems.
HVE17IAB10MB is for FR series motors and D2T series drivers.
Hiwin HVE17IAB10MB is for connect an incremental servo motor encoder.
10.0 meters (32.8 foots) long.

Hiwin HVPS06AA05MB power cable for servo systems.
HVPS06AA05MB is for FR series motors with Brake and D2T series drivers.
5.0 meters (16.4 foots) long.

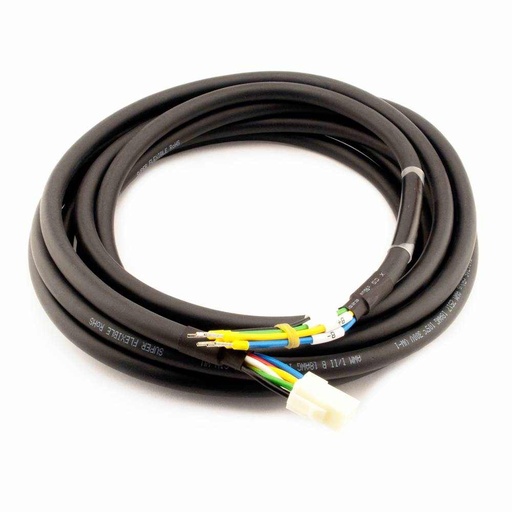

Hiwin HVPS06AA10MB power cable for servo systems.
HVPS06AA10MB is for FR series motors with Brake and D2T series drivers.
10.0 meters (32.8 foots) long.
