SCS10UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SMA10GUU (Nippon bearing)

Inner Diameter: 10 mm
Highth (F): 26 mm.
Width (W): 40 mm.
Length (L): 35 mm.
Clamping bolts (S): M5.

SCS12LUU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SMA12GWUU (Nippon bearing)

Inner Diameter: 12 mm
Highth (F): 28 mm.
Width (W): 42 mm.
Length (L): 70 mm.
Clamping bolts (S1): M5.

SCS12UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SMA12GUU (Nippon bearing)

Inner Diameter: 12 mm
Highth (F): 28 mm.
Width (W): 42 mm.
Length (L): 36 mm.
Clamping bolts (S): M5.

SCS13LUU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SMA13GWUU (Nippon bearing)

Inner Diameter: 13 mm
Highth (F): 30 mm.
Width (W): 44 mm.
Length (L): 75 mm.
Clamping bolts (S1): M5.

SCS13UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SMA13GUU (Nippon bearing)

Inner Diameter: 13 mm
Highth (F): 30 mm.
Width (W): 44 mm.
Length (L): 39 mm.
Clamping bolts (S): M5.

SCS16LUU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SMA16GWUU (Nippon bearing)

Inner Diameter: 16 mm
Highth (F): 38,5 mm.
Width (W): 50 mm.
Length (L): 85 mm.
Clamping bolts (S1): M5.

SCS16UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SMA16GUU (Nippon bearing)

Inner Diameter: 16 mm
Highth (F): 38,5 mm.
Width (W): 50 mm.
Length (L): 44 mm.
Clamping bolts (S1): M5.

SCS20LUU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SMA20GWUU (Nippon bearing)

Inner Diameter: 20 mm
Highth (F): 41 mm.
Width (W): 54 mm.
Length (L): 96 mm.
Clamping bolts (S1): M6.

SCS20UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SMA20GUU (Nippon bearing)

Inner Diameter: 20 mm
Highth (F): 41 mm.
Width (W): 54 mm.
Length (L): 50 mm.
Clamping bolts (S1): M6.

SCS25LUU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SMA25GWUU (Nippon bearing)

Inner Diameter: 25 mm
Highth (F): 51,5 mm.
Width (W): 76 mm.
Length (L): 130 mm.
Clamping bolts (S1): M8.

SCS25UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SMA25GUU (Nippon bearing)

Inner Diameter: 25 mm
Highth (F): 51,5 mm.
Width (W): 76 mm.
Length (L): 67 mm.
Clamping bolts (S1): M8.

SCS30LUU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SMA30GWUU (Nippon bearing)

Inner Diameter: 30 mm
Highth (F): 59,5 mm.
Width (W): 78 mm.
Length (L): 140 mm.
Clamping bolts (S1): M8.

SCS30UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SMA30GUU (Nippon bearing)

Inner Diameter: 30 mm
Highth (F): 59,5 mm.
Width (W): 78 mm.
Length (L): 72 mm.
Clamping bolts (S1): M8.

SCS35LUU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SMA35GWUU (Nippon bearing)

Inner Diameter: 35 mm
Highth (F): 68 mm.
Width (W): 80 mm.
Length (L): 155 mm.
Clamping bolts (S1): M8.

SCS35UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SMA35GUU (Nippon bearing)

Inner Diameter: 35 mm
Highth (F): 68 mm.
Width (W): 80 mm.
Length (L): 80 mm.
Clamping bolts (S1): M8.

SCS40LUU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SMA40GWUU (Nippon bearing)

Inner Diameter: 40 mm
Highth (F): 78 mm.
Width (W): 175 mm.
Length (L): 90 mm.
Clamping bolts (S1): M10.

SCS40UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SMA40GUU (Nippon bearing)

Inner Diameter: 40 mm
Highth (F): 78 mm.
Width (W): 90 mm.
Length (L): 102 mm.
Clamping bolts (S1): M10.

SCS50LUU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SMA50GWUU (Nippon bearing)

Inner Diameter: 50 mm
Highth (F): 102 mm.
Width (W): 122 mm.
Length (L): 215 mm.
Clamping bolts (S1): M10.

SCS50UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SMA50GUU (Nippon bearing)

Inner Diameter: 50 mm
Highth (F): 102 mm.
Width (W): 122 mm.
Length (L): 110 mm.
Clamping bolts (S1): M10.

SCS60LUU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SMA60GWUU (Nippon bearing)

Inner Diameter: 60 mm
Highth (F): 114 mm.
Width (W): 132 mm.
Length (L): 240 mm.
Clamping bolts (S1): M10.

SCS60UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SMA60GUU (Nippon bearing)

Inner Diameter: 60 mm
Highth (F): 114 mm.
Width (W): 132 mm.
Length (L): 122 mm.
Clamping bolts (S1): M10.

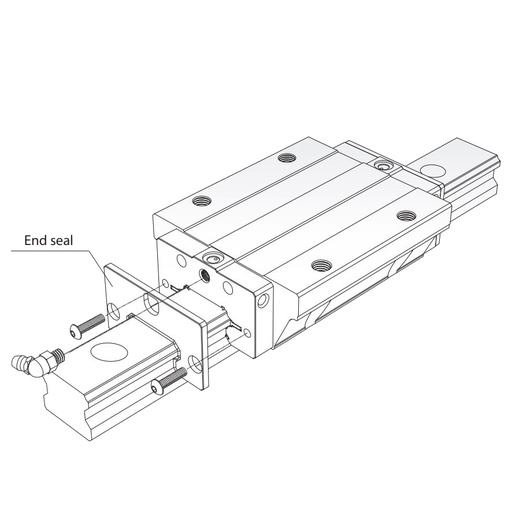

Double bidirectional End seal + Bottom seal

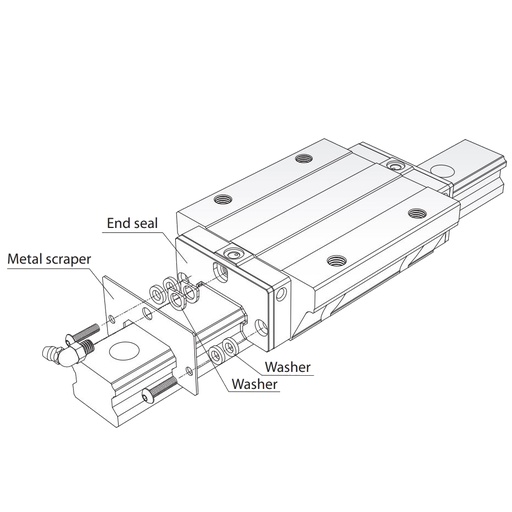

Double bidirectional End seal + Bottom seal + Scraper

SL lubricator unit is designed with an oil reservoir which equipped with a high-density fiber net.

Bidirectional End seal + Bottom seal + Scraper

Double bidirectional End seal + Bottom seal

Double bidirectional End seal + Bottom seal + Scraper

SL lubricator unit is designed with an oil reservoir which equipped with a high-density fiber net.

Bidirectional End seal + Bottom seal + Scraper
