Stepper systems

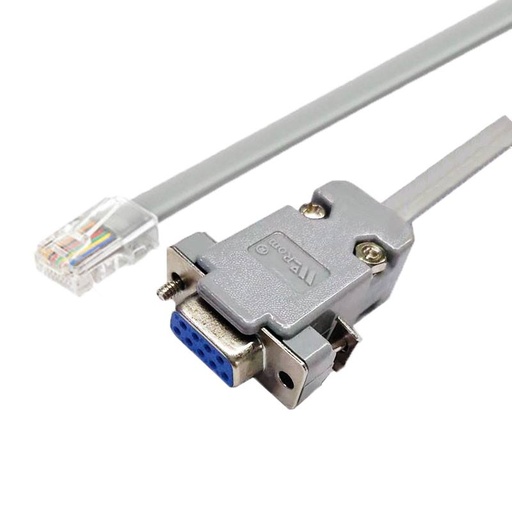

Leadshine CABLE-PC cable for tuning stepper systems.
CABLE-PC cable for communication cable to DM/EM series stepper drivers.
RS232.
1.2 meters (3.9 foots) long.

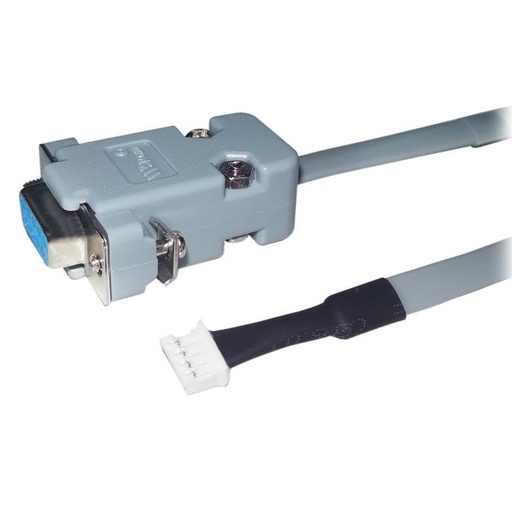

Leadshine CABLE-PC-1 cable for tuning stepper and servo systems.
RS232.
1.2 meters (3.9 foots) long.

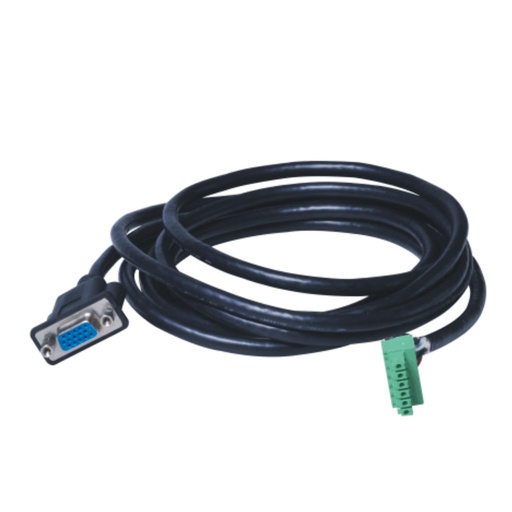

Leadshine CABLEH-BM10M0 encoder cable for CS-M/CS-D series closed loop stepper systems.
10.0 meters (32.8 foots) long.

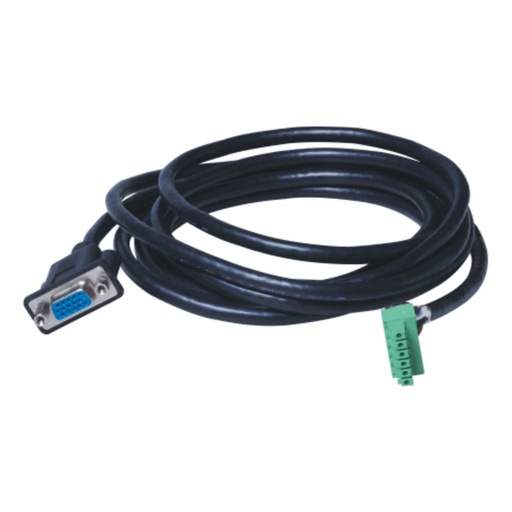

Leadshine CABLEH-BM3M0 encoder cable for CS-M/CS-D series closed loop stepper systems.
3.0 meters (9.8 foots) long.

Leadshine CABLEH-RZ10M0 power cable for CS-M/CS-D series closed loop stepper systems.
10.0 meters (32.8 foots) long.

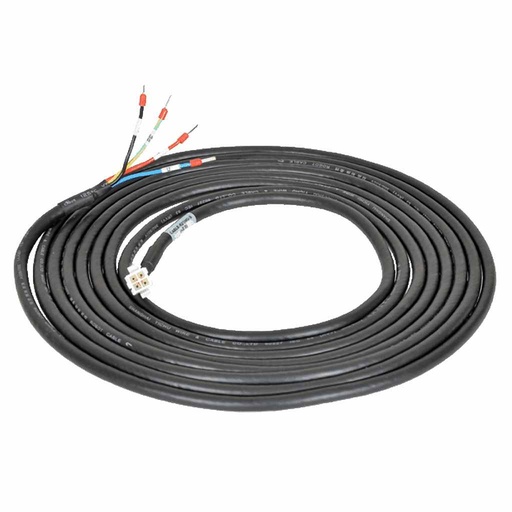

Leadshine CABLEH-RZ3M0 power cable for CS-M/CS-D series closed loop stepper systems.
3.0 meters (9.8 foots) long.

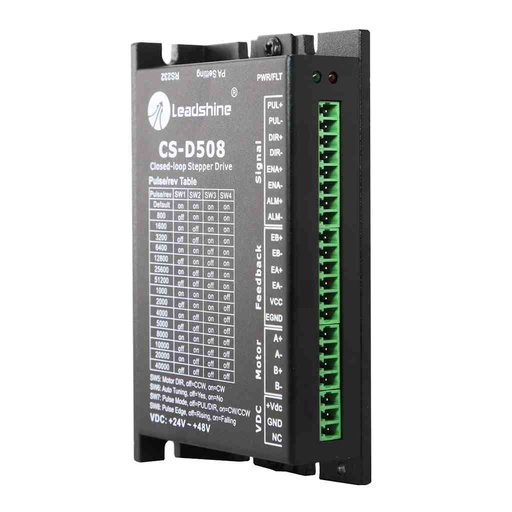

Leadshine CS-D508 closed loop stepper driver.
Input voltage of 20 - 50 VDC.
Output current of 0.50 - 8.00 A.
CS-D508 takes step & direction (PUL/DIR) or CW/CCW control modes. Closed loop stepper driver Leadshine CS-D508 is easy to setup and configure via DIP switches.

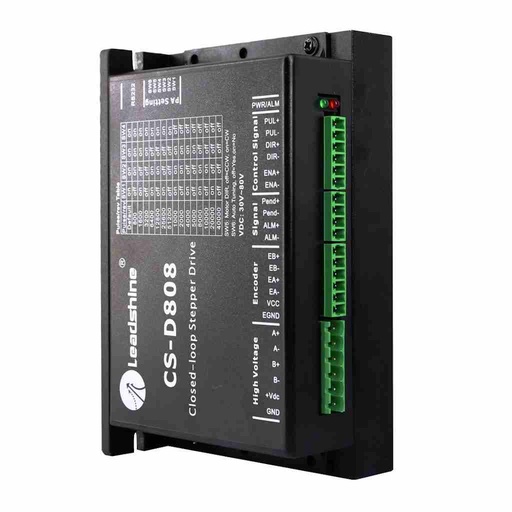

Leadshine CS-D808 closed loop stepper driver.
Input voltage of 20 - 80 VDC.
Output current of 0.50 - 8.00 A.
CS-D808 takes step & direction (PUL/DIR) or CW/CCW control modes. Closed loop stepper driver Leadshine CS-D808 is easy to setup and configure via DIP switches.

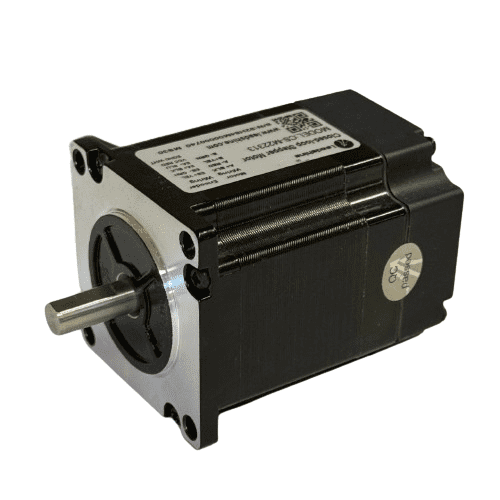

Leadshine CS-M22313 NEMA 23 closed loop stepper motor.
Holding torque 1.3 Nm.
Current 4.00 A.
75 mm (2.95 inch) long.
8 mm (0.315 inch) shaft size.
Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder.

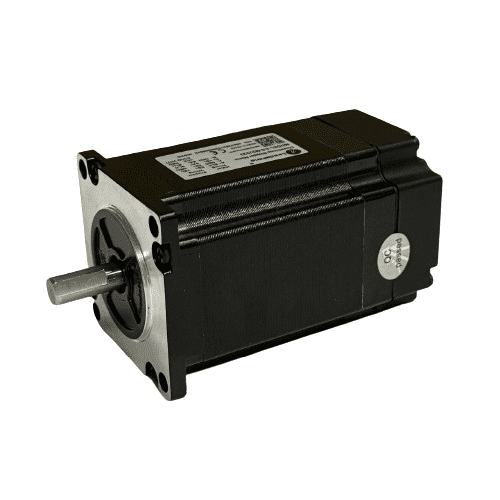

Leadshine CS-M22323 NEMA 23 closed loop stepper motor.
Holding torque 2.3 Nm.
Current 5.00 A.
96 mm (3.78 inch) long.
8 mm (0.315 inch) shaft size.
Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder.

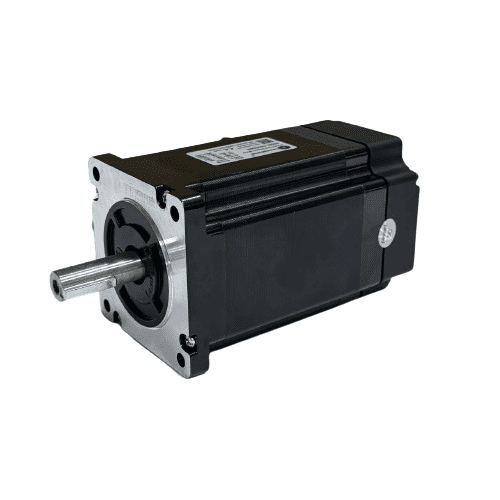

Leadshine CS-M23485 NEMA 34 closed loop stepper motor.
Holding torque 8.5 Nm.
Current 6.00 A.
147 mm (5.79 inch) long.
14 mm (0.551 inch) shaft size.
Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder.

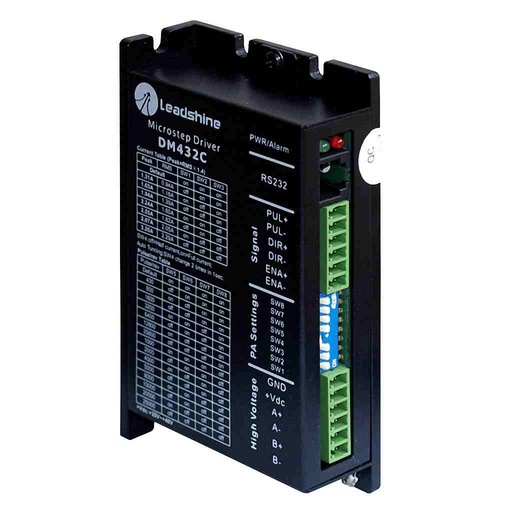

Leadshine DM432C stepper driver.
Input voltage of 18 - 40 VDC.
Output current of 0.10 - 3.20 A.
DM432C takes step & direction (PUL/DIR) or CW/CCW control. Stepper driver Leadshine DM432C is easy to setup and configure via DIP switches.

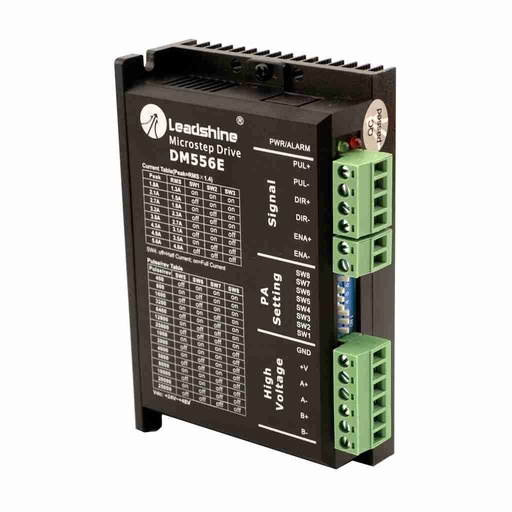

Leadshine DM556E stepper driver.
Input voltage of 18 - 50 VDC.
Output current of 1.80 - 5.60 A.
DM556E takes step & direction (PUL/DIR) control. Stepper driver Leadshine DM556E is easy to setup and configure via DIP switches.

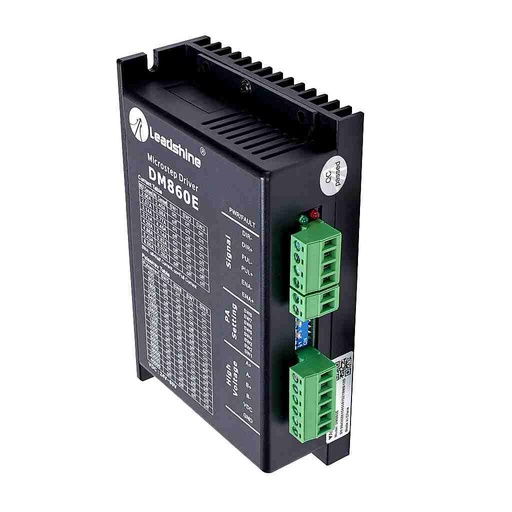

Leadshine DM860E. 2-phase and 4-phase stepper driver.
Input voltage of 24 - 74 VDC.
Output current of 2.40 - 7.20 A.
DM860E takes step & direction (PUL/DIR) or CW/CCW control. Stepper driver Leadshine DM860E is easy to setup and configure via DIP switches.

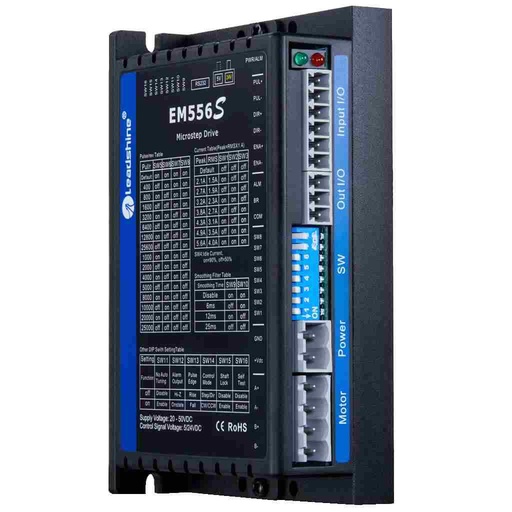

Leadshine EM556S stepper driver.
Input voltage of 20 - 50 VDC.
Output current of 0.50 - 5.60 A.
EM556S takes step & direction (PUL/DIR) or CW/CCW control. Stepper driver Leadshine EM556S is easy to setup and configure via DIP switches.

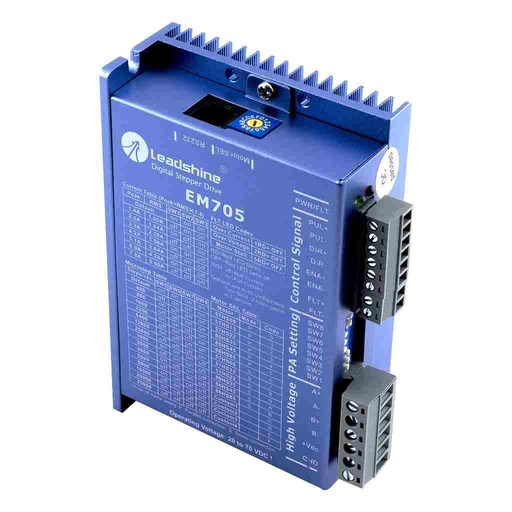

Leadshine EM705 stepper driver.
Input voltage of 20 - 70 VDC.
Output current of 0.50 - 7.00 A.
EM705 takes step & direction (PUL/DIR) or CW/CCW control. Stepper driver Leadshine EM705 is easy to setup and configure via DIP switches.

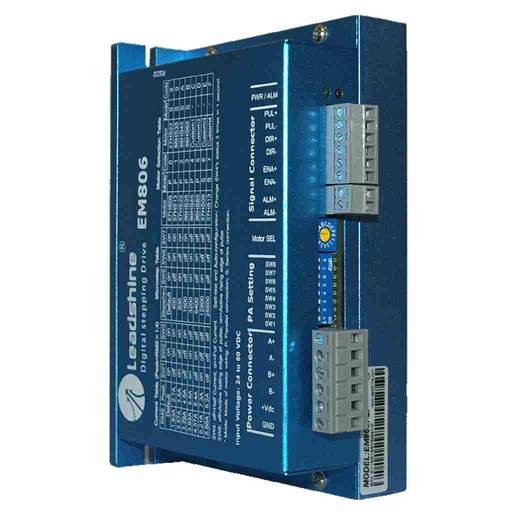

Leadshine EM806 stepper driver.
Input voltage of 24 - 80 VDC.
Output current of 0.50 - 8.20 A.
EM806 takes step & direction (PUL/DIR) or CW/CCW control. Stepper driver Leadshine EM806 is easy to setup and configure via DIP switches.

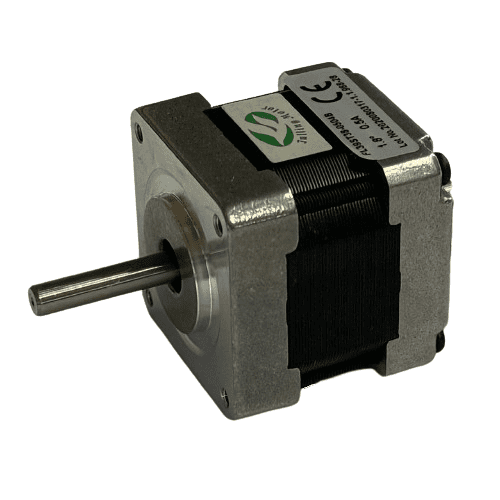

Fulling Motor FL39ST38-0504B-5 NEMA 16 stepper motor.
Holding torque 0.29 Nm.
Current 0.50 A.
38 mm (1.5 inch) long.
5 mm (0.197 inch) shaft size.

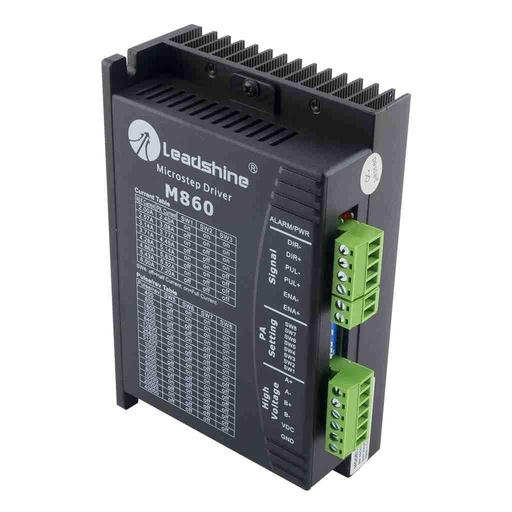

Leadshine M860 stepper driver.
Input voltage of 24 - 80 VDC.
Output current of 1.80 - 7.20 A.
M860 takes step & direction (PUL/DIR) or CW/CCW control. Stepper driver Leadshine M860 is easy to setup and configure via DIP switches.
