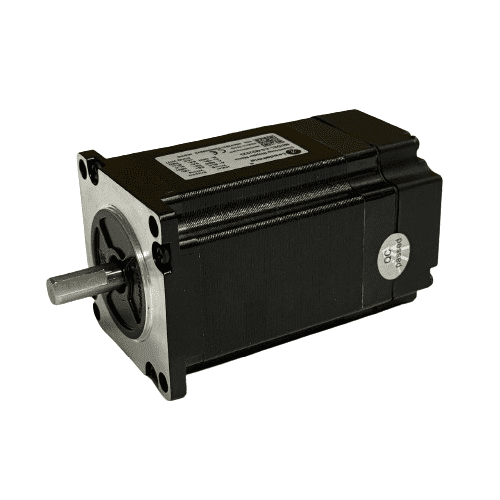

Leadshine CS-M22323 NEMA 23 closed loop stepper motor.
Holding torque 2.3 Nm.
Current 5.00 A.
96 mm (3.78 inch) long.
8 mm (0.315 inch) shaft size.
Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder.

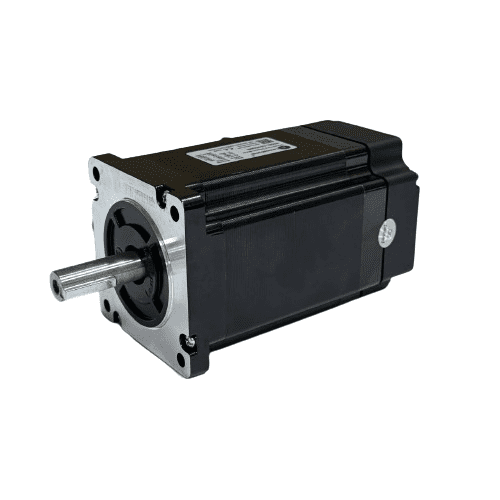

Leadshine CS-M23485 NEMA 34 closed loop stepper motor.
Holding torque 8.5 Nm.
Current 6.00 A.
147 mm (5.79 inch) long.
14 mm (0.551 inch) shaft size.
Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder.

Deep groove ball bearing, radial contact, pressed steel cage, spherical outer diameter, contact seals on both sides.
Product analogs:
SNR 6205SEE
SKF 1726205-2RS1
INA 205-XL-NPP-B

Deep groove ball bearing, radial contact, pressed steel cage, spherical outer diameter, contact seals on both sides.
Product analogs:
SNR 6206SEE
SKF 1726206-2RS1
INA 206-XL-NPP-B

Deep groove ball bearing, radial contact, pressed steel cage, spherical outer diameter, contact seals on both sides.
Product analogs:
SNR 6207SEE
SKF 1726207-2RS1
INA 207-XL-NPP-B

Deep groove ball bearing, radial contact, pressed steel cage, spherical outer diameter, contact seals on both sides.
Product analogs:
SNR 6208SEE
SKF 1726208-2RS1
INA 208-XL-NPP-B

Deep groove ball bearing, radial contact, pressed steel cage, spherical outer diameter, contact seals on both sides.
Product analogs:
SNR 6209SEE
SKF 1726209-2RS1
INA 209-XL-NPP-B

Deep groove ball bearing, radial contact, pressed steel cage, spherical outer diameter, contact seals on both sides.
Product analogs:
SNR 6210SEE
SKF 1726210-2RS1
INA 210-XL-NPP-B

Deep groove ball bearing, radial contact, pressed steel cage, spherical outer diameter, contact seals on both sides.
Product analogs:
SNR 6308SEE
SKF 1726308-2RS1

Deep groove ball bearing, radial contact, pressed steel cage, spherical outer diameter, contact seals on both sides.
Product analogs:
SNR 6309SEE
SKF 1726309-2RS1

Kinco CV100-2S-0022G frequency converter.
Rated power 2.2 kW.
Input voltage 230 VAC.
Current rated (peak) 10 (18) A.
Output Frequency 0 Hz...300 Hz.
Communication protocol: Modbus RTU.
Control: Vector, Scalar.
User-configurable I/O: 5 DI, 2 DO, 2 AI and 1 AO.

Assembly plug for ball transfer units with fatening element ball diameter 30mm bore 30mm

Ball transfer unit CY-30:

Cross References
65433030 (MADLER)
530013 (ALWAYSE)

• Body Material: Galvanized sheet steel
(provides corrosion resistance and mechanical strength)
• Main (support) ball diameter: 30 mm
• Ball Material: Can be made of steel G200
• Load Capacity: Typically ranges from 85 kg per unit
• Application: Allows easy movement of goods in any direction

Tolerance ring 47x12mm for ball transfer unit CY-30.

Hiwin D2T-0423-S-B4 servo driver.
Rated power 400 W.
Input voltage 230 VAC.
Current rated (peak) 2.5 (3.7) A
D2T-0423-S-B4 takes Pulse+Direction control modes.
User-configurable I/O: 9 DI, 4 DO and 1 AI.

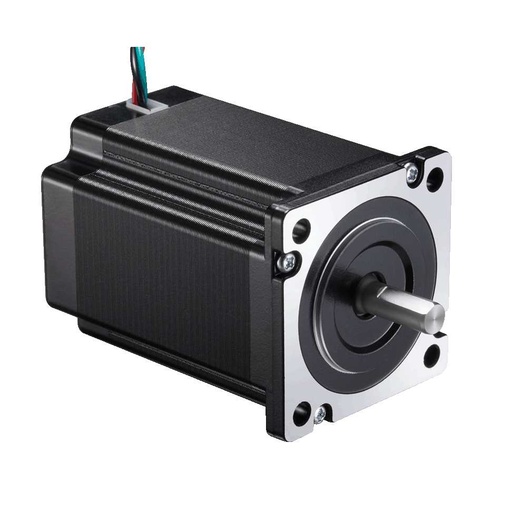

Leadshine D57CM31-4A NEMA 23 stepper motor.
Holding torque 3.1 Nm.
Current 4 A.
88 mm (3.46 inch) long.
8 mm (0.315 inch) shaft size.

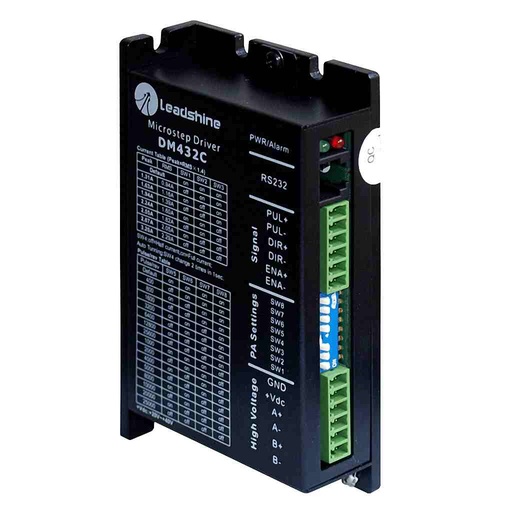

Leadshine DM432C stepper driver.
Input voltage of 18 - 40 VDC.
Output current of 0.10 - 3.20 A.
DM432C takes step & direction (PUL/DIR) or CW/CCW control. Stepper driver Leadshine DM432C is easy to setup and configure via DIP switches.

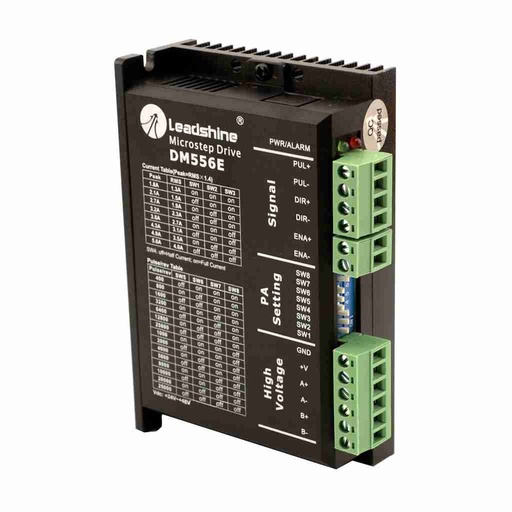

Leadshine DM556E stepper driver.
Input voltage of 18 - 50 VDC.
Output current of 1.80 - 5.60 A.
DM556E takes step & direction (PUL/DIR) control. Stepper driver Leadshine DM556E is easy to setup and configure via DIP switches.

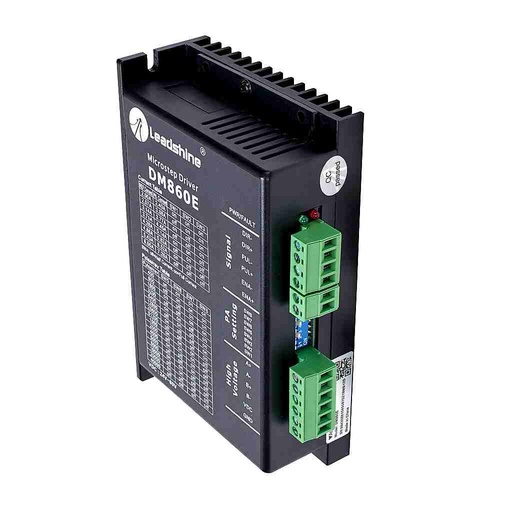

Leadshine DM860E. 2-phase and 4-phase stepper driver.
Input voltage of 24 - 74 VDC.
Output current of 2.40 - 7.20 A.
DM860E takes step & direction (PUL/DIR) or CW/CCW control. Stepper driver Leadshine DM860E is easy to setup and configure via DIP switches.

Hiwin ED2S-V0-003-1-C-00 servo driver.
Rated power 500 W.
Input voltage 230 VAC.
Current rated (peak) 3.0 (12.0) A
ED2S-V0-003-1-C-00 takes Pulse+Direction control modes.
User-configurable I/O: 9 DI, 5 DO, 1 AI and 2 AO.

The EF10-FF10/E10 ball screw end machining is used for EF10-C5 and FF10-C5 floating bearing supports.
This processing is performed on rolled shafts R15-05, R16-10.
Turning is carried out on high-precision CNC machines using the technology of the manufacturer approved by HIWIN.

The EF15-FF15/E10 ball screw end machining is used for EF15-C5 and FF15-C5 floating bearing supports.
This processing is performed on rolled shafts R20-05.
Turning is carried out on high-precision CNC machines using the technology of the manufacturer approved by HIWIN.

The EF20-FF20/E10 ball screw end machining is used for EF20-C5 and FF20-C5 floating bearing supports.
This processing is performed on rolled shafts R25-05, R25-10, R25-25.
Turning is carried out on high-precision CNC machines using the technology of the manufacturer approved by HIWIN.

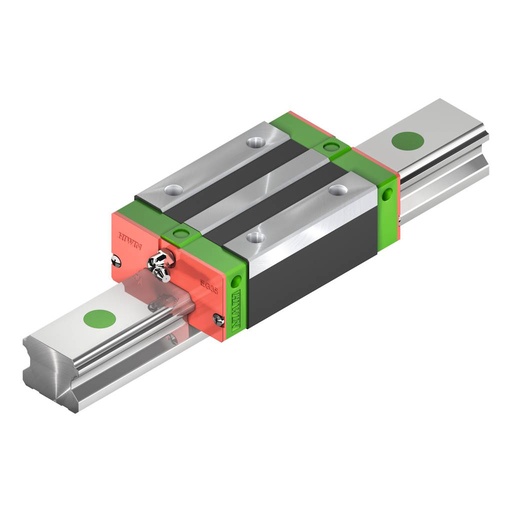

Block EGH15-SA-Z0-H is used in conjunction with the EGR15R4000H profile rail.
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies.
Application: automatic equipment, high speed transfer device, semiconductor
equipment, wood cutting machine, precision measure equipment.

Block EGH20-CA-Z0-H is used in conjunction with the EGR20R4000H profile rail.
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies.
Application: automatic equipment, high speed transfer device, semiconductor
equipment, wood cutting machine, precision measure equipment.

Block EGH25-CA-Z0-H is used in conjunction with the EGR25R4000H profile rail.
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies.
Application: automatic equipment, high speed transfer device, semiconductor
equipment, wood cutting machine, precision measure equipment.

Block EGH30-CA-Z0-H is used in conjunction with the EGR30R4000H profile rail.
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies.
Application: automatic equipment, high speed transfer device, semiconductor
equipment, wood cutting machine, precision measure equipment.

Block EGH30-SA-Z0-H is used in conjunction with the EGR30R4000H profile rail.
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies.
Application: automatic equipment, high speed transfer device, semiconductor
equipment, wood cutting machine, precision measure equipment.
