The FK30/E8 ball screw end machining is used for FK30-C5 floating bearing supports.
This processing is performed on rolled shafts R40-05, R40-10.
Turning is carried out on high-precision CNC machines using the technology of the manufacturer approved by HIWIN.

The FK30/E81 ball screw end machining is used for FK30-C5 floating bearing supports.
This processing is performed on rolled shafts R40-05, R40-10.
Turning is carried out on high-precision CNC machines using the technology of the manufacturer approved by HIWIN.

Fulling Motor FL39ST38-0504B-5 NEMA 16 stepper motor.
Holding torque 0.29 Nm.
Current 0.50 A.
38 mm (1.5 inch) long.
5 mm (0.197 inch) shaft size.

Hiwin FR-LS-40-2-B-6-06-A AC servo motor with brake.
The FR-LS-40-2-B-6-06-A has 17bit encoder.
Frame size 60 mm.
Rated power 400 W.
Rated voltage 230 VAC.
Torque rated (peak) 1.27 (3.81) Nm.
Speed rated (peak) 3000 (4500) rpm.
Current rated (peak) 2.5 (7.5) A.
Weight 1.86 kg.

Hiwin FR-LS-40-2-B-6-06-D AC servo motor with brake.
The FR-LS-40-2-B-6-06-D has 17bit encoder.
Frame size 60 mm.
Rated power 400 W.
Rated voltage 230 VAC.
Torque rated (peak) 1.27 (3.81) Nm.
Speed rated (peak) 3000 (4500) rpm.
Current rated (peak) 2.5 (7.5) A.
Weight 1.86 kg.

Kinco FV20-2S-0022G frequency converter.
Rated power 2.2 kW.
Input voltage 230 VAC.
Current rated (peak) 10 (18) A.
Output Frequency 0 Hz...300 Hz.
Communication protocol: Modbus RTU.
Control: Vector, Scalar.
User-configurable I/O: 6 DI, 3 DO, 2 AI and 2 AO.

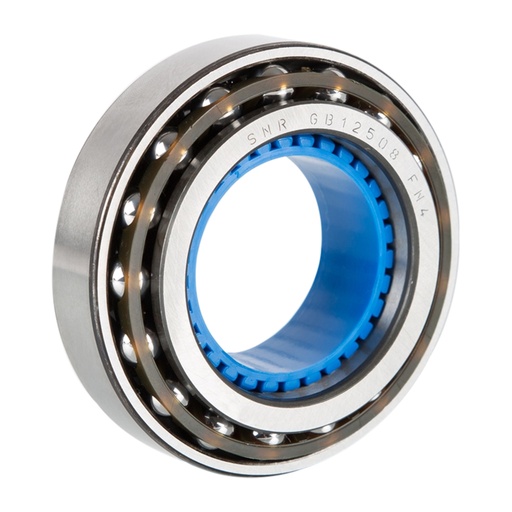

Double row angular contact ball bearing, polyamide cage, open.
Product analogs:
81104577.KUHN, JF2085627X, JF812085627X, JFStoll2085627X, JFStoll812085627X

Grease nipple kit GNZ-05-BOX
A set of nipples for lubrication of carriages size 15.

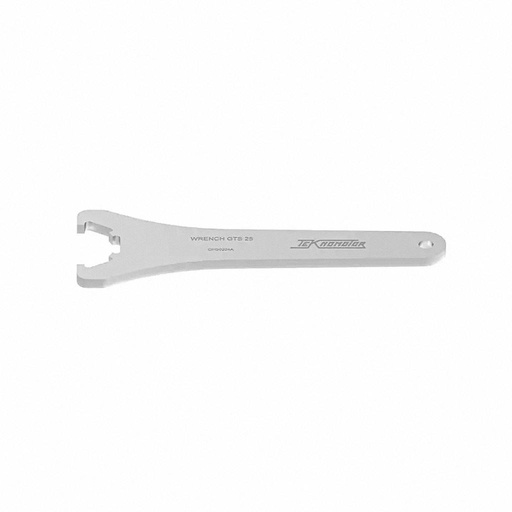

The wrenches GTS25 are designed to screw and unscrew the nuts GTS25.

The double end seal allows the use of HIWIN linear guides in dirty and dusty environment. The double seal effectively prevents debris from entering the carriage. Designation of the seal HG15-DD-KIT: HG15 – seal for the HG series profile rail guide size 15 (high load capacity rolling guide with ball rolling elements); DD – for carriages with double end seal; KIT – fastening elements kit (for both ends).

Lubrication cartridge reduces costs by reducing lubricant consumption and increasing inter-service intervals, therefore the service life of the guide increases. The cartridge can be filled with any appropriate grease depending on the required operating conditions and does not require specific maintenance. The cartridge can be removed or installed on a carriage already mounted on the guide and can be used regardless of the installation dimensions. Designation of the cartridge HG15-E2-KIT-SS: HG15 – cartridge for the HG series profile rail guide size 15 (high load capacity rolling guide with ball rolling elements); E2 – lubrication cartridge; KIT – fastening elements kit; SS – carriage with standard mechanical end-seal

Double end seal with scraper allows the use of HIWIN linear guides in dirty and dusty environment including hot chips and abrasive particles. The scraper protects the end seals and prevents their damage. Designation of the seal HG15-KK-KIT: HG15 – seal for the HG series profile rail guide size 15 (high load capacity rolling guide with ball rolling elements); KK – for carriages with double end seal and scraper; KIT – fastening elements kit (for both ends).

End seal with double sealing lip, improved bottom seal and additional top seal. Allows the use of HIWIN linear guides in extremely dirty and dusty environment. Sealing system provides optimal protection against the dirt, dust and liquids. The end seal is resistant to oil, grease and wear. An additional top seal protects from debris entering through the top the guide. An improved bottom seal protects the side-walls of the guide from debris. Designation of the seal HG15-SW-KIT-C: HG15 – seal for the HG series profile rail guide size 15 (high load capacity rolling guide with ball rolling elements); SW – carriage with end seal with double sealing lip + bottom seal + additional top seal; KIT – fastening elements kit (for both ends); C - kit for normal length carriage.

End seal with double sealing lip with scraper, improved bottom seal and additional top seal. Allows the use of HIWIN linear guides in extremely dirty and dusty environment. Sealing system provides optimal protection against the dirt, dust and liquids. The end seal is resistant to oil, grease and wear. An additional top seal protects from debris entering through the top the guide. An improved bottom seal protects the side-walls of the guide from debris. The imrpoved metal scraper protects against contamination particles > 0.2 mm and protects the end seal from damage. Designation of the seal HG15-ZW-KIT-C: HG15 – seal for the HG series profile rail guide size 15 (high load capacity rolling guide with ball rolling elements); ZW – carriage with end seal with double sealing lip + bottom seal + additional top seal + metal scraper; KIT – fastening elements kit (for both ends); C - kit for normal length carriage.

Metal scraper allows the use of HIWIN linear guides in dirty and dusty environment including hot chips and abrasive particles. The scraper protects the end seals and prevents their damage. Designation of the seal HG15-ZZ-KIT: HG15 – scraper for the HG series profile rail guide size 15 (high load capacity rolling guide with ball rolling elements); ZZ – carriage with metal scraper; KIT – fastening elements kit (for both ends).

The double end seal allows the use of HIWIN linear guides in dirty and dusty environment. The double seal effectively prevents debris from entering the carriage. Designation of the seal HG20-DD-KIT: HG20 – seal for the HG series profile rail guide size 25 (high load capacity rolling guide with ball rolling elements); DD – for carriages with double end seal; KIT – fastening elements kit (for both ends).

Lubrication cartridge reduces costs by reducing lubricant consumption and increasing inter-service intervals, therefore the service life of the guide increases. The cartridge can be filled with any appropriate grease depending on the required operating conditions and does not require specific maintenance. The cartridge can be removed or installed on a carriage already mounted on the guide and can be used regardless of the installation dimensions. Designation of the cartridge HG20-E2-KIT-SS: HG20 – cartridge for the HG series profile rail guide size 20 (high load capacity rolling guide with ball rolling elements); E2 – lubrication cartridge; KIT – fastening elements kit; SS – carriage with standard mechanical end-seal

Double end seal with scraper allows the use of HIWIN linear guides in dirty and dusty environment including hot chips and abrasive particles. The scraper protects the end seals and prevents their damage. Designation of the seal HG20-KK-KIT: HG20 – seal for the HG series profile rail guide size 20 (high load capacity rolling guide with ball rolling elements); KK – for carriages with double end seal and scraper; KIT – fastening elements kit (for both ends).

End seal with double sealing lip, improved bottom seal and additional top seal. Allows the use of HIWIN linear guides in extremely dirty and dusty environment. Sealing system provides optimal protection against the dirt, dust and liquids. The end seal is resistant to oil, grease and wear. An additional top seal protects from debris entering through the top the guide. An improved bottom seal protects the side-walls of the guide from debris. Designation of the seal HG20-SW-KIT-C: HG20 – seal for the HG series profile rail guide size 20 (high load capacity rolling guide with ball rolling elements); SW – carriage with end seal with double sealing lip + bottom seal + additional top seal; KIT – fastening elements kit (for both ends); C - kit for normal length carriage.

End seal with double sealing lip, improved bottom seal and additional top seal. Allows the use of HIWIN linear guides in extremely dirty and dusty environment. Sealing system provides optimal protection against the dirt, dust and liquids. The end seal is resistant to oil, grease and wear. An additional top seal protects from debris entering through the top the guide. An improved bottom seal protects the side-walls of the guide from debris. Designation of the seal HG20-SW-KIT-C: HG20 – seal for the HG series profile rail guide size 20 (high load capacity rolling guide with ball rolling elements); SW – carriage with end seal with double sealing lip + bottom seal + additional top seal; KIT – fastening elements kit (for both ends); H - kit for elongated carriage.

End seal with double sealing lip with scraper, improved bottom seal and additional top seal. Allows the use of HIWIN linear guides in extremely dirty and dusty environment. Sealing system provides optimal protection against the dirt, dust and liquids. The end seal is resistant to oil, grease and wear. An additional top seal protects from debris entering through the top the guide. An improved bottom seal protects the side-walls of the guide from debris. The imrpoved metal scraper protects against contamination particles > 0.2 mm and protects the end seal from damage. Designation of the seal HG20-ZW-KIT-C: HG20 – seal for the HG series profile rail guide size 20 (high load capacity rolling guide with ball rolling elements); ZW – carriage with end seal with double sealing lip + bottom seal + additional top seal + metal scraper; KIT – fastening elements kit (for both ends); C - kit for normal length carriage.
