ST50UUB - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
ST50UUB (THK)

Inner Diameter (d): 50 mm.
Outer Diameter (D): 72 mm.
Length (L): 100 mm.

ST55UU - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
ST55UU (THK)

Inner Diameter (d): 55 mm.
Outer Diameter (D): 80 mm.
Length (L): 100 mm.

ST55UUB - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
ST55UUB (THK)

Inner Diameter (d): 55 mm.
Outer Diameter (D): 80 mm.
Length (L): 100 mm.

ST60UU - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
ST60UU (THK)

Inner Diameter (d): 60 mm.
Outer Diameter (D): 85 mm.
Length (L): 100 mm.

ST60UUB - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
ST60UUB (THK)

Inner Diameter (d): 60 mm.
Outer Diameter (D): 85 mm.
Length (L): 100 mm.

ST70UU - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
ST70UU (THK)

Inner Diameter (d): 70 mm.
Outer Diameter (D): 95 mm.
Length (L): 100 mm.

ST70UUB - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
ST70UUB (THK)

Inner Diameter (d): 70 mm.
Outer Diameter (D): 95 mm.
Length (L): 100 mm.

ST80UU - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
ST80UU (THK)

Inner Diameter (d): 80 mm.
Outer Diameter (D): 110 mm.
Length (L): 100 mm.

ST80UUB - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
ST80UUB (THK)

Inner Diameter (d): 80 mm.
Outer Diameter (D): 110 mm.
Length (L): 100 mm.

ST90UU - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
ST90UU (THK)

Inner Diameter (d): 90 mm.
Outer Diameter (D): 120 mm.
Length (L): 100 mm.

ST90UUB - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
ST90UUB (THK)

Inner Diameter (d): 90 mm.
Outer Diameter (D): 120 mm.
Length (L): 100 mm.

TBR shafts have a similar design to SBR, but their aluminum support is reinforced and more massive, significantly increasing the load-bearing capacity of the system. This robust support provides greater rigidity and resistance to heavy loads, making TBR shafts suitable for demanding industrial equipment and machines where high strength and minimal deflection are required.

Cross References:
R1010 016 00 (Rexroth)
TSWW16 (INA)

Diameter: 16 mm.
Length: 6000 mm.
Tolerance: h6.
Material: C45.

TBR16LUU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Inner Diameter: 16 mm
Highth (G): 26 mm.
Width (W): 62 mm.
Length (M): 85 mm.
Clamping bolts (S1): M5.

TBR16UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
TBR16UU (SAMICK)
SWD16GUU (Nippon bearing)

Inner Diameter: 16 mm
Highth (G): 26 mm.
Width (W): 62 mm.
Length (M): 42 mm.
Clamping bolts (S1): M5.

TBR shafts have a similar design to SBR, but their aluminum support is reinforced and more massive, significantly increasing the load-bearing capacity of the system. This robust support provides greater rigidity and resistance to heavy loads, making TBR shafts suitable for demanding industrial equipment and machines where high strength and minimal deflection are required.

Cross References:
R1010 020 00 (Rexroth)
TSWW20 (INA)

Diameter: 20 mm.
Length: 6000 mm.
Tolerance: h6.
Material: C45.

TBR20LUU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Inner Diameter: 20 mm
Highth (G): 31 mm.
Width (W): 68 mm.
Length (M): 96 mm.
Clamping bolts (S1): M6.

TBR20UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
TBR20UU (SAMICK)
SWD20GUU (Nippon bearing)

Inner Diameter: 20 mm
Highth (G): 31 mm.
Width (W): 68 mm.
Length (M): 51 mm.
Clamping bolts (S1): M6.

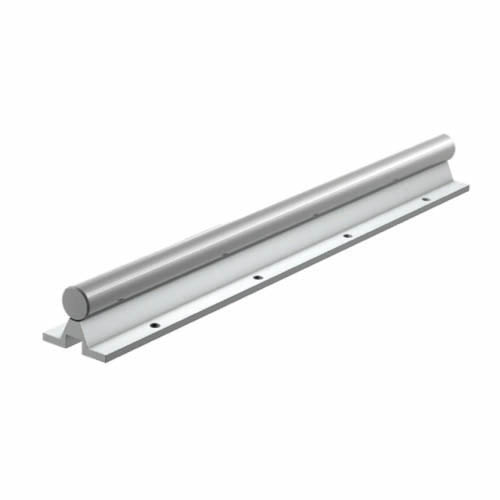

TBR shafts have a similar design to SBR, but their aluminum support is reinforced and more massive, significantly increasing the load-bearing capacity of the system. This robust support provides greater rigidity and resistance to heavy loads, making TBR shafts suitable for demanding industrial equipment and machines where high strength and minimal deflection are required.

Cross References:
R1010 025 00 (Rexroth)
TSWW25 (INA)

Diameter: 25 mm.
Length: 6000 mm.
Tolerance: h6.
Material: C45.

TBR25LUU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Inner Diameter: 25 mm
Highth (G): 41 mm.
Width (W): 82 mm.
Length (M): 130 mm.
Clamping bolts (S1): M8.

TBR25UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
TBR25UU (SAMICK)

Inner Diameter: 25 mm
Highth (G): 41 mm.
Width (W): 82 mm.
Length (M): 65 mm.
Clamping bolts (S1): M8.

TBR shafts have a similar design to SBR, but their aluminum support is reinforced and more massive, significantly increasing the load-bearing capacity of the system. This robust support provides greater rigidity and resistance to heavy loads, making TBR shafts suitable for demanding industrial equipment and machines where high strength and minimal deflection are required.

Cross References:
R1010 030 00 (Rexroth)
TSWW30 (INA)

Diameter: 30 mm.
Length: 5900 mm.
Tolerance: h6.
Material: C45.

TBR30LUU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Inner Diameter: 30 mm
Highth (G): 48 mm.
Width (W): 91 mm.
Length (M): 140 mm.
Clamping bolts (S1): M8.

TBR30UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
TBR30UU (SAMICK)

Inner Diameter: 30 mm
Highth (G): 48 mm.
Width (W): 91 mm.
Length (M): 75 mm.
Clamping bolts (S1): M8.

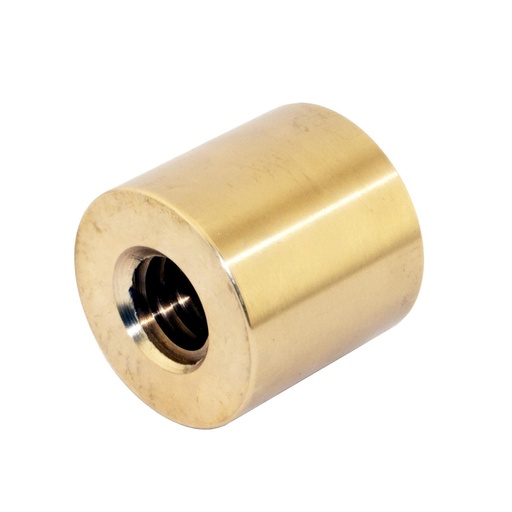

Tr10x2 HBD Right hand bronze trapezoidal cylindrical nut.
Manufactured in accordance with ISO DIN 103, tolerance 7H.
We can produce special nuts according to customers drawings in different materials.

Tr10x2 LRM Right hand bronze trapezoidal cylindrical nut.
Manufactured in accordance with ISO DIN 103, tolerance 7H.
We can produce special nuts according to customers drawings in different materials.

Tr12x3 Precision rolled screw trapezoidal thread in steel C15-1.1141.
Manufactured in accordance with ISO DIN 103, 7e tolerance (0,2/300mm).
We can produce screw according to customers drawings.

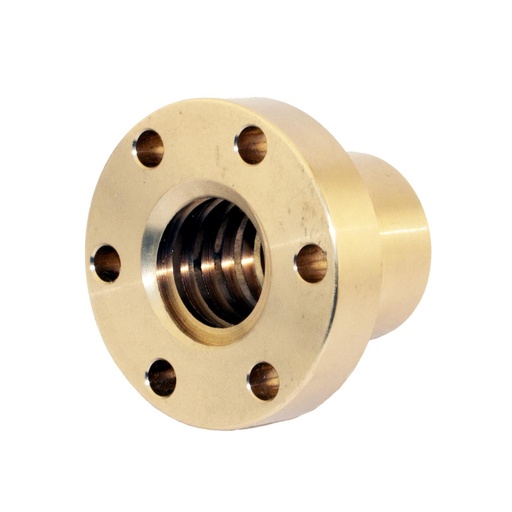

Tr12x3 EFM Right hand bronze trapezoidal flange nut.
Manufactured in accordance with ISO DIN 103, tolerance 7H.
We can produce special nuts according to customers drawings in different materials.

Tr12x3 FEU Right hand bronze trapezoidal flange nut.
Manufactured in accordance with ISO DIN 103, tolerance 7H.
We can produce special nuts according to customers drawings in different materials.

Tr12x3 HBD Right hand bronze trapezoidal cylindrical nut.
Manufactured in accordance with ISO DIN 103, tolerance 7H.
We can produce special nuts according to customers drawings in different materials.

Tr12x3 LRM Right hand bronze trapezoidal cylindrical nut.
Manufactured in accordance with ISO DIN 103, tolerance 7H.
We can produce special nuts according to customers drawings in different materials.

Tr14x3 Precision rolled screw trapezoidal thread in steel C15-1.1141.
Manufactured in accordance with ISO DIN 103, 7e tolerance (0,2/300mm).
We can produce screw according to customers drawings.

Tr14x3 EFM Right hand bronze trapezoidal flange nut.
Manufactured in accordance with ISO DIN 103, tolerance 7H.
We can produce special nuts according to customers drawings in different materials.
