MSA65LS is a Long Narrow type of PMI linear guideway, can be installed from top side of carriage.

Cross References
HGH65HAZAH (HIWIN)
TRH65VENZ0 (TBI)
SBI65SLLNK2 (SBC)
R162361310 (Rexroth)
HSR65HRSSH (THK)
LLRHC65LUT1P3 (Ewellix)

The MSA S/LS represents a streamlined square-shaped carriage, offered in both standard (MSA-S) and extended (MSA-LS) lengths. Notably, mounting holes are exclusively positioned on the upper side. Specifically tailored for applications demanding both precision and robustness, the MSA Series caters to both regular and substantial load requirements.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

MSA65S is a narrow type of PMI linear guideway, can be installed from top side of carriage.

Cross References
HGH65CAZAH (HIWIN)
TRH65VNNZ0 (TBI)
SBI65SLK2 (SBC)
R162261310 (Rexroth)
HSR65CRSSC1H(THK)
LLRHC65UT1P3 (Ewellix)

The MSA S/LS represents a streamlined square-shaped carriage, offered in both standard (MSA-S) and extended (MSA-LS) lengths. Notably, mounting holes are exclusively positioned on the upper side. Specifically tailored for applications demanding both precision and robustness, the MSA Series caters to both regular and substantial load requirements.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

The MSB35 linear guide from PMI with High (H) and Normat (N) accuracy grade offers a compact profile with excellent rigidity and smooth motion, making it ideal for a wide range of industrial automation, precision machinery, and equipment requiring stable linear movement in limited spaces.

These profile rails are applicable to both MSB and SMB series linear guides from PMI.

MSB-series applications
Machine Center
NC Lathe
XYZ Axes of Heavy Cutting Machine Tools
Grinding Machine Working Table
Feed Shaft of Milling Machine
Vertical or Horizontal Boring Machine
Z Axis of Boring Machine and Machine Tools
Auto Coating Machine
Industrial Robot
Various High Speed Material Supply Device
Z Axis of Industiral Machine
Binding Machine
EDM
Measuring Equipment
Precision XY Table

Double bidirectional End seal + Bottom seal

Double bidirectional End seal + Bottom seal + Scraper

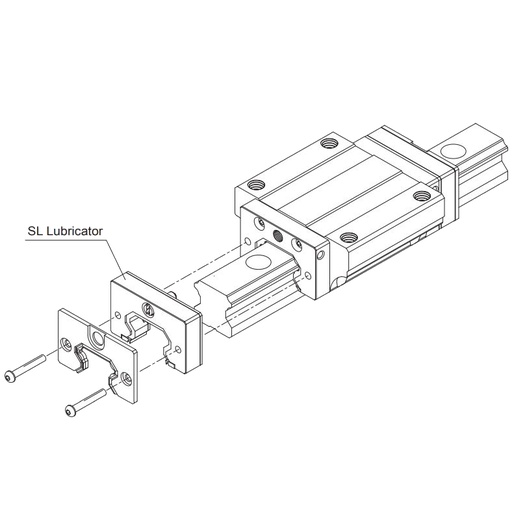

SL lubricator unit is designed with an oil reservoir which equipped with a high-density fiber net.

Bidirectional End seal + Bottom seal + Scraper

The MSB15 linear guide from PMI with High (H) and Normat (N) accuracy grade offers a compact profile with excellent rigidity and smooth motion, making it ideal for a wide range of industrial automation, precision machinery, and equipment requiring stable linear movement in limited spaces.

These profile rails are applicable to both MSB and SMB series linear guides from PMI.

Delivery Terms:
- Cutting and docking are included in the product price and are carried out using specialized equipment in strict accordance with PMI manufacturing requirements to ensure accuracy and durability.
- The price is specified per millimeter of length.
- If required, please specify the distance from the rail end to the first mounting hole (DISTANCE TO END "E").
Note: the maximum length of a single rail cannot exceed 4000 mm. Longer rails will be supplied in multiple precisely docked sections.

Cross References
EGW15CAZAH / EGW15CAZBH / EGW15CAZ0H (HIWIN)
TRS15FNNZ0 (TBI)
SR15TBUUC1H / SR15TBUUC0H / SR15TBUUH (THK)

MSB15E is a normal length low flange carriage. The mounting holes are accessible from either the top (S1) or the bottom (S2). The MSB series is used for the most compact solution for light to normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TE) or normal (MSB-E). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGH15CAZAH / EGH15CAZBH / EGH15CAZ0H (HIWIN)
TRS15VNNZ0 (TBI)
SBS15SLK2 / SBS15SLK3 / SBS15SLK1 (SBC)
SR15WUUC1H / SR15WUUC0H / SR15WUUH (THK)

MSB15S is a normal length low narrow square type carriage. Fastening holes are only accessible from the top. The MSB-Series is used for the most compact solution for light and normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TS) or normal (MSB-S). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGW15SCZAH / EGW15SCZBH / EGW15SCZ0H (HIWIN)
TRS15FSNZ0 (TBI)
SBS15FVK2 / SBS15FVK3 / SBS15FVK1 (SBC)
SR15WUUC1H / SR15WUUC0H / SR15SBUUC0H (THK)

MSB15TE is a short length low flange carriage. The mounting holes are accessible from either the top (S1) or the bottom (S2). Short carriages are mainly used in pairs. The MSB series is used for the most compact solution for light to normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TE) or normal (MSB-E). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGH15SAZAH / EGH15SAZBH / EGH15SAZ0H (HIWIN)
TRS15VSZ0 (TBI)
SBS15SVK2 / SBS15SVK3 / SBS15SVK3 (SBC)
SR15VUUC1H / SR15VUUC0H / SR15VUUH (THK)

MSB15TS is a short length low narrow square type carriage. Fastening holes are only accessible from the top. Short carriages are mostly used in pairs. The MSB-Series is used for the most compact solution for light and normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TS) or normal (MSB-S). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

The MSB20 linear guide from PMI with High (H) and Normat (N) accuracy grade offers a compact profile with excellent rigidity and smooth motion, making it ideal for a wide range of industrial automation, precision machinery, and equipment requiring stable linear movement in limited spaces.

These profile rails are applicable to both MSB and SMB series linear guides from PMI.

MSB-series applications
Machine Center
NC Lathe
XYZ Axes of Heavy Cutting Machine Tools
Grinding Machine Working Table
Feed Shaft of Milling Machine
Vertical or Horizontal Boring Machine
Z Axis of Boring Machine and Machine Tools
Auto Coating Machine
Industrial Robot
Various High Speed Material Supply Device
Z Axis of Industiral Machine
Binding Machine
EDM
Measuring Equipment
Precision XY Table

Double bidirectional End seal + Bottom seal

Double bidirectional End seal + Bottom seal + Scraper

SL lubricator unit is designed with an oil reservoir which equipped with a high-density fiber net.

Bidirectional End seal + Bottom seal + Scraper

The MSB20 linear guide from PMI with High (H) and Normat (N) accuracy grade offers a compact profile with excellent rigidity and smooth motion, making it ideal for a wide range of industrial automation, precision machinery, and equipment requiring stable linear movement in limited spaces.

These profile rails are applicable to both MSB and SMB series linear guides from PMI.

Delivery Terms:
- Cutting and docking are included in the product price and are carried out using specialized equipment in strict accordance with PMI manufacturing requirements to ensure accuracy and durability.
- The price is specified per millimeter of length.
- If required, please specify the distance from the rail end to the first mounting hole (DISTANCE TO END "E").
Note: the maximum length of a single rail cannot exceed 4000 mm. Longer rails will be supplied in multiple precisely docked sections.

Cross References
EGW20CAZAH / EGW20CAZBH / EGW20CAZ0H (HIWIN)
TRS20FNNZ0 (TBI)
R169381310 (Rexroth)
SR20TBUUC1H / SR20TBUUC0H / SR20TBUUH (THK)

MSB20E is a normal length low flange carriage. The mounting holes are accessible from either the top (S1) or the bottom (S2). The MSB series is used for the most compact solution for light to normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TE) or normal (MSB-E). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGH20CAZAH / EGH20CAZBH /EGH20CAZ0H (HIWIN)
TRS20VNNZ0 (TBI)
SBS20SLK2 / SBS20SLK3 / SBS20SLK1 (SBC)
R169481310 (Rexroth)
SR20WUUC1H / SR20WUUC0H / SR20WUUH (THK)

MSB20S is a normal length low narrow square type carriage. Fastening holes are only accessible from the top. The MSB-Series is used for the most compact solution for light and normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TS) or normal (MSB-S). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGW20SCZ0H / EGW20SCZBH / EGW20SCZ0H (HIWIN)
TRS20FSNZ0 (TBI)
SBS20FVK2 / SBS20FVK3 / SBS20FVK1 (SBC)
R166381310 (Rexroth)
SR20SBUC1H / SR20SBUUC0H / SR20SBUUH (THK)

MSB20TE is a short length low flange carriage. The mounting holes are accessible from either the top (S1) or the bottom (S2). Short carriages are mainly used in pairs. The MSB series is used for the most compact solution for light to normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TE) or normal (MSB-E). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGH20SAZAH / EGH20SAZBH / EGH20SAZ0H (HIWIN)
TRS20VSZ0 (TBI)
SBS20SVK1 / SBS20SVK2 / SBS20SVK1 (SBC)
R166481310 (Rexroth)
SR20VUUC1H / SR20VUUC0H / SR20VUUH (THK)

MSB20TS is a short length low narrow square type carriage. Fastening holes are only accessible from the top. Short carriages are mostly used in pairs. The MSB-Series is used for the most compact solution for light and normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TS) or normal (MSB-S). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

The MSB25 linear guide from PMI with High (H) and Normat (N) accuracy grade offers a compact profile with excellent rigidity and smooth motion, making it ideal for a wide range of industrial automation, precision machinery, and equipment requiring stable linear movement in limited spaces.

These profile rails are applicable to both MSB and SMB series linear guides from PMI.

MSB-series applications
Machine Center
NC Lathe
XYZ Axes of Heavy Cutting Machine Tools
Grinding Machine Working Table
Feed Shaft of Milling Machine
Vertical or Horizontal Boring Machine
Z Axis of Boring Machine and Machine Tools
Auto Coating Machine
Industrial Robot
Various High Speed Material Supply Device
Z Axis of Industiral Machine
Binding Machine
EDM
Measuring Equipment
Precision XY Table

Double bidirectional End seal + Bottom seal

Double bidirectional End seal + Bottom seal + Scraper

SL lubricator unit is designed with an oil reservoir which equipped with a high-density fiber net.

Bidirectional End seal + Bottom seal + Scraper

The MSB25 linear guide from PMI with High (H) and Normat (N) accuracy grade offers a compact profile with excellent rigidity and smooth motion, making it ideal for a wide range of industrial automation, precision machinery, and equipment requiring stable linear movement in limited spaces.

These profile rails are applicable to both MSB and SMB series linear guides from PMI.

Delivery Terms:
- Cutting and docking are included in the product price and are carried out using specialized equipment in strict accordance with PMI manufacturing requirements to ensure accuracy and durability.
- The price is specified per millimeter of length.
- If required, please specify the distance from the rail end to the first mounting hole (DISTANCE TO END "E").
Note: the maximum length of a single rail cannot exceed 4000 mm. Longer rails will be supplied in multiple precisely docked sections.

Cross References
EGW25CAZAH / EGW25CAZ0H / EGW25CAZ0H (HIWIN)
TRS25FNNZ0 (TBI)
R169329410 (Rexroth)
SR25TBUUC1H / SR25TBUUC0H / SR25TBUUH (THK)

MSB25E is a normal length low flange carriage. The mounting holes are accessible from either the top (S1) or the bottom (S2). The MSB series is used for the most compact solution for light to normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TE) or normal (MSB-E). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGH25CAZAH / EGH25CAZBH / EGH25CAZ0H (HIWIN)
TRS25VNNZ0 (TBI)
SBS25SLK2 / SBS25SLK3 / SBS25SLK1 (SBC)
R169421310 (Rexroth)
SR25WUUC1H / SR25WUUC0H / SR25WUUH (THK)

MSB25S is a normal length low narrow square type carriage. Fastening holes are only accessible from the top. The MSB-Series is used for the most compact solution for light and normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TS) or normal (MSB-S). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGW25SCZAH / EGW25SCZBH / EGW25SCZ0H (HIWIN)
TRS25FSNZ0 (TBI)
SBS25FVK1 / SBS25FVK2 / SBS25FVK0 (SBC)
R166321310 (Rexroth)
SR25SBUUC1H / SR25SBUUC0H / SR25SBUUH (THK)

MSB25TE is a short length low flange carriage. The mounting holes are accessible from either the top (S1) or the bottom (S2). Short carriages are mainly used in pairs. The MSB series is used for the most compact solution for light to normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TE) or normal (MSB-E). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGH25SAZAH / EGH25SAZBH / EGH25SAZAH (HIWIN)
TRS25VSZ0 (TBI)
SBS25SVK1 / SBS25SVK2 / SBS25SVK1 (SBC)
R166421310 (Rexroth)
SR25VUUC1H / SR25VUUC0H / SR25VUUH (THK)

MSB25TS is a short length low narrow square type carriage. Fastening holes are only accessible from the top. Short carriages are mostly used in pairs. The MSB-Series is used for the most compact solution for light and normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TS) or normal (MSB-S). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.
