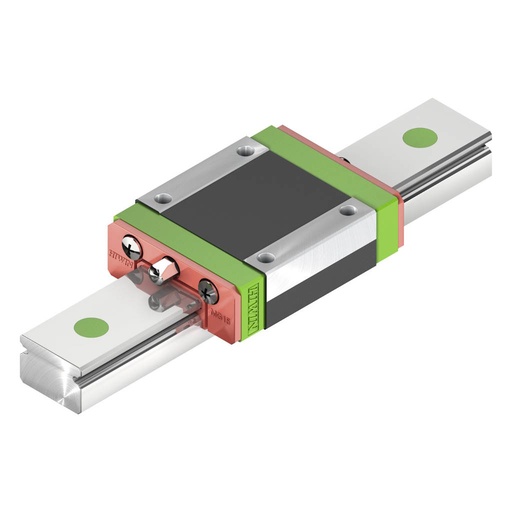

Block MGW15-HZ-0H-M is used in conjunction with the MGWR15R2000HM profile rail.
Miniature linear guideways series MG:
1. Tiny and light weight, suitable for miniature equipment.
2. Gothic arch contact design can sustain loads from all directions and offer high rigidity and high accuracy.
Application: miniature device, semiconductor equipment, medical equipment.

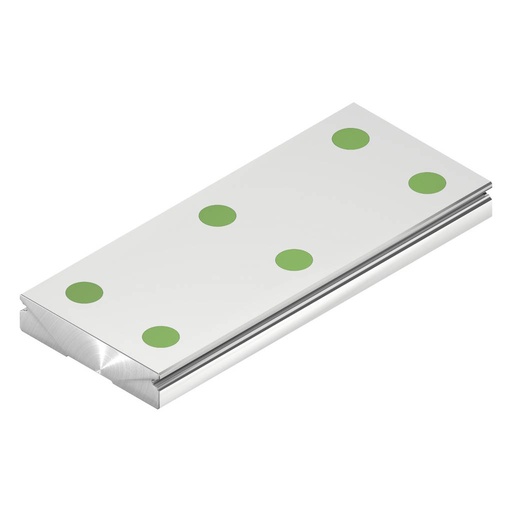

The MGWR 09R1200HM rail is compatible with MGW series blocks.
MGWR 09R rail can be cut and joined based on customer’s request, taking into account the length requirements, using high-precision equipment, using the manufacturer’s technologies, including cutting, grinding and joining of several rails.
Application: miniature device, semiconductor equipment, medical equipment.

The MGWR 12R2000HM rail is compatible with MGW series blocks.
MGWR 12R rail can be cut and joined based on customer’s request, taking into account the length requirements, using high-precision equipment, using the manufacturer’s technologies, including cutting, grinding and joining of several rails.
Application: miniature device, semiconductor equipment, medical equipment.

The MGWR 15R2000HM rail is compatible with MGW series blocks.
MGWR 15R rail can be cut and joined based on customer’s request, taking into account the length requirements, using high-precision equipment, using the manufacturer’s technologies, including cutting, grinding and joining of several rails.
Application: miniature device, semiconductor equipment, medical equipment.

Cross References
HGR15R4000H / HGR15T4000H (HIWIN)
TR154000N (TBI)
SBI15-4000L / SBI15-4000L-B (SBC)
R160510331 / R160710331 (Rexroth)
HSR15A2UU+4000LH (THK)
LLRHC15-4000P3 (Ewellix)

These profile rails are applicable to both MSA and SMA series linear guides from PMI.

The MSA15 linear guide from PMI with High (H) and Normal (N) accuracy grade is designed for applications that require high precision, smooth motion, and reliability under dynamic loads. It is widely used in machine tools, automation systems, 3D printers, and other industrial machinery.

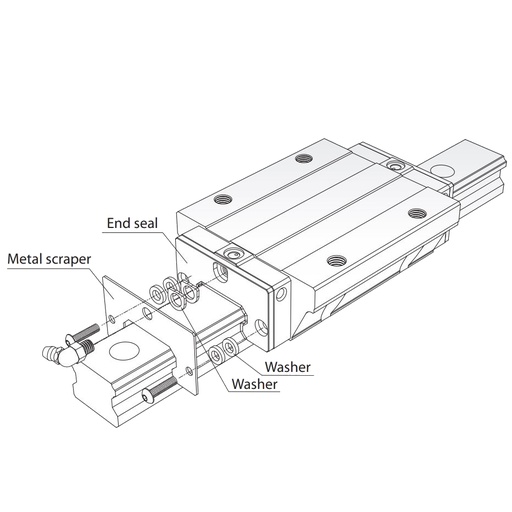

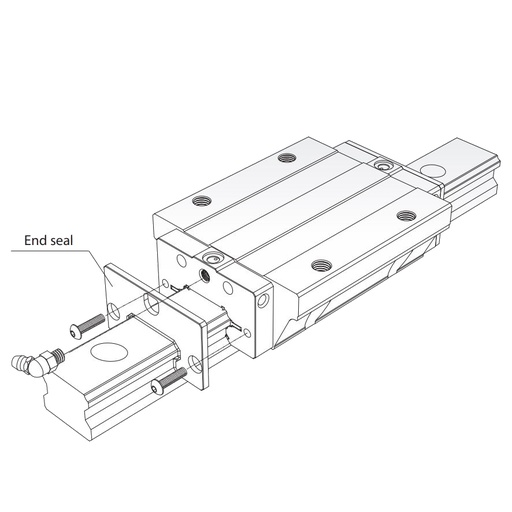

Double bidirectional End seal + Bottom seal

Double bidirectional End seal + Bottom seal + Scraper

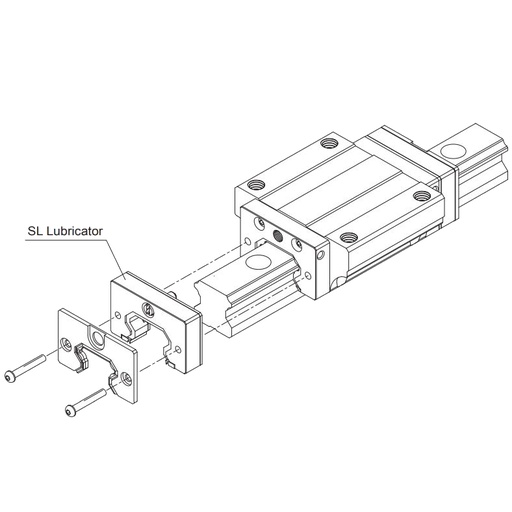

SL lubricator unit is designed with an oil reservoir which equipped with a high-density fiber net.

Bidirectional End seal + Bottom seal + Scraper

The MSA15 linear guide from PMI with High (H) and Normal (N) accuracy grade is designed for applications that require high precision, smooth motion, and reliability under dynamic loads. It is widely used in machine tools, automation systems, 3D printers, and other industrial machinery.

These profile rails are applicable to both MSA and SMA series linear guides from PMI.

Delivery Terms:
- Cutting and docking are included in the product price and are performed using specialized equipment in accordance with the manufacturer's specifications to ensure precision and reliability.
- The price is specified per millimeter of length.
- If required, please specify the distance from the rail end to the first mounting hole (DISTANCE TO END "E").
Note: the maximum length of a single rail cannot exceed 4000 mm. Longer rails will be supplied in multiple precisely docked sections.

MSA15E is a carriage with installation on both (top or bottom) sides.

Cross References
HGW15CAZAH / HGW15CAZ0H (HIWIN)
TRH15FNNZ0 (TBI)
SBI15FLNK2 / SBI15FLNK0 (SBC)
R165111420 / R165119320 (Rexroth)
HSR15ASSH (THK)
LLRHC15AT1P3 (Ewellix)
HRC15FNV2H / HRC15FNV1H (CPC)

The MSA-E/LE is a carriage with flange. This carriage is available in two different lengths, normal (MSA-E) or long (MSA-LE). Fastening holes are accessible either from top (S1) or bottom (S2). Full ball MSA-Series is especially suited for high precision and high rigidity required motion, for normal and high load.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

MSA15S is a narrow type of PMI linear guideway, can be installed from top side of carriage.

Cross References
HGH15CAZAH / HGH15CAZ0H (HIWIN)
TRH15VNNZ0 (TBI)
SBI15SLK2 (SBC)
R162211420 (Rexroth)
HSR15CRSSH (THK)
LLRHC15UT1P3 (Ewellix)
HRC15MNV2H / HRC15MNV1H (CPC)

The MSA S/LS represents a streamlined square-shaped carriage, offered in both standard (MSA-S) and extended (MSA-LS) lengths. Notably, mounting holes are exclusively positioned on the upper side. Specifically tailored for applications demanding both precision and robustness, the MSA Series caters to both regular and substantial load requirements.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

Cross References
HGR20R4000H / HGR20T4000H (HIWIN)
TR204000N (TBI)
SBI20-4000L / SBI20-4000L-B (SBC)
R160580331 / R160780331 (Rexroth)
HSR20A2UU+4000LH (THK)
LLRHC20-4000P3 (Ewellix)

These profile rails are applicable to both MSA and SMA series linear guides from PMI.

The MSA20 linear guide from PMI with High (H) and Normal (N) accuracy grade is designed for applications that require high precision, smooth motion, and reliability under dynamic loads. It is widely used in machine tools, automation systems, 3D printers, and other industrial machinery.

Double bidirectional End seal + Bottom seal

Double bidirectional End seal + Bottom seal + Scraper

SL lubricator unit is designed with an oil reservoir which equipped with a high-density fiber net.

Bidirectional End seal + Bottom seal + Scraper

The MSA20 linear guide from PMI with High (H) and Normal (N) accuracy grade is designed for applications that require high precision, smooth motion, and reliability under dynamic loads. It is widely used in machine tools, automation systems, 3D printers, and other industrial machinery.

These profile rails are applicable to both MSA and SMA series linear guides from PMI.

Delivery Terms:
- Cutting and docking are included in the product price and are performed using specialized equipment in accordance with the manufacturer's specifications to ensure precision and reliability.
- The price is specified per millimeter of length.
- If required, please specify the distance from the rail end to the first mounting hole (DISTANCE TO END "E").
Note: the maximum length of a single rail cannot exceed 4000 mm. Longer rails will be supplied in multiple precisely docked sections.

MSA20E is a carriage with installation on both (top or bottom) sides.

Cross References
HGW20CAZAH / HGW20CAZBH / HGW20CAZ0H (HIWIN)
TRH20FNNZ0 (TBI)
SBI20FLNK2 / SBI20FLNK3 / SBI20FLNK1 (SBC)
R165181320 (Rexroth)
HSR20ASSH / HSR20ASSC1H (THK)
LLRHC20AT2P3 (Ewellix)
HRC20FNV2H / HRC20FNV3H / HRC20FNV1H (CPC)

The MSA-E/LE is a carriage with flange. This carriage is available in two different lengths, normal (MSA-E) or long (MSA-LE). Fastening holes are accessible either from top (S1) or bottom (S2). Full ball MSA-Series is especially suited for high precision and high rigidity required motion, for normal and high load.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

MSA20LE (Long Flange) is a carriage with installation on both (top or bottom) sides.

Cross References
HGW20HAZAH / HGW20HAZBH / HGW20HAZ0H (HIWIN)
TRH20FENZ0 (TBI)
SBI20FLLNK2 / SBI20FLLNK3 / SBI20FLLNK1 (SBC)
R165381320 / R165382320 / R165389320 (Rexroth)
HSR20HASSH / HSR20HASSС0H (THK)
LLRHC20LAT1P3 (Ewellix)
HRC20FLV2H / HRC20FLV3H / HRC20FLV1H (CPC)

The MSA-E/LE is a carriage with flange. This carriage is available in two different lengths, normal (MSA-E) or long (MSA-LE). Fastening holes are accessible either from top (S1) or bottom (S2). Full ball MSA-Series is especially suited for high precision and high rigidity required motion, for normal and high load.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

MSA20LS is a Long Narrow type of PMI linear guideway, can be installed from top side of carriage.

Cross References
HGH20HAZAH / HGH20HAZBH / HGH20HAZ0H (HIWIN)
TRH20VENZ0 (TBI)
SBI20SLLNK1 / SBI20SLLNK3 / SBI20SLLNK1 (SBC)
R165382320 / R165321420 / R165382320 (Rexroth)
HSR20HRASSH / HSR20HRSSC0H / HSR20LASSH (THK)
LLRHC20LUT2P3 / LLRHC20LUT0P3 (Ewellix)
HRC20FLV2H / HRC20FLV2H / HRC20MLV1H (CPC)

The MSA S/LS represents a streamlined square-shaped carriage, offered in both standard (MSA-S) and extended (MSA-LS) lengths. Notably, mounting holes are exclusively positioned on the upper side. Specifically tailored for applications demanding both precision and robustness, the MSA Series caters to both regular and substantial load requirements.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

MSA20S is a narrow type of PMI linear guideway, can be installed from top side of carriage.

Cross References
HGH20CAZAH / HGH20CAZBH / HGH20CAZ0H (HIWIN)
TRH20VNNZ0 (TBI)
SBI20SLK2 / SBI20SLK3 / SBI20SLK1 (SBC)
R162281320 / R162289320 (Rexroth)
HSR20CRSSH / HSR20CRSSC0H / HSR20RSSH (THK)
LLRHC20UT1P3 / LLRHC20UT2P3 / LLRHC20UT0P3 (Ewellix)
HRC20MNV1H / HRC20MNV3H / HRC20MNV1H (CPC)

The MSA S/LS represents a streamlined square-shaped carriage, offered in both standard (MSA-S) and extended (MSA-LS) lengths. Notably, mounting holes are exclusively positioned on the upper side. Specifically tailored for applications demanding both precision and robustness, the MSA Series caters to both regular and substantial load requirements.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

Cross References
HGR25R4000H / HGR25T4000H (HIWIN)
TR254000N (TBI)
SBI25-4000L / SBI25-4000L-B (SBC)
R160520331 / R160720331 (Rexroth)
HSR25A2UU+4000LH (THK)
LLRHC25-4000P3 (Ewellix)

These profile rails are applicable to both MSA and SMA series linear guides from PMI.

The MSA25 linear guide from PMI with High (H) and Normal (N) accuracy grade is designed for applications that require high precision, smooth motion, and reliability under dynamic loads. It is widely used in machine tools, automation systems, 3D printers, and other industrial machinery.

Double bidirectional End seal + Bottom seal

Double bidirectional End seal + Bottom seal + Scraper

SL lubricator unit is designed with an oil reservoir which equipped with a high-density fiber net.

Bidirectional End seal + Bottom seal + Scraper

The MSA25 linear guide from PMI with High (H) and Normal (N) accuracy grade is designed for applications that require high precision, smooth motion, and reliability under dynamic loads. It is widely used in machine tools, automation systems, 3D printers, and other industrial machinery.

These profile rails are applicable to both MSA and SMA series linear guides from PMI.

Delivery Terms:
- Cutting and docking are included in the product price and are performed using specialized equipment in accordance with the manufacturer's specifications to ensure precision and reliability.
- The price is specified per millimeter of length.
- If required, please specify the distance from the rail end to the first mounting hole (DISTANCE TO END "E").
Note: the maximum length of a single rail cannot exceed 4000 mm. Longer rails will be supplied in multiple precisely docked sections.

MSA25E is a carriage with installation on both (top or bottom) sides.

Cross References
HGW25CAZAH (HIWIN)
TRH25FNNZ0 (TBI)
SBI25FLNK2 (SBC)
R165121320 (Rexroth)
HSR25ASSH (THK)
LLRHC25AT1P3 (Ewellix)
HRC25FNV2H (CPC)

The MSA-E/LE is a carriage with flange. This carriage is available in two different lengths, normal (MSA-E) or long (MSA-LE). Fastening holes are accessible either from top (S1) or bottom (S2). Full ball MSA-Series is especially suited for high precision and high rigidity required motion, for normal and high load.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

MSA25LE (Long Flange) is a carriage with installation on both (top or bottom) sides.

Cross References
HGW25HAZAH (HIWIN)
TRH25FENZ0 (TBI)
SBI25FLLNK2 (SBC)
R165321320 (Rexroth)
HSR25HASSH (THK)
LLRHC25LAT1P3 (Ewellix)
HRC25FLV2H (CPC)

The MSA-E/LE is a carriage with flange. This carriage is available in two different lengths, normal (MSA-E) or long (MSA-LE). Fastening holes are accessible either from top (S1) or bottom (S2). Full ball MSA-Series is especially suited for high precision and high rigidity required motion, for normal and high load.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

MSA25LS is a Long Narrow type of PMI linear guideway, can be installed from top side of carriage.

Cross References
HGH25HAZAH (HIWIN)
TRH25VENZ0 (TBI)
SBI25SLLNK1 (SBC)
R165382320 (Rexroth)
HSR25HRSSH (THK)
LLRHC25LUT1P3 (Ewellix)
HRC25MLV2H (CPC)

The MSA S/LS represents a streamlined square-shaped carriage, offered in both standard (MSA-S) and extended (MSA-LS) lengths. Notably, mounting holes are exclusively positioned on the upper side. Specifically tailored for applications demanding both precision and robustness, the MSA Series caters to both regular and substantial load requirements.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

MSA25S is a narrow type of PMI linear guideway, can be installed from top side of carriage.

Cross References
HGH25CAZAH (HIWIN);
TRH25VNNZ0 (TBI);
SBI25SLK2 (SBC);
R162221325 (Rexroth);
HSR25RSSC1H (THK);
LLRHC25UT1P3 (Ewellix);
HRC25MNV2H (CPC)

The MSA S/LS represents a streamlined square-shaped carriage, offered in both standard (MSA-S) and extended (MSA-LS) lengths. Notably, mounting holes are exclusively positioned on the upper side. Specifically tailored for applications demanding both precision and robustness, the MSA Series caters to both regular and substantial load requirements.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.
