LINEAR GUIDEWAYS

In the realm of modern engineering and manufacturing, linear guideways stand as cornerstones of precision motion. These sophisticated components are engineered to guide and support linear movement in machinery and equipment, ensuring smooth, accurate, and repeatable motion across diverse industrial applications. From intricate automation systems to heavy-duty machine tools, linear guideways are critical for achieving optimal performance, enhancing efficiency, and maintaining the longevity of your valuable equipment.

HGW45HCZAH Carriage
Block HGW45-HC-ZA-H is used in conjunction with the HGR45R4000H profile rail.
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error.
Application: grinding, milling, and drilling machine, lathe, machine center.
110.08 € 110.08 EUR

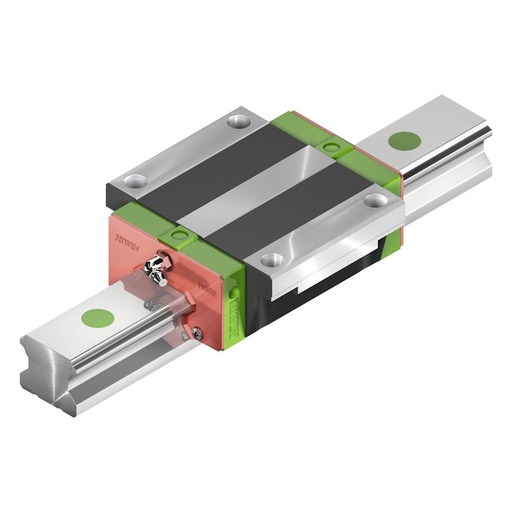

HGW55HCZAH Carriage
Block HGW55-HC-ZA-H is used in conjunction with the HGR55R4000H profile rail.
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error.
Application: grinding, milling, and drilling machine, lathe, machine center.
162.58 € 162.58 EUR
HGW65CCZAH Carriage
Block HGW65-CC-ZA-H is used in conjunction with the HGR65R4000H profile rail.
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error.
Application: grinding, milling, and drilling machine, lathe, machine center.
190.66 € 190.66 EUR
215.00 € 215.0 EUR
MGN07CZ0HM Carriage
Block MGN07-CZ-0H-M is used in conjunction with the MGNR07R600HM profile rail.
Miniature linear guideways series MG:
1. Tiny and light weight, suitable for miniature equipment.
2. Gothic arch contact design can sustain loads from all directions and offer high rigidity and high accuracy.
Application: miniature device, semiconductor equipment, medical equipment.
19.98 € 19.98 EUR
MGN07HZ0HM Carriage
Block MGN07-HZ-0H-M is used in conjunction with the MGNR07R600HM profile rail.
Miniature linear guideways series MG:
1. Tiny and light weight, suitable for miniature equipment.
2. Gothic arch contact design can sustain loads from all directions and offer high rigidity and high accuracy.
Application: miniature device, semiconductor equipment, medical equipment.
21.56 € 21.56 EUR
MGN09CZ1HMEL Block
Block MGN09-CZ-1H-MEL is used in conjunction with the MGNR09R1200HM profile rail.
Miniature linear guideways series MG:
1. Tiny and light weight, suitable for miniature equipment.
2. Gothic arch contact design can sustain loads from all directions and offer high rigidity and high accuracy.
Application: miniature device, semiconductor equipment, medical equipment.
26.25 € 26.25 EUR

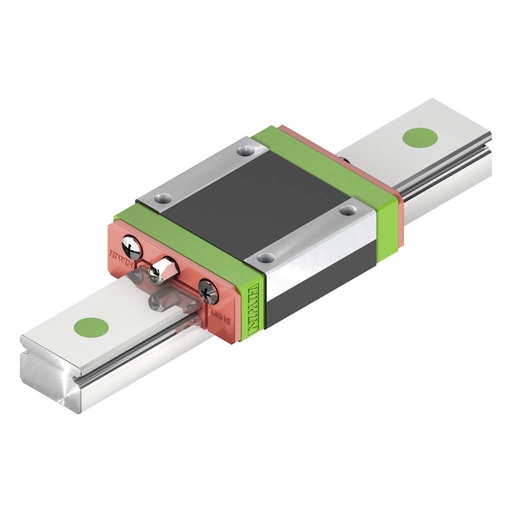

MGN12CZ0HM Carriage
Block MGN12-CZ-0H-M is used in conjunction with the MGNR12R2000HM profile rail.
Miniature linear guideways series MG:
1. Tiny and light weight, suitable for miniature equipment.
2. Gothic arch contact design can sustain loads from all directions and offer high rigidity and high accuracy.
Application: miniature device, semiconductor equipment, medical equipment.
22.34 € 22.34 EUR
MGN12HZ0HM Carriage
Block MGN12-HZ-0H-M is used in conjunction with the MGNR12R2000HM profile rail.
Miniature linear guideways series MG:
1. Tiny and light weight, suitable for miniature equipment.
2. Gothic arch contact design can sustain loads from all directions and offer high rigidity and high accuracy.
Application: miniature device, semiconductor equipment, medical equipment.
25.08 € 25.08 EUR
MGN15CZ0HM Carriage
Block MGN15-CZ-0H-M is used in conjunction with the MGNR15R2000HM profile rail.
Miniature linear guideways series MG:
1. Tiny and light weight, suitable for miniature equipment.
2. Gothic arch contact design can sustain loads from all directions and offer high rigidity and high accuracy.
Application: miniature device, semiconductor equipment, medical equipment.
25.44 € 25.44 EUR
MGN15HZ0HM Carriage
Block MGN15-HZ-0H-M is used in conjunction with the MGNR15R2000HM profile rail.
Miniature linear guideways series MG:
1. Tiny and light weight, suitable for miniature equipment.
2. Gothic arch contact design can sustain loads from all directions and offer high rigidity and high accuracy.
Application: miniature device, semiconductor equipment, medical equipment.
29.54 € 29.54 EUR
MGNR07R600HM Rail
The MGNR 07R600HM rail is compatible with MGN series blocks.
MGNR 07R rail can be cut and joined based on customer’s request, taking into account the length requirements, using high-precision equipment, using the manufacturer’s technologies, including cutting, grinding and joining of several rails.
Application: miniature device, semiconductor equipment, medical equipment.
54.12 € 54.12 EUR
MGNR09R1200HM Profile rail
The MGNR 09R1200HM rail is compatible with MGN series blocks.
MGNR 09R rail can be cut and joined based on customer’s request, taking into account the length requirements, using high-precision equipment, using the manufacturer’s technologies, including cutting, grinding and joining of several rails.
Application: miniature device, semiconductor equipment, medical equipment.
111.41 € 111.41 EUR

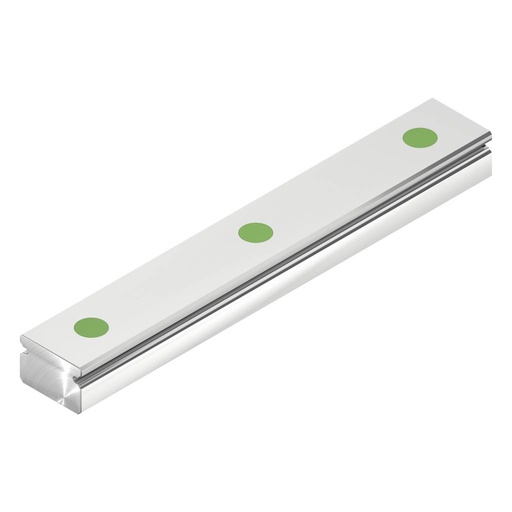

MGNR12R2000HM Rail
The MGNR 12R2000HM rail is compatible with MGN series blocks.
MGNR 12R rail can be cut and joined based on customer’s request, taking into account the length requirements, using high-precision equipment, using the manufacturer’s technologies, including cutting, grinding and joining of several rails.
Application: miniature device, semiconductor equipment, medical equipment.
197.20 € 197.2 EUR
MGNR15R2000HM Rail
The MGNR 15R2000HM rail is compatible with MGN series blocks.
MGNR 15R rail can be cut and joined based on customer’s request, taking into account the length requirements, using high-precision equipment, using the manufacturer’s technologies, including cutting, grinding and joining of several rails.
Application: miniature device, semiconductor equipment, medical equipment.
232.40 € 232.4 EUR
MGW09CZ0HM Carriage
Block MGW09-CZ-0H-M is used in conjunction with the MGWR09R1200HM profile rail.
Miniature linear guideways series MG:
1. Tiny and light weight, suitable for miniature equipment.
2. Gothic arch contact design can sustain loads from all directions and offer high rigidity and high accuracy.
Application: miniature device, semiconductor equipment, medical equipment.
27.34 € 27.34 EUR

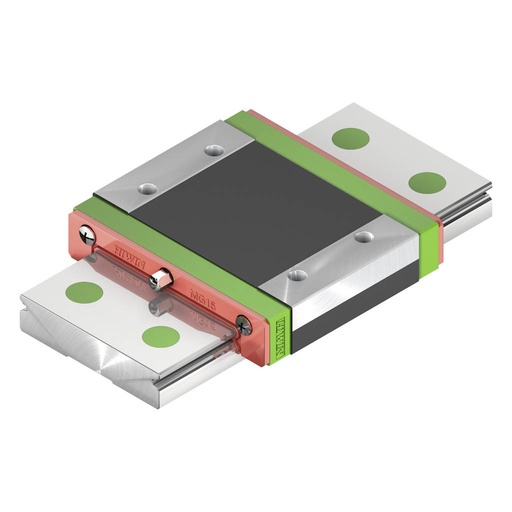

MGW09HZ0HM Carriage
Block MGW09-HZ-0H-M is used in conjunction with the MGWR09R1200HM profile rail.
Miniature linear guideways series MG:
1. Tiny and light weight, suitable for miniature equipment.
2. Gothic arch contact design can sustain loads from all directions and offer high rigidity and high accuracy.
Application: miniature device, semiconductor equipment, medical equipment.
29.20 € 29.2 EUR
MGW12CZ0HM Carriage
Block MGW12-CZ-0H-M is used in conjunction with the MGWR12R2000HM profile rail.
Miniature linear guideways series MG:
1. Tiny and light weight, suitable for miniature equipment.
2. Gothic arch contact design can sustain loads from all directions and offer high rigidity and high accuracy.
Application: miniature device, semiconductor equipment, medical equipment.
27.42 € 27.42 EUR
MGW15CZ0HM Carriage
Block MGW15-CZ-0H-M is used in conjunction with the MGWR15R2000HM profile rail.
Miniature linear guideways series MG:
1. Tiny and light weight, suitable for miniature equipment.
2. Gothic arch contact design can sustain loads from all directions and offer high rigidity and high accuracy.
Application: miniature device, semiconductor equipment, medical equipment.
38.14 € 38.14 EUR
MGW15HZ0HM Carriage
Block MGW15-HZ-0H-M is used in conjunction with the MGWR15R2000HM profile rail.
Miniature linear guideways series MG:
1. Tiny and light weight, suitable for miniature equipment.
2. Gothic arch contact design can sustain loads from all directions and offer high rigidity and high accuracy.
Application: miniature device, semiconductor equipment, medical equipment.
43.94 € 43.94 EUR
MGWR09R1200HM Rail
The MGWR 09R1200HM rail is compatible with MGW series blocks.
MGWR 09R rail can be cut and joined based on customer’s request, taking into account the length requirements, using high-precision equipment, using the manufacturer’s technologies, including cutting, grinding and joining of several rails.
Application: miniature device, semiconductor equipment, medical equipment.
203.52 € 203.52 EUR
MGWR12R2000HM Rail
The MGWR 12R2000HM rail is compatible with MGW series blocks.
MGWR 12R rail can be cut and joined based on customer’s request, taking into account the length requirements, using high-precision equipment, using the manufacturer’s technologies, including cutting, grinding and joining of several rails.
Application: miniature device, semiconductor equipment, medical equipment.
422.80 € 422.8 EUR
MGWR15R2000HM Rail
The MGWR 15R2000HM rail is compatible with MGW series blocks.
MGWR 15R rail can be cut and joined based on customer’s request, taking into account the length requirements, using high-precision equipment, using the manufacturer’s technologies, including cutting, grinding and joining of several rails.
Application: miniature device, semiconductor equipment, medical equipment.
664.80 € 664.8 EUR
MSB15 Profile rail 4000mm
The MSB35 linear guide from PMI with High (H) and Normat (N) accuracy grade offers a compact profile with excellent rigidity and smooth motion, making it ideal for a wide range of industrial automation, precision machinery, and equipment requiring stable linear movement in limited spaces.

These profile rails are applicable to both MSB and SMB series linear guides from PMI.

MSB-series applications
Machine Center
NC Lathe
XYZ Axes of Heavy Cutting Machine Tools
Grinding Machine Working Table
Feed Shaft of Milling Machine
Vertical or Horizontal Boring Machine
Z Axis of Boring Machine and Machine Tools
Auto Coating Machine
Industrial Robot
Various High Speed Material Supply Device
Z Axis of Industiral Machine
Binding Machine
EDM
Measuring Equipment
Precision XY Table
From 142.64 € 142.64 EUR
MSB20 Profile rail 4000mm
The MSB20 linear guide from PMI with High (H) and Normat (N) accuracy grade offers a compact profile with excellent rigidity and smooth motion, making it ideal for a wide range of industrial automation, precision machinery, and equipment requiring stable linear movement in limited spaces.

These profile rails are applicable to both MSB and SMB series linear guides from PMI.

MSB-series applications
Machine Center
NC Lathe
XYZ Axes of Heavy Cutting Machine Tools
Grinding Machine Working Table
Feed Shaft of Milling Machine
Vertical or Horizontal Boring Machine
Z Axis of Boring Machine and Machine Tools
Auto Coating Machine
Industrial Robot
Various High Speed Material Supply Device
Z Axis of Industiral Machine
Binding Machine
EDM
Measuring Equipment
Precision XY Table
From 158.64 € 158.64 EUR
MSB20-mm Profile rail
The MSB20 linear guide from PMI with High (H) and Normat (N) accuracy grade offers a compact profile with excellent rigidity and smooth motion, making it ideal for a wide range of industrial automation, precision machinery, and equipment requiring stable linear movement in limited spaces.

These profile rails are applicable to both MSB and SMB series linear guides from PMI.

Delivery Terms:
- Cutting and docking are included in the product price and are carried out using specialized equipment in strict accordance with PMI manufacturing requirements to ensure accuracy and durability.
- The price is specified per millimeter of length.
- If required, please specify the distance from the rail end to the first mounting hole (DISTANCE TO END "E").
Note: the maximum length of a single rail cannot exceed 4000 mm. Longer rails will be supplied in multiple precisely docked sections.
0.06 € 0.06 EUR
MSB25 Profile rail 4000mm
The MSB25 linear guide from PMI with High (H) and Normat (N) accuracy grade offers a compact profile with excellent rigidity and smooth motion, making it ideal for a wide range of industrial automation, precision machinery, and equipment requiring stable linear movement in limited spaces.

These profile rails are applicable to both MSB and SMB series linear guides from PMI.

MSB-series applications
Machine Center
NC Lathe
XYZ Axes of Heavy Cutting Machine Tools
Grinding Machine Working Table
Feed Shaft of Milling Machine
Vertical or Horizontal Boring Machine
Z Axis of Boring Machine and Machine Tools
Auto Coating Machine
Industrial Robot
Various High Speed Material Supply Device
Z Axis of Industiral Machine
Binding Machine
EDM
Measuring Equipment
Precision XY Table
From 178.64 € 178.64 EUR
MSB25-mm Profile rail
The MSB25 linear guide from PMI with High (H) and Normat (N) accuracy grade offers a compact profile with excellent rigidity and smooth motion, making it ideal for a wide range of industrial automation, precision machinery, and equipment requiring stable linear movement in limited spaces.

These profile rails are applicable to both MSB and SMB series linear guides from PMI.

Delivery Terms:
- Cutting and docking are included in the product price and are carried out using specialized equipment in strict accordance with PMI manufacturing requirements to ensure accuracy and durability.
- The price is specified per millimeter of length.
- If required, please specify the distance from the rail end to the first mounting hole (DISTANCE TO END "E").
Note: the maximum length of a single rail cannot exceed 4000 mm. Longer rails will be supplied in multiple precisely docked sections.
From 0.06 € 0.06 EUR
MSB30 Profile rail 4000mm
The MSB30 linear guide from PMI with High (H) and Normat (N) accuracy grade offers a compact profile with excellent rigidity and smooth motion, making it ideal for a wide range of industrial automation, precision machinery, and equipment requiring stable linear movement in limited spaces.

These profile rails are applicable to both MSB and SMB series linear guides from PMI.

MSB-series applications
Machine Center
NC Lathe
XYZ Axes of Heavy Cutting Machine Tools
Grinding Machine Working Table
Feed Shaft of Milling Machine
Vertical or Horizontal Boring Machine
Z Axis of Boring Machine and Machine Tools
Auto Coating Machine
Industrial Robot
Various High Speed Material Supply Device
Z Axis of Industiral Machine
Binding Machine
EDM
Measuring Equipment
Precision XY Table
From 225.92 € 225.92 EUR
MSB30-mm Profile rail
The MSB30 linear guide from PMI with High (H) and Normat (N) accuracy grade offers a compact profile with excellent rigidity and smooth motion, making it ideal for a wide range of industrial automation, precision machinery, and equipment requiring stable linear movement in limited spaces.

These profile rails are applicable to both MSB and SMB series linear guides from PMI.

Delivery Terms:
- Cutting and docking are included in the product price and are carried out using specialized equipment in strict accordance with PMI manufacturing requirements to ensure accuracy and durability.
- The price is specified per millimeter of length.
- If required, please specify the distance from the rail end to the first mounting hole (DISTANCE TO END "E").
Note: the maximum length of a single rail cannot exceed 4000 mm. Longer rails will be supplied in multiple precisely docked sections.
0.07 € 0.07 EUR
MSB35 Profile rail 4000mm
The MSB35 linear guide from PMI with High (H) and Normat (N) accuracy grade offers a compact profile with excellent rigidity and smooth motion, making it ideal for a wide range of industrial automation, precision machinery, and equipment requiring stable linear movement in limited spaces.

These profile rails are applicable to both MSB and SMB series linear guides from PMI.

MSB-series applications
Machine Center
NC Lathe
XYZ Axes of Heavy Cutting Machine Tools
Grinding Machine Working Table
Feed Shaft of Milling Machine
Vertical or Horizontal Boring Machine
Z Axis of Boring Machine and Machine Tools
Auto Coating Machine
Industrial Robot
Various High Speed Material Supply Device
Z Axis of Industiral Machine
Binding Machine
EDM
Measuring Equipment
Precision XY Table
From 298.16 € 298.16 EUR
MSB35-mm Profile rail
The MSB35 linear guide from PMI with High (H) and Normat (N) accuracy grade offers a compact profile with excellent rigidity and smooth motion, making it ideal for a wide range of industrial automation, precision machinery, and equipment requiring stable linear movement in limited spaces.

These profile rails are applicable to both MSB and SMB series linear guides from PMI.

Delivery Terms:
- Cutting and docking are included in the product price and are carried out using specialized equipment in strict accordance with PMI manufacturing requirements to ensure accuracy and durability.
- The price is specified per millimeter of length.
- If required, please specify the distance from the rail end to the first mounting hole (DISTANCE TO END "E").
Note: the maximum length of a single rail cannot exceed 4000 mm. Longer rails will be supplied in multiple precisely docked sections.
From 0.09 € 0.09 EUR
