The EGR 20R4000H rail is compatible with EG and QE series blocks.
EGR 20R rail can be cut and joined based on customer’s request, taking into account the length requirements, using high-precision equipment, using the manufacturer’s technologies, including cutting, grinding and joining of several rails.
Application: automatic equipment, high speed transfer device, semiconductor equipment, wood cutting machine, precision measure equipment.

The EGR 25R4000H rail is compatible with EG and QE series blocks.
EGR 25R rail can be cut and joined based on customer’s request, taking into account the length requirements, using high-precision equipment, using the manufacturer’s technologies, including cutting, grinding and joining of several rails.
Application: automatic equipment, high speed transfer device, semiconductor equipment, wood cutting machine, precision measure equipment.

The EGR 30R4000H rail is compatible with EG and QE series blocks.
EGR 30R rail can be cut and joined based on customer’s request, taking into account the length requirements, using high-precision equipment, using the manufacturer’s technologies, including cutting, grinding and joining of several rails.
Application: automatic equipment, high speed transfer device, semiconductor equipment, wood cutting machine, precision measure equipment.

The EGR 35R4000H rail is compatible with EG and QE series blocks.
EGR 35R rail can be cut and joined based on customer’s request, taking into account the length requirements, using high-precision equipment, using the manufacturer’s technologies, including cutting, grinding and joining of several rails.
Application: automatic equipment, high speed transfer device, semiconductor equipment, wood cutting machine, precision measure equipment.

Block EGW15-CC-Z0-H is used in conjunction with the EGR15R4000H profile rail.
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies.
Application: automatic equipment, high speed transfer device, semiconductor
equipment, wood cutting machine, precision measure equipment.

Block EGW20-CC-Z0-H is used in conjunction with the EGR20R4000H profile rail.
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies.
Application: automatic equipment, high speed transfer device, semiconductor
equipment, wood cutting machine, precision measure equipment.

Block EGW25-SC-Z0-H-H is used in conjunction with the EGR25R4000H profile rail.
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies.
Application: automatic equipment, high speed transfer device, semiconductor
equipment, wood cutting machine, precision measure equipment.

Block EGW30-CC-Z0-H is used in conjunction with the EGR30R4000H profile rail.
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies.
Application: automatic equipment, high speed transfer device, semiconductor
equipment, wood cutting machine, precision measure equipment.

Block EGW35-SC-Z0-H is used in conjunction with the EGR35R4000H profile rail.
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies.
Application: automatic equipment, high speed transfer device, semiconductor
equipment, wood cutting machine, precision measure equipment.

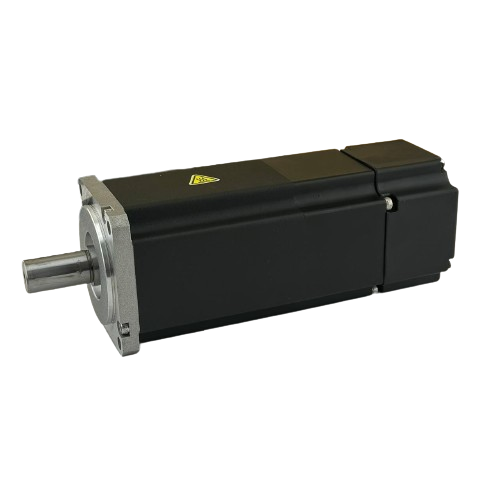

Hiwin FR-LS-40-2-B-6-06-A AC servo motor with brake.
The FR-LS-40-2-B-6-06-A has 17bit encoder.
Frame size 60 mm.
Rated power 400 W.
Rated voltage 230 VAC.
Torque rated (peak) 1.27 (3.81) Nm.
Speed rated (peak) 3000 (4500) rpm.
Current rated (peak) 2.5 (7.5) A.
Weight 1.86 kg.

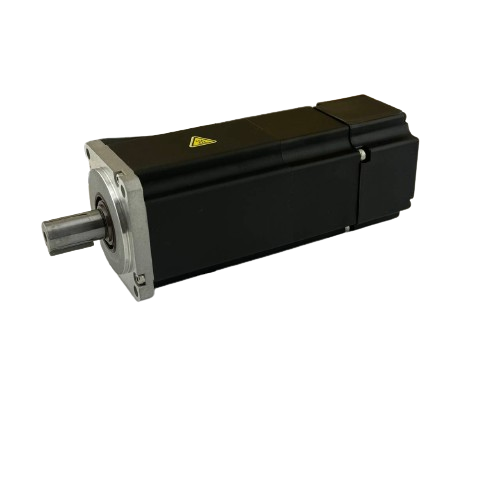

Hiwin FR-LS-40-2-B-6-06-D AC servo motor with brake.
The FR-LS-40-2-B-6-06-D has 17bit encoder.
Frame size 60 mm.
Rated power 400 W.
Rated voltage 230 VAC.
Torque rated (peak) 1.27 (3.81) Nm.
Speed rated (peak) 3000 (4500) rpm.
Current rated (peak) 2.5 (7.5) A.
Weight 1.86 kg.

Grease nipple kit GNZ-05-BOX
A set of nipples for lubrication of carriages size 15.

The double end seal allows the use of HIWIN linear guides in dirty and dusty environment. The double seal effectively prevents debris from entering the carriage. Designation of the seal HG15-DD-KIT: HG15 – seal for the HG series profile rail guide size 15 (high load capacity rolling guide with ball rolling elements); DD – for carriages with double end seal; KIT – fastening elements kit (for both ends).

Lubrication cartridge reduces costs by reducing lubricant consumption and increasing inter-service intervals, therefore the service life of the guide increases. The cartridge can be filled with any appropriate grease depending on the required operating conditions and does not require specific maintenance. The cartridge can be removed or installed on a carriage already mounted on the guide and can be used regardless of the installation dimensions. Designation of the cartridge HG15-E2-KIT-SS: HG15 – cartridge for the HG series profile rail guide size 15 (high load capacity rolling guide with ball rolling elements); E2 – lubrication cartridge; KIT – fastening elements kit; SS – carriage with standard mechanical end-seal

Double end seal with scraper allows the use of HIWIN linear guides in dirty and dusty environment including hot chips and abrasive particles. The scraper protects the end seals and prevents their damage. Designation of the seal HG15-KK-KIT: HG15 – seal for the HG series profile rail guide size 15 (high load capacity rolling guide with ball rolling elements); KK – for carriages with double end seal and scraper; KIT – fastening elements kit (for both ends).

End seal with double sealing lip, improved bottom seal and additional top seal. Allows the use of HIWIN linear guides in extremely dirty and dusty environment. Sealing system provides optimal protection against the dirt, dust and liquids. The end seal is resistant to oil, grease and wear. An additional top seal protects from debris entering through the top the guide. An improved bottom seal protects the side-walls of the guide from debris. Designation of the seal HG15-SW-KIT-C: HG15 – seal for the HG series profile rail guide size 15 (high load capacity rolling guide with ball rolling elements); SW – carriage with end seal with double sealing lip + bottom seal + additional top seal; KIT – fastening elements kit (for both ends); C - kit for normal length carriage.
