Karietėlės

MSA65E is a carriage with installation on both (top or bottom) sides.

Cross References
HGW65CAZAH (HIWIN)
TRH65FNNZ0 (TBI)
SBI65FLNK2 (SBC)
R165162310 (Rexroth)
HSR65ASSC1H (THK)
LLRHC65AT1P3 (Ewellix)

The MSA-E/LE is a carriage with flange. This carriage is available in two different lengths, normal (MSA-E) or long (MSA-LE). Fastening holes are accessible either from top (S1) or bottom (S2). Full ball MSA-Series is especially suited for high precision and high rigidity required motion, for normal and high load.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

MSA65LE (Long Flange) is a carriage with installation on both (top or bottom) sides.

Cross References
HGW65HAZAH (HIWIN)
TRH65FENZ0 (TBI)
SBI65FLLNK2 (SBC)
R165361320 (Rexroth)
HSR65HASSH (THK)
LLRHC65LAT0P3 (Ewellix)

The MSA-E/LE is a carriage with flange. This carriage is available in two different lengths, normal (MSA-E) or long (MSA-LE). Fastening holes are accessible either from top (S1) or bottom (S2). Full ball MSA-Series is especially suited for high precision and high rigidity required motion, for normal and high load.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

MSA65LS is a Long Narrow type of PMI linear guideway, can be installed from top side of carriage.

Cross References
HGH65HAZAH (HIWIN)
TRH65VENZ0 (TBI)
SBI65SLLNK2 (SBC)
R162361310 (Rexroth)
HSR65HRSSH (THK)
LLRHC65LUT1P3 (Ewellix)

The MSA S/LS represents a streamlined square-shaped carriage, offered in both standard (MSA-S) and extended (MSA-LS) lengths. Notably, mounting holes are exclusively positioned on the upper side. Specifically tailored for applications demanding both precision and robustness, the MSA Series caters to both regular and substantial load requirements.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

MSA65S is a narrow type of PMI linear guideway, can be installed from top side of carriage.

Cross References
HGH65CAZAH (HIWIN)
TRH65VNNZ0 (TBI)
SBI65SLK2 (SBC)
R162261310 (Rexroth)
HSR65CRSSC1H(THK)
LLRHC65UT1P3 (Ewellix)

The MSA S/LS represents a streamlined square-shaped carriage, offered in both standard (MSA-S) and extended (MSA-LS) lengths. Notably, mounting holes are exclusively positioned on the upper side. Specifically tailored for applications demanding both precision and robustness, the MSA Series caters to both regular and substantial load requirements.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

Cross References
EGW15CAZAH / EGW15CAZBH / EGW15CAZ0H (HIWIN)
TRS15FNNZ0 (TBI)
SR15TBUUC1H / SR15TBUUC0H / SR15TBUUH (THK)

MSB15E is a normal length low flange carriage. The mounting holes are accessible from either the top (S1) or the bottom (S2). The MSB series is used for the most compact solution for light to normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TE) or normal (MSB-E). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGH15CAZAH / EGH15CAZBH / EGH15CAZ0H (HIWIN)
TRS15VNNZ0 (TBI)
SBS15SLK2 / SBS15SLK3 / SBS15SLK1 (SBC)
SR15WUUC1H / SR15WUUC0H / SR15WUUH (THK)

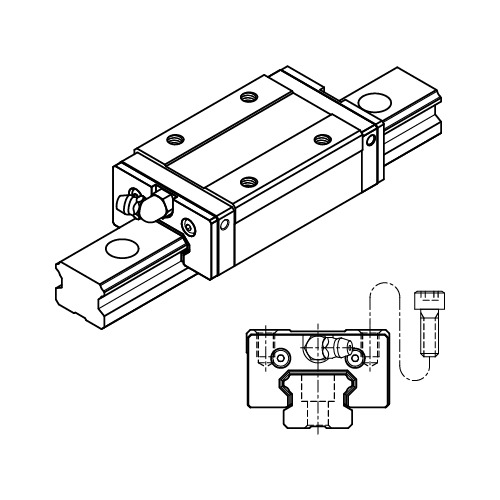

MSB15S is a normal length low narrow square type carriage. Fastening holes are only accessible from the top. The MSB-Series is used for the most compact solution for light and normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TS) or normal (MSB-S). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGW15SCZAH / EGW15SCZBH / EGW15SCZ0H (HIWIN)
TRS15FSNZ0 (TBI)
SBS15FVK2 / SBS15FVK3 / SBS15FVK1 (SBC)
SR15WUUC1H / SR15WUUC0H / SR15SBUUC0H (THK)

MSB15TE is a short length low flange carriage. The mounting holes are accessible from either the top (S1) or the bottom (S2). Short carriages are mainly used in pairs. The MSB series is used for the most compact solution for light to normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TE) or normal (MSB-E). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGH15SAZAH / EGH15SAZBH / EGH15SAZ0H (HIWIN)
TRS15VSZ0 (TBI)
SBS15SVK2 / SBS15SVK3 / SBS15SVK3 (SBC)
SR15VUUC1H / SR15VUUC0H / SR15VUUH (THK)

MSB15TS is a short length low narrow square type carriage. Fastening holes are only accessible from the top. Short carriages are mostly used in pairs. The MSB-Series is used for the most compact solution for light and normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TS) or normal (MSB-S). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGW20CAZAH / EGW20CAZBH / EGW20CAZ0H (HIWIN)
TRS20FNNZ0 (TBI)
R169381310 (Rexroth)
SR20TBUUC1H / SR20TBUUC0H / SR20TBUUH (THK)

MSB20E is a normal length low flange carriage. The mounting holes are accessible from either the top (S1) or the bottom (S2). The MSB series is used for the most compact solution for light to normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TE) or normal (MSB-E). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGH20CAZAH / EGH20CAZBH /EGH20CAZ0H (HIWIN)
TRS20VNNZ0 (TBI)
SBS20SLK2 / SBS20SLK3 / SBS20SLK1 (SBC)
R169481310 (Rexroth)
SR20WUUC1H / SR20WUUC0H / SR20WUUH (THK)

MSB20S is a normal length low narrow square type carriage. Fastening holes are only accessible from the top. The MSB-Series is used for the most compact solution for light and normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TS) or normal (MSB-S). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGW20SCZ0H / EGW20SCZBH / EGW20SCZ0H (HIWIN)
TRS20FSNZ0 (TBI)
SBS20FVK2 / SBS20FVK3 / SBS20FVK1 (SBC)
R166381310 (Rexroth)
SR20SBUC1H / SR20SBUUC0H / SR20SBUUH (THK)

MSB20TE is a short length low flange carriage. The mounting holes are accessible from either the top (S1) or the bottom (S2). Short carriages are mainly used in pairs. The MSB series is used for the most compact solution for light to normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TE) or normal (MSB-E). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGH20SAZAH / EGH20SAZBH / EGH20SAZ0H (HIWIN)
TRS20VSZ0 (TBI)
SBS20SVK1 / SBS20SVK2 / SBS20SVK1 (SBC)
R166481310 (Rexroth)
SR20VUUC1H / SR20VUUC0H / SR20VUUH (THK)

MSB20TS is a short length low narrow square type carriage. Fastening holes are only accessible from the top. Short carriages are mostly used in pairs. The MSB-Series is used for the most compact solution for light and normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TS) or normal (MSB-S). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGW25CAZAH / EGW25CAZ0H / EGW25CAZ0H (HIWIN)
TRS25FNNZ0 (TBI)
R169329410 (Rexroth)
SR25TBUUC1H / SR25TBUUC0H / SR25TBUUH (THK)

MSB25E is a normal length low flange carriage. The mounting holes are accessible from either the top (S1) or the bottom (S2). The MSB series is used for the most compact solution for light to normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TE) or normal (MSB-E). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGH25CAZAH / EGH25CAZBH / EGH25CAZ0H (HIWIN)
TRS25VNNZ0 (TBI)
SBS25SLK2 / SBS25SLK3 / SBS25SLK1 (SBC)
R169421310 (Rexroth)
SR25WUUC1H / SR25WUUC0H / SR25WUUH (THK)

MSB25S is a normal length low narrow square type carriage. Fastening holes are only accessible from the top. The MSB-Series is used for the most compact solution for light and normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TS) or normal (MSB-S). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGW25SCZAH / EGW25SCZBH / EGW25SCZ0H (HIWIN)
TRS25FSNZ0 (TBI)
SBS25FVK1 / SBS25FVK2 / SBS25FVK0 (SBC)
R166321310 (Rexroth)
SR25SBUUC1H / SR25SBUUC0H / SR25SBUUH (THK)

MSB25TE is a short length low flange carriage. The mounting holes are accessible from either the top (S1) or the bottom (S2). Short carriages are mainly used in pairs. The MSB series is used for the most compact solution for light to normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TE) or normal (MSB-E). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGH25SAZAH / EGH25SAZBH / EGH25SAZAH (HIWIN)
TRS25VSZ0 (TBI)
SBS25SVK1 / SBS25SVK2 / SBS25SVK1 (SBC)
R166421310 (Rexroth)
SR25VUUC1H / SR25VUUC0H / SR25VUUH (THK)

MSB25TS is a short length low narrow square type carriage. Fastening holes are only accessible from the top. Short carriages are mostly used in pairs. The MSB-Series is used for the most compact solution for light and normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TS) or normal (MSB-S). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGW30CAZAH / EGW30CAZBH / EGW30CAZ0H (HIWIN)
TRS30FNNZ0 (TBI)
SR30TBUUC1H / SR30TBUUC0H / SR30TBUUH (THK)

MSB30E is a normal length low flange carriage. The mounting holes are accessible from either the top (S1) or the bottom (S2). The MSB series is used for the most compact solution for light to normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TE) or normal (MSB-E). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGH30CAZAH / EGH30CAZBH / EGH30CAZ0H (HIWIN)
TRS30VNNZ0 (TBI)
SBS30SLK2 / SBS30SLK3 / SBS30SLK1 (SBC)
SR30WUUC1H / SR30WUUC0H / SR30WUUH (THK)

MSB30S is a normal length low narrow square type carriage. Fastening holes are only accessible from the top. The MSB-Series is used for the most compact solution for light and normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TS) or normal (MSB-S). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGW30SCZAH / EGW30SCZBH / EGW30SCZ0H (HIWIN)
TRS30FSNZ0 (TBI)
SBS30FVK1 (SBC)
SR30SBUC1H / SR30SBUC0H / SR30SBUH (THK)

MSB30TE is a short length low flange carriage. The mounting holes are accessible from either the top (S1) or the bottom (S2). Short carriages are mainly used in pairs. The MSB series is used for the most compact solution for light to normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TE) or normal (MSB-E). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGH30SAZAH (HIWIN)
TRS30VSZ0 (TBI)
SR30VUUC1H / SR30VUUC0H / SR30VUUH (THK)

MSB30TS is a short length low narrow square type carriage. Fastening holes are only accessible from the top. Short carriages are mostly used in pairs. The MSB-Series is used for the most compact solution for light and normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TS) or normal (MSB-S). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGW35CAZAH / EGW35CAZBH / EGW35CAZ0H (HIWIN)
TRS35FNNZ0 (TBI)
SR35TBUUC1H / SR35TBUUC0H / SR35TBUUH (THK)

MSB35E is a normal length low flange carriage. The mounting holes are accessible from either the top (S1) or the bottom (S2). The MSB series is used for the most compact solution for light to normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TE) or normal (MSB-E). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGH35CAZAH / EGH35CAZBH / EGH35CAZ0H (HIWIN)
TRS35VNNZ0 (TBI)
SBS35SLK2 / SBS35SLK3 / SBS35SLK1 (SBC)
SR35WUUC1H / SR35WUUC0H / SR35WUUH (THK)

MSB35S is a normal length low narrow square type carriage. Fastening holes are only accessible from the top. The MSB-Series is used for the most compact solution for light and normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TS) or normal (MSB-S). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGW35SCZAH / EGW35SCZBH / EGW35SCZ0H (HIWIN)
TRS35FSNZ0 (TBI)
SR35SBUC1H / SR35SBUC0H / SR35SBUH (THK)

MSB35TE is a short length low flange carriage. The mounting holes are accessible from either the top (S1) or the bottom (S2). Short carriages are mainly used in pairs. The MSB series is used for the most compact solution for light to normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TE) or normal (MSB-E). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGH35SAZAH / EGH35SAZBH / EGH35SAZ0H (HIWIN)
TRS35VSZ0 (TBI)
SR35VUUC1H / SR35VUUC0H / SR35VUUH (THK)

MSB35TS is a short length low narrow square type carriage. Fastening holes are only accessible from the top. Short carriages are mostly used in pairs. The MSB-Series is used for the most compact solution for light and normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TS) or normal (MSB-S). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.
