2ELD2-CAN7020B Drive
Leadshine 2ELD2-CAN7020B dual-axis servo drive.
Rated power 2x750 W.
Input voltage 24 - 70 VDC.
Current rated (peak) 2x20 (80) A
2ELD2-CAN7020B takes CANopen or Analog control modes.
User-configurable I/O: 2x4 DI and 2x2 DO.
328.00 € 328.0 EUR
-

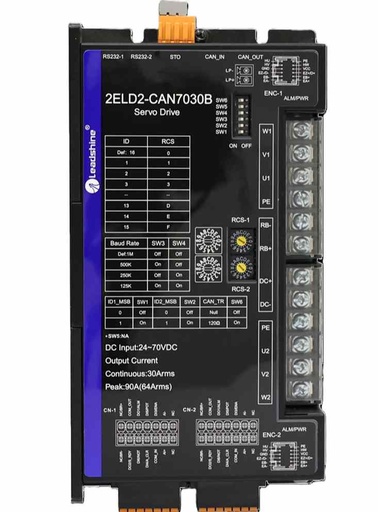

2ELD2-CAN7030B Drive
Leadshine 2ELD2-CAN7030B dual-axis servo drive.
Rated power 2x1200 W.
Input voltage 24 - 70 VDC.
Current rated (peak) 2x30 (90) A
2ELD2-CAN7030B takes CANopen or Analog control modes.
User-configurable I/O: 2x4 DI and 2x2 DO.
409.20 € 409.2 EUR
-
2ELD2-RS7020B Drive
Leadshine 2ELD2-RS7020B dual-axis servo drive.
Rated power 2x750 W.
Input voltage 24 - 70 VDC.
Current rated (peak) 2x20 (80) A.
2ELD2-RS7020B takes Modbus RTU over RS485 or Pulse+Direction control modes.
User-configurable I/O: 2x4 DI and 2x2 DO.

320.00 € 320.0 EUR
-
2ELD2-RS7030B Drive
Leadshine 2ELD2-RS7030B dual-axis servo drive.
Rated power 2x1200 W.
Input voltage 24 - 70 VDC.
Current rated (peak) 2x30 (90) A
2ELD2-RS7030B takes Modbus RTU over RS485 or Pulse+Direction control modes.
User-configurable I/O: 2x4 DI and 2x2 DO.
340.00 € 340.0 EUR
-
42CM08-1A Motor
Leadshine 42CM08-1A NEMA 17 stepper motor.
Holding torque 0.8 Nm.
Current 1.50 A.
60 mm (2.36 inch) long.
5 mm (0.197 inch) shaft size.
16.00 € 16.0 EUR
-
CABLE-BMAH5M0-124-TS Cable
Leadshine CABLE-BMAH5M0-124-TS absolute encoder cable for servo systems.
CABLE-BMAH5M0-124-TS is for ELM1/2 series motors and EL6/EL7/EL8 series drives.
Leadshine CABLE-BMAH5M0-124-TS is for connect an absolute servo motor encoder.
5.0 meters (16.4 foots) long.
50.00 € 50.0 EUR
-
CABLE-BMD1M5-273-T Cable
Leadshine CABLE-BMD1M5-273-T encoder cable for servo systems.
CABLE-BMD1M5-273-T is for ELVM series motors and ELD3 series drives.
Leadshine CABLE-BMD1M5-273-T is for connect a single turn servo motor encoder.
1.5 meters (4.9 foots) long.
6.00 € 6.0 EUR
-
CABLE-BMD1M5-295 Cable
Leadshine CABLE-BMD1M5-295 encoder cable for servo systems.
CABLE-BMD1M5-295 is for ELVM series motors and ELD3 series drives.
Leadshine CABLE-BMD1M5-295 is for connect a single turn servo motor incremental optical encoder.
1.5 meters (4.9 foots) long.
6.00 € 6.0 EUR
-
CABLE-PC Cable
Leadshine CABLE-PC cable for tuning stepper systems.
CABLE-PC cable for communication cable to DM/EM series stepper drivers.
RS232.
1.2 meters (3.9 foots) long.
1.86 € 1.86 EUR
-
CABLE-PC-1 Cable
Leadshine CABLE-PC-1 cable for tuning stepper and servo systems.
RS232.
1.2 meters (3.9 foots) long.
2.05 € 2.05 EUR
-
CABLE-RZD1M5-123 Cable
Leadshine CABLE-RZD1M5-123 power cable for servo systems.
CABLE-RZD1M5-123 is for ELVM series motors and ELD2 series drives.
1.5 meters (4.9 foots) long.
6.00 € 6.0 EUR
-
CABLE-RZD1M5-143 Cable
Leadshine CABLE-RZD1M5-143 power cable for servo systems.
CABLE-RZD1M5-143 is for ELVM60 type motors and ELD2 series drives.
1.5 meters (4.9 foots) long.
6.00 € 6.0 EUR
-
CABLE-RZD1M5-253 Cable
Leadshine CABLE-RZD1M5-253 power cable for servo systems.
CABLE-RZD1M5-253 is for ELVM60 and ELVM80 type motors and ELD2 series drives.
1.5 meters (4.9 foots) long.
6.00 € 6.0 EUR
-
CABLE-RZH5M0-114-TS Cable
Leadshine CABLE-RZH5M0-114-TS power cable for servo systems.
CABLE-RZH5M0-114-TS is for ELM1/2 series motors without brake and EL6/EL7/EL8 series drivers.
5.0 meters (16.4 foots) long.
20.00 € 20.0 EUR
-
CABLE-RZSH5M0-114-TS Cable
Leadshine CABLE-RZSH5M0-114-TS power cable for servo systems.
CABLE-RZSH5M0-114-TS is for ELM1/2 series motors with Brake and EL6/EL7/EL8 series drivers.
5.0 meters (16.4 foots) long.
40.00 € 40.0 EUR
-
CABLE-TYPEC2M0 Cable (Leadshine)
Leadshine CABLE-TYPEC2M0 cable for tuning servo systems.
CABLE-TYPEC2M0 cable for communication cable to EL7 and EL8 series servo drivers.
2 meters (6.6 foots) long.
5.60 € 5.6000000000000005 EUR
-
CABLEH-BM10M0 Cable
Leadshine CABLEH-BM10M0 encoder cable for CS-M/CS-D series closed loop stepper systems.
10.0 meters (32.8 foots) long.
26.00 € 26.0 EUR
-
CABLEH-BM3M0 Cable
Leadshine CABLEH-BM3M0 encoder cable for CS-M/CS-D series closed loop stepper systems.
3.0 meters (9.8 foots) long.
10.00 € 10.0 EUR
-
CABLEH-RZ10M0 Cable
Leadshine CABLEH-RZ10M0 power cable for CS-M/CS-D series closed loop stepper systems.
10.0 meters (32.8 foots) long.
30.00 € 30.0 EUR
-
CABLEH-RZ3M0 Cable
Leadshine CABLEH-RZ3M0 power cable for CS-M/CS-D series closed loop stepper systems.
3.0 meters (9.8 foots) long.
10.00 € 10.0 EUR
-
CS-D508 Driver
Leadshine CS-D508 closed loop stepper driver.
Input voltage of 20 - 50 VDC.
Output current of 0.50 - 8.00 A.
CS-D508 takes step & direction (PUL/DIR) or CW/CCW control modes. Closed loop stepper driver Leadshine CS-D508 is easy to setup and configure via DIP switches.
76.00 € 76.0 EUR
-
CS-D808 Driver
Leadshine CS-D808 closed loop stepper driver.
Input voltage of 20 - 80 VDC.
Output current of 0.50 - 8.00 A.
CS-D808 takes step & direction (PUL/DIR) or CW/CCW control modes. Closed loop stepper driver Leadshine CS-D808 is easy to setup and configure via DIP switches.
98.00 € 98.0 EUR
-
CS-M22313 Motor
Leadshine CS-M22313 NEMA 23 closed loop stepper motor.
Holding torque 1.3 Nm.
Current 4.00 A.
75 mm (2.95 inch) long.
8 mm (0.315 inch) shaft size.
Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder.
58.00 € 58.0 EUR
-
CS-M22323 Motor
Leadshine CS-M22323 NEMA 23 closed loop stepper motor.
Holding torque 2.3 Nm.
Current 5.00 A.
96 mm (3.78 inch) long.
8 mm (0.315 inch) shaft size.
Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder.
58.00 € 58.0 EUR
-
CS-M23485 Motor
Leadshine CS-M23485 NEMA 34 closed loop stepper motor.
Holding torque 8.5 Nm.
Current 6.00 A.
147 mm (5.79 inch) long.
14 mm (0.551 inch) shaft size.
Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder.
120.00 € 120.0 EUR
-
D57CM31-4A Motor
Leadshine D57CM31-4A NEMA 23 stepper motor.
Holding torque 3.1 Nm.
Current 4 A.
88 mm (3.46 inch) long.
8 mm (0.315 inch) shaft size.
30.00 € 30.0 EUR
-
DM432C Drive
Leadshine DM432C stepper driver.
Input voltage of 18 - 40 VDC.
Output current of 0.10 - 3.20 A.
DM432C takes step & direction (PUL/DIR) or CW/CCW control. Stepper driver Leadshine DM432C is easy to setup and configure via DIP switches.
50.00 € 50.0 EUR
-
DM556E Drive
Leadshine DM556E stepper driver.
Input voltage of 18 - 50 VDC.
Output current of 1.80 - 5.60 A.
DM556E takes step & direction (PUL/DIR) control. Stepper driver Leadshine DM556E is easy to setup and configure via DIP switches.
44.00 € 44.0 EUR
-
DM860E Driver
Leadshine DM860E. 2-phase and 4-phase stepper driver.
Input voltage of 24 - 74 VDC.
Output current of 2.40 - 7.20 A.
DM860E takes step & direction (PUL/DIR) or CW/CCW control. Stepper driver Leadshine DM860E is easy to setup and configure via DIP switches.
60.00 € 60.0 EUR
-
EL7-EC1000N Drive
Leadshine EL7-EC1000N servo drive.
Rated power 1000 W.
Input voltage 230 VAC.
Current rated (peak) 7.0 (18.7) A.
EL7-EC1000N takes EtherCAT, Modbus RTU, Pulse+Direction or Analog control modes.
User-configurable I/O: 8 DI, 5 DO.
234.00 € 234.0 EUR
-
EL7-EC1500N Drive (Leadshine)
Leadshine EL7-EC1500N servo drive.
Rated power 1500 W.
Input voltage 230 VAC.
Current rated (peak) 9.5 (31.1) A.
EL7-EC1500N takes EtherCAT, Modbus RTU, Pulse+Direction or Analog control modes.
User-configurable I/O: 8 DI, 5 DO.
392.00 € 392.0 EUR
-
EL7-EC2000N Drive
Leadshine EL7-EC2000N servo drive.
Rated power 2000 W.
Input voltage 230 VAC.
Current rated (peak) 12.0 (36.0) A.
EL7-EC2000N takes EtherCAT, Modbus RTU, Pulse+Direction or Analog control modes.
User-configurable I/O: 8 DI, 5 DO.
426.00 € 426.0 EUR
