Block HGH25-CA-Z0-C is used in conjunction with the HGR25R4000H profile rail.
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error.
Application: grinding, milling, and drilling machine, lathe, machine center.

Block HGH25-CA-Z0-H is used in conjunction with the HGR25R4000H profile rail.
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error.
Application: grinding, milling, and drilling machine, lathe, machine center.

Block HGH25-CA-ZA-H is used in conjunction with the HGR25R4000H profile rail.
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error.
Application: grinding, milling, and drilling machine, lathe, machine center.

Block HGH25-CA-ZA-H is used in conjunction with the HGR25R4000H profile rail.
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error.
Application: grinding, milling, and drilling machine, lathe, machine center.

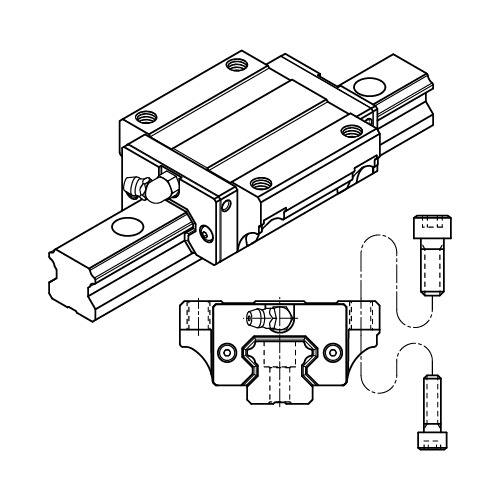

MSA25E is a carriage with installation on both (top or bottom) sides.

Cross References
HGW25CAZAH (HIWIN)
TRH25FNNZ0 (TBI)
SBI25FLNK2 (SBC)
R165121320 (Rexroth)
HSR25ASSH (THK)
LLRHC25AT1P3 (Ewellix)

The MSA-E/LE is a carriage with flange. This carriage is available in two different lengths, normal (MSA-E) or long (MSA-LE). Fastening holes are accessible either from top (S1) or bottom (S2). Full ball MSA-Series is especially suited for high precision and high rigidity required motion, for normal and high load.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

MSA25E is a carriage with installation on both (top or bottom) sides.

Cross References
HGW25CAZBH (HIWIN)
TRH25FNNZ0 (TBI)
SBI25FLNK3 (SBC)
R165122320 (Rexroth)
HSR25ASSC0H (THK)
LLRHC25AT2P3 (Ewellix)

The MSA-E/LE is a carriage with flange. This carriage is available in two different lengths, normal (MSA-E) or long (MSA-LE). Fastening holes are accessible either from top (S1) or bottom (S2). Full ball MSA-Series is especially suited for high precision and high rigidity required motion, for normal and high load.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

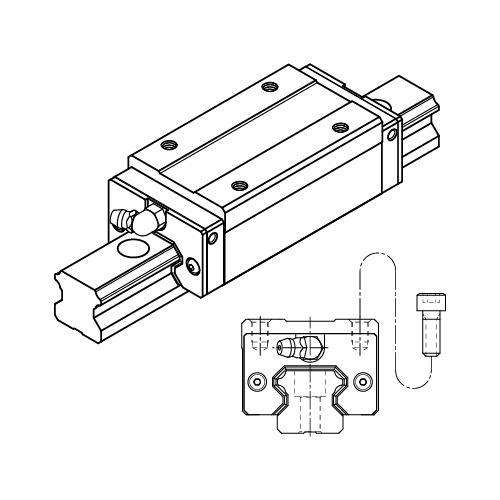

MSA25LS is a Long Narrow type of PMI linear guideway, can be installed from top side of carriage.

Cross References
HGH25HAZAH (HIWIN)
TRH25VENZ0 (TBI)
SBI25SLLNK1 (SBC)
R165382320 (Rexroth)
HSR25HRSSH (THK)
LLRHC25LUT1P3 (Ewellix)

The MSA S/LS represents a streamlined square-shaped carriage, offered in both standard (MSA-S) and extended (MSA-LS) lengths. Notably, mounting holes are exclusively positioned on the upper side. Specifically tailored for applications demanding both precision and robustness, the MSA Series caters to both regular and substantial load requirements.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

MSA25LS is a Long Narrow type of PMI linear guideway, can be installed from top side of carriage.

Cross References
HGH25HAZBH (HIWIN)
TRH25VENZ0 (TBI)
SBI25SLLNK3 (SBC)
R165322320 (Rexroth)
HSR25HRSSC0H (THK)
LLRHC25LUT2P3 (Ewellix)

The MSA S/LS represents a streamlined square-shaped carriage, offered in both standard (MSA-S) and extended (MSA-LS) lengths. Notably, mounting holes are exclusively positioned on the upper side. Specifically tailored for applications demanding both precision and robustness, the MSA Series caters to both regular and substantial load requirements.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

MSA25LS is a Long Narrow type of PMI linear guideway, can be installed from top side of carriage.

Cross References
HGH25HAZ0H (HIWIN)
TRH25VEZ0 (TBI)
SBI25SLLNK1 (SBC)
R165329320 (Rexroth)
HSR25HRSSH (THK)
LLRHC25LUT1P3 (Ewellix)

The MSA S/LS represents a streamlined square-shaped carriage, offered in both standard (MSA-S) and extended (MSA-LS) lengths. Notably, mounting holes are exclusively positioned on the upper side. Specifically tailored for applications demanding both precision and robustness, the MSA Series caters to both regular and substantial load requirements.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

MSA25S is a narrow type of PMI linear guideway, can be installed from top side of carriage.

Cross References
HGH25CAZAH (HIWIN);
TRH25VNNZ0 (TBI);
SBI25SLK2 (SBC);
R162221325 (Rexroth);
HSR25RSSC1H (THK);
LLRHC25UT1P3 (Ewellix);

The MSA S/LS represents a streamlined square-shaped carriage, offered in both standard (MSA-S) and extended (MSA-LS) lengths. Notably, mounting holes are exclusively positioned on the upper side. Specifically tailored for applications demanding both precision and robustness, the MSA Series caters to both regular and substantial load requirements.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

MSA25S is a narrow type of PMI linear guideway, can be installed from top side of carriage.

Cross References
HGH25CAZBH (HIWIN)
TRH25VNNZ0 (TBI)
SBI25SLK3 (SBC)
R162222320 (Rexroth)
HSR25CRSSC0H(THK)
LLRHC25UT2P3 (Ewellix)

The MSA S/LS represents a streamlined square-shaped carriage, offered in both standard (MSA-S) and extended (MSA-LS) lengths. Notably, mounting holes are exclusively positioned on the upper side. Specifically tailored for applications demanding both precision and robustness, the MSA Series caters to both regular and substantial load requirements.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

MSA25S is a narrow type of PMI linear guideway, can be installed from top side of carriage.

Cross References
HGH25CAZ0H (HIWIN)
TRH25VNNZ0 (TBI)
SBI25SLK1 (SBC)
R162229320 (Rexroth)
HSR25CRSSH(THK)
LLRHC25UT0P3 (Ewellix)

The MSA S/LS represents a streamlined square-shaped carriage, offered in both standard (MSA-S) and extended (MSA-LS) lengths. Notably, mounting holes are exclusively positioned on the upper side. Specifically tailored for applications demanding both precision and robustness, the MSA Series caters to both regular and substantial load requirements.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

MSA25S is a narrow type of PMI linear guideway, can be installed from top side of carriage.

Cross References
HGH25CAZAH+ZZ (HIWIN);
HSR25CRZZC1H (THK);
LLRHC25UT1P3 (Ewellix);
R162221320 (Rexroth);
SB125SLK2 (SBC);
TRH25FNNZO (TBI).

The MSA S/LS represents a streamlined square-shaped carriage, offered in both standard (MSA-S) and extended (MSA-LS) lengths. Notably, mounting holes are exclusively positioned on the upper side. Specifically tailored for applications demanding both precision and robustness, the MSA Series caters to both regular and substantial load requirements.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

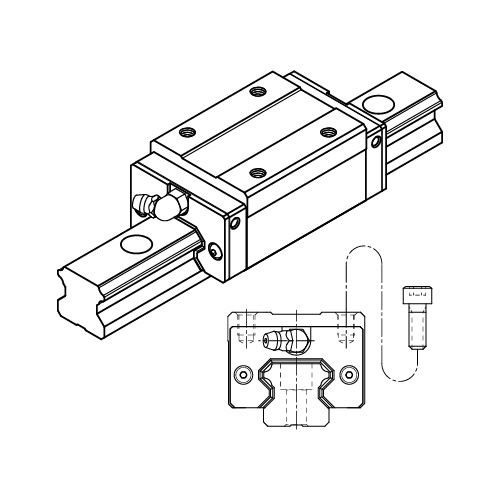

MSA55S is a narrow type of PMI linear guideway, can be installed from top side of carriage.

Cross References
HGH55CAZAH (HIWIN)
TRH55VNNZ0 (TBI)
SBI55SLK2 (SBC)
R162251310 (Rexroth)
HSR55CRSSC1H (THK)
LLRHC55UT1P3 (Ewellix)

The MSA S/LS represents a streamlined square-shaped carriage, offered in both standard (MSA-S) and extended (MSA-LS) lengths. Notably, mounting holes are exclusively positioned on the upper side. Specifically tailored for applications demanding both precision and robustness, the MSA Series caters to both regular and substantial load requirements.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

MSA55S is a narrow type of PMI linear guideway, can be installed from top side of carriage.

Cross References
HGH55CAZBH (HIWIN)
TRH55VNNZ0 (TBI)
SBI55SLK3 (SBC)
R162252310 (Rexroth)
HSR55CRSSC0H(THK)
LLRHC55UT2P3 (Ewellix)

The MSA S/LS represents a streamlined square-shaped carriage, offered in both standard (MSA-S) and extended (MSA-LS) lengths. Notably, mounting holes are exclusively positioned on the upper side. Specifically tailored for applications demanding both precision and robustness, the MSA Series caters to both regular and substantial load requirements.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

MSA55S is a narrow type of PMI linear guideway, can be installed from top side of carriage.

Cross References
HGH55CAZ0H (HIWIN)
TRH55VNNZ0 (TBI)
SBI55SLK1 (SBC)
R162259310 (Rexroth)
HSR55CRSSH(THK)
LLRHC55UT0P3 (Ewellix)

The MSA S/LS represents a streamlined square-shaped carriage, offered in both standard (MSA-S) and extended (MSA-LS) lengths. Notably, mounting holes are exclusively positioned on the upper side. Specifically tailored for applications demanding both precision and robustness, the MSA Series caters to both regular and substantial load requirements.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.
