Analogue: TMPE4 10/2 ELTE, Y6162Y0018 HSD
Order code: COM51600411
Speed range: 6000 - 24000 rpm,
Toolholder: ER 32,
Power: 3,3 kW,
Type of cooling: Fan on shaft
Motor type: manual tool changer
Processed material: Wood, PVC/plastic, Aluminum, Composites

Analogue: TMPE5 10/2 ELTE, Y6162Y0036 HSD, H6162H0165 HSD
Order code: COM51600380
Speed range: 6000 - 24000 rpm,
Toolholder: ER 32,
Power: 4,5 kW,
Type of cooling: Fan on shaft
Motor type: manual toolchanger
Processed material: Wood, PVC/plastic, Aluminum, Composites

Product analog: TMPE4 14/2 ELTE, TMPE 6 15/2 ELTE, Y6162Y0039 HSD
Order code: COM51600398
Speed range: 6000 - 24000 rpm,
Toolholder: ER 32
Power: 6.0 kW,
Type of cooling: Shaft driven fan cooling
Motor type: manual toolchager
Processed material: Wood, PVC/plastic, Aluminum, Composites

Analogue: TMPE4 14/2 EV
Order code: COM51600395
Speed range: 3000 - 24000 rpm,
Toolholder: ER 32,
Power: 6,0 kW,
Type of cooling: Electric fan cooling (24VDC)
Motor type: manual toolchanger
Processed material: Wood, PVC/plastic, Aluminum, Composites

Product analogs: AF110 12/2 CU ISO 30 EV ELTE, H6161H0310 HSD
Order code: COMTC710001
Speed ​​range: 3000 - 24000 rpm
Power: S1 – 3.8 kW, S6 – 4.6 kW
Voltage: 380V
Tool holder: ISO30 taper with ER 32 nut
Engine type: automatic instrument changer
Processed materials: wood, PVC/plastic, aluminum, composite materials

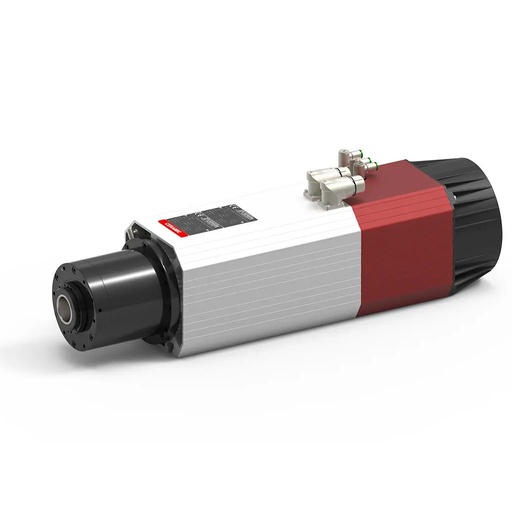

Product analogue: ES929-H6161H0824 HSD, AF110 16/2 CU ISO 30 EV ELTE
Order code: COMTC710009
Speed ​​range: 3000 - 24000 rpm
Power: S1 – 7.5 kW, S6 – 9.0 kW
Voltage: 380V
Tool holder: ISO30 taper with ER 32 nut
Engine type: automatic instrument changer
Processed materials: wood, PVC/plastic, aluminum, composite materials

Product analog: 4-075-01-0812 HOMAG
Order code: COMC0350080
Speed range: 8000 - 12000 rpm,
Toolholder: HSK25R,
Power: 0.4 kW,
Type of cooling: Fan on shaft
Motor type: manual tool changer
Processed material: Wood, PVC/plastic, Aluminum, Composites

Product analog: 4-075-01-0135 PERSKE
Order code: COMC0350096
Speed range: 8000 - 12000 rpm,
Toolholder: HSK25R,
Power: 0.4 kW,
Type of cooling: Fan on shaft
Motor type: manual tool changer
Processed material: Wood, PVC/plastic, Aluminum, Composites

Order code: COMC0350134
Speed range: 8000 - 12000 rpm,
Toolholder: HSK25R,
Power: 0.4 kW,
Type of cooling: Fan on shaft
Motor type: manual tool changer
Processed material: Wood, PVC/plastic, Aluminum, Composites

The wrenches GTS25 are designed to screw and unscrew the nuts GTS25.

These toolholders are made for the Teknomotor ATC71. They should also work in HSD ES915 and other ISO30 machines. But when working with 24000 rpm , always verify the fit is 100% correct. Be very careful when using other standard ISO30 toolholders in ATC71 motor, since most are only balanced up to 8000RPM. This can cause bearing damage to the milling motor. For this reason we always advise to use the type we offer here, which is really made for this job.
• Toolholder ISO30 according to DIN69871
• Precision class: AT3 Dynamic balancing: G2.5 (ISO1940) @ 24000rpm
• Includes pull stud (Teknomotor/HSD/ELTE compatible)
• Includes balanced ER32 collet nut
• Collet size: ER32

Connector Set, Power and Signal Connectors for spindle ATC71 serias
