SCS40UU Bushing
Description:
SCS40UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.
Cross references:
SMA40GUU (NB)

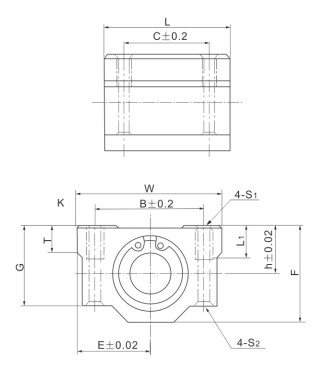

Inner Diameter: 40 mm
Highth (F): 78 mm.
Width (W): 90 mm.
Length (L): 102 mm.
Clamping bolts (S1): M10.

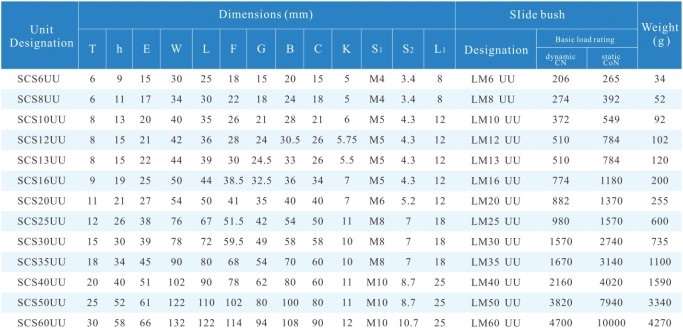

Technical information:
Shaft diameter:40 |
