High-precision cylindrical shafts made of hardened steel, used in CNC machines, 3D printers, and automated lines to ensure smooth and accurate linear motion and torque transmission.

Diameter: 75 mm.
Length: 4000 mm.
Tolerance: h6.
Material: C45.

High-precision cylindrical shafts made of hardened steel, used in CNC machines, 3D printers, and automated lines to ensure smooth and accurate linear motion and torque transmission.

Cross References:
R1000 008 00 (Rexroth)
LJM 8 (Ewellix)
W 8 (FLI)
W08 (INA)

Diameter: 8 mm.
Length: 4000 mm.
Tolerance: h6.
Material: C45.

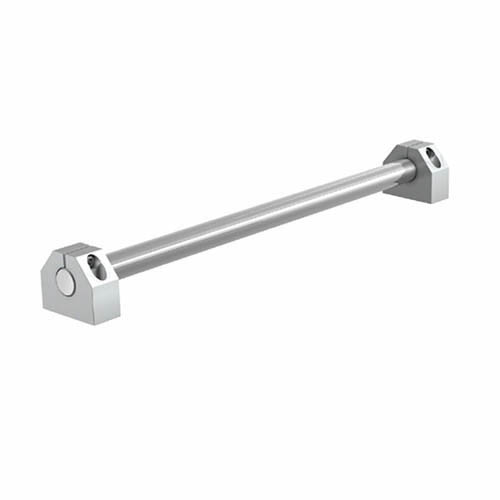

High-precision cylindrical shafts made of hardened steel, used in CNC machines, 3D printers, and automated lines to ensure smooth and accurate linear motion and torque transmission.

Cross References:
R1000 080 00 (Rexroth)
LJM 80 (Ewellix)
W 80 (FLI)
W80 (INA)

Diameter: 80 mm.
Length: 4000 mm.
Tolerance: h6.
Material: C45.

High-precision cylindrical shafts made of hardened steel, used in CNC machines, 3D printers, and automated lines to ensure smooth and accurate linear motion and torque transmission.

Cross References:
W 90 (FLI)

Diameter: 90 mm.
Length: 4000 mm.
Tolerance: h6.
Material: C45.

Double end seal with scraper allows the use of HIWIN linear guides in dirty and dusty environment including hot chips and abrasive particles. The scraper protects the end seals and prevents their damage. Designation of the seal RG55-KK-KIT: RG55 – seal for the RG series profile rail guide size 55 (wide design rolling guide with ball rolling elements); KK – for carriages with double end seal and scraper; KIT – fastening elements kit (for both ends).

Metal scraper allows the use of HIWIN linear guides in dirty and dusty environment including hot chips and abrasive particles. The scraper protects the end seals and prevents their damage. Designation of the seal WE35-ZZ-KIT: WE35 – scraper for the HG series profile rail guide size 35 (high load capacity rolling guide with ball rolling elements); ZZ – carriage with metal scraper; KIT – fastening elements kit (for both ends).

Block WEH27-CAE-Z0-C is used in conjunction with the WER27R4000H profile rail.
The WE series features equal load ratings in the radial, reverse radial and the lateral direction. This along with the wide rail, allows the guide way to be rated for high loads, moments and rigidity. The ability to use a single rail and to have the low profile with a low center of gravity is ideal where space is limited and/or high moments are required.
Application: Automatic device, transportation device, precision measure equipment, semiconductor equipment, blow mounding machine, single axis robotics.

Block WEH27-CA-Z0-H is used in conjunction with the WER27R4000H profile rail.
The WE series features equal load ratings in the radial, reverse radial and the lateral direction. This along with the wide rail, allows the guide way to be rated for high loads, moments and rigidity. The ability to use a single rail and to have the low profile with a low center of gravity is ideal where space is limited and/or high moments are required.
Application: Automatic device, transportation device, precision measure equipment, semiconductor equipment, blow mounding machine, single axis robotics.

Block WEH27-CA-ZA-H is used in conjunction with the WER27R4000H profile rail.
The WE series features equal load ratings in the radial, reverse radial and the lateral direction. This along with the wide rail, allows the guide way to be rated for high loads, moments and rigidity. The ability to use a single rail and to have the low profile with a low center of gravity is ideal where space is limited and/or high moments are required.
Application: Automatic device, transportation device, precision measure equipment, semiconductor equipment, blow mounding machine, single axis robotics.

Block WEH35-CA-Z0-H is used in conjunction with the WER35R4000H profile rail.
The WE series features equal load ratings in the radial, reverse radial and the lateral direction. This along with the wide rail, allows the guide way to be rated for high loads, moments and rigidity. The ability to use a single rail and to have the low profile with a low center of gravity is ideal where space is limited and/or high moments are required.
Application: Automatic device, transportation device, precision measure equipment, semiconductor equipment, blow mounding machine, single axis robotics.

The WER 27R4000H rail is compatible with WE and QE series blocks.
WER 27R rail can be cut and joined based on customer’s request, taking into account the length requirements, using high-precision equipment, using the manufacturer’s technologies, including cutting, grinding and joining of several rails.
Application: automatic device, transportation device, precision measure equipment, semiconductor equipment, blow mounding machine, single axis robotics.

The WER 35R4000H rail is compatible with WE and QE series blocks.
WER 35R rail can be cut and joined based on customer’s request, taking into account the length requirements, using high-precision equipment, using the manufacturer’s technologies, including cutting, grinding and joining of several rails.
Application: automatic device, transportation device, precision measure equipment, semiconductor equipment, blow mounding machine, single axis robotics.

The WER 35T4000H rail is compatible with WE and QE series blocks.
WER 35T rail can be cut and joined based on customer’s request, taking into account the length requirements, using high-precision equipment, using the manufacturer’s technologies, including cutting, grinding and joining of several rails.
Application: automatic device, transportation device, precision measure equipment, semiconductor equipment, blow mounding machine, single axis robotics.

Block WEW17-CC-ZA-H is used in conjunction with the WER17R4000H profile rail.
The WE series features equal load ratings in the radial, reverse radial and the lateral direction. This along with the wide rail, allows the guide way to be rated for high loads, moments and rigidity. The ability to use a single rail and to have the low profile with a low center of gravity is ideal where space is limited and/or high moments are required.
Application: Automatic device, transportation device, precision measure equipment, semiconductor equipment, blow mounding machine, single axis robotics.

Block WEW27-CC-Z0-H is used in conjunction with the WER27R4000H profile rail.
The WE series features equal load ratings in the radial, reverse radial and the lateral direction. This along with the wide rail, allows the guide way to be rated for high loads, moments and rigidity. The ability to use a single rail and to have the low profile with a low center of gravity is ideal where space is limited and/or high moments are required.
Application: Automatic device, transportation device, precision measure equipment, semiconductor equipment, blow mounding machine, single axis robotics.

Block WEW35-CC-Z0-H is used in conjunction with the WER35R4000H profile rail.
The WE series features equal load ratings in the radial, reverse radial and the lateral direction. This along with the wide rail, allows the guide way to be rated for high loads, moments and rigidity. The ability to use a single rail and to have the low profile with a low center of gravity is ideal where space is limited and/or high moments are required.
Application: Automatic device, transportation device, precision measure equipment, semiconductor equipment, blow mounding machine, single axis robotics.

Product analogs:
305263D (SKF)
DE4019 (NTN)

Product analog:
DE3213 (NTN)

Leadshine iCS-1703 is a compact, all-in-one stepper motor solution that combines a high-performance NEMA 17 stepper motor, a digital microstepping drive and a 14-bit incremental magnetic encoder.
Frame size: NEMA17 (42.3 mm).
Supports Pulse+Direction and CW/CCW control modes.
Input voltage range: 20–36 VDC.
Holding torque: 0.3 Nm.
User-configurable I/O: 3 DI, 1 DO.
Built-in protections: over-voltage, over-current and position-error.

Leadshine iCS-1706 is a compact, all-in-one stepper motor solution that combines a high-performance NEMA 17 stepper motor, a digital microstepping drive and a 14-bit incremental magnetic encoder.
Frame size: NEMA17 (42.0 mm).
Supports Pulse+Direction and CW/CCW control modes.
Input voltage range: 20–36 VDC.
Holding torque: 0.6 Nm.
User-configurable I/O: 3 DI, 1 DO.
Built-in protections: over-voltage, over-current and position-error.

Leadshine iCS-1708 is a compact, all-in-one stepper motor solution that combines a high-performance NEMA 17 stepper motor, a digital microstepping drive and a 14-bit incremental magnetic encoder.
Frame size: NEMA17 (42.0 mm).
Supports Pulse+Direction and CW/CCW control modes.
Input voltage range: 20–36 VDC.
Holding torque: 0.8 Nm.
User-configurable I/O: 3 DI, 1 DO.
Built-in protections: over-voltage, over-current and position-error.

Leadshine iCS-2313 is a compact, all-in-one stepper motor solution that combines a high-performance NEMA 23 stepper motor, a digital microstepping drive and a 14-bit incremental magnetic encoder.
Frame size: NEMA23 (57.2 mm).
Supports Pulse+Direction and CW/CCW control modes.
Input voltage range: 20–50 VDC.
Holding torque: 1.3 Nm.
User-configurable I/O: 3 DI, 1 DO.
Built-in protections: over-voltage, over-current and position-error.

Leadshine iCS-2321-L is a compact, all-in-one stepper motor solution that combines a high-performance NEMA 23 stepper motor, a digital microstepping drive and a 14-bit incremental magnetic encoder.
Frame size: NEMA23 (57.2 mm).
Supports Pulse+Direction and CW/CCW control modes.
Input voltage range: 20–50 VDC.
Holding torque: 2.1 Nm.
User-configurable I/O: 3 DI, 1 DO.
Built-in protections: over-voltage, over-current and position-error.

Leadshine iCS-2323 is a compact, all-in-one stepper motor solution that combines a high-performance NEMA 23 stepper motor, a digital microstepping drive and a 14-bit incremental magnetic encoder.
Frame size: NEMA23 (57.2 mm).
Supports Pulse+Direction and CW/CCW control modes.
Input voltage range: 20–50 VDC.
Holding torque: 2.3 Nm.
User-configurable I/O: 3 DI, 1 DO.
Built-in protections: over-voltage, over-current and position-error.

Leadshine iCS-2331-L is a compact, all-in-one stepper motor solution that combines a high-performance NEMA 23 stepper motor, a digital microstepping drive and a 14-bit incremental magnetic encoder.
Frame size: NEMA23 (57.2 mm).
Supports Pulse+Direction and CW/CCW control modes.
Input voltage range: 20–50 VDC.
Holding torque: 3.1 Nm.
User-configurable I/O: 3 DI, 1 DO.
Built-in protections: over-voltage, over-current and position-error.

Leadshine iCS-2430 is a compact, all-in-one stepper motor solution that combines a high-performance NEMA 24 stepper motor, a digital microstepping drive and a 14-bit incremental magnetic encoder.
Frame size: NEMA24 (60 mm).
Supports Pulse+Direction and CW/CCW control modes.
Input voltage range: 20–50 VDC.
Holding torque: 3.0 Nm
User-configurable I/O: 3 DI, 1 DO
Built-in protections: over-voltage, over-current and position-error.

Leadshine iCS-2435 is a compact, all-in-one stepper motor solution that combines a high-performance NEMA 24 stepper motor, a digital microstepping drive and a 14-bit incremental magnetic encoder.
Frame size: NEMA24 (60 mm).
Supports Pulse+Direction and CW/CCW control modes.
Input voltage range: 20–50 VDC.
Holding torque: 3.5 Nm.
User-configurable I/O: 3 DI, 1 DO.
Built-in protections: over-voltage, over-current and position-error.

Leadshine iCS-RS1706 is a compact and intelligent integrated stepper motor drive that combines a high-torque NEMA 17 stepper motor, a digital closed-loop drive and a 14-bit incremental magnetic encoder in a single unit.
Frame size: NEMA17 (42.0 mm).
Support RS485 Modbus RTU communication.
Input voltage range: 20–36 VDC.
Holding torque: 0.6 Nm.
User-configurable I/O: 3 DI, 1 DO.
Built-in protections: over-voltage, over-current and position-error.

Leadshine iCS-RS1708 is a compact and intelligent integrated stepper motor drive that combines a high-torque NEMA 17 stepper motor, a digital closed-loop drive and a 14-bit incremental magnetic encoder in a single unit.
Frame size: NEMA17 (42.0 mm).
Support RS485 Modbus RTU communication.
Input voltage range: 20–36 VDC.
Holding torque: 0.8 Nm.
User-configurable I/O: 3 DI, 1 DO.
Built-in protections: over-voltage, over-current and position-error.

Leadshine iCS-RS2313 is a compact and intelligent integrated stepper motor drive that combines a high-torque NEMA23 stepper motor, a digital closed-loop drive and a 14-bit incremental magnetic encoder in a single unit.
Frame size: NEMA23 (57.2 mm).
Support RS485 Modbus RTU communication.
Input voltage range: 20–50 VDC.
Holding torque: 1.3 Nm.
User-configurable I/O: 3 DI, 1 DO.
Built-in protections: over-voltage, over-current and position-error.

Leadshine iCS-RS2323 is a compact and intelligent integrated stepper motor drive that combines a high-torque NEMA23 stepper motor, a digital closed-loop drive and a 14-bit incremental magnetic encoder in a single unit.
Frame size: NEMA23 (57.2 mm).
Support RS485 Modbus RTU communication.
Input voltage range: 20–50 VDC.
Holding torque: 2.3 Nm.
User-configurable I/O: 3 DI, 1 DO.
Built-in protections: over-voltage, over-current and position-error.

Leadshine iEM-1703 is a compact and cost-effective integrated stepper motor that combines a NEMA 17 stepper motor, a digital microstepping drive.
Frame size: NEMA17 (42.0 mm).
Supports Pulse+Direction control mode.
Input voltage range: 20–36 VDC.
Holding torque: 0.3 Nm.
User-configurable I/O: 3 DI, 1 DO.
Built-in protections: over-voltage and over-current.
