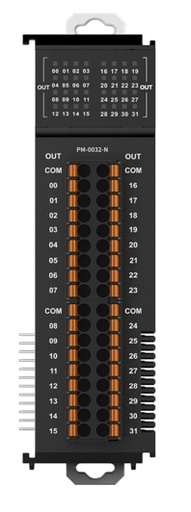

The PM-0032-N-2 is a high-performance digital output module. Featuring 32 isolated NPN (open collector) output channels, it provides a compact and efficient solution for controlling external devices such as relays, contactors, solenoids, and indicator lights.

Key Features
Channels: 32 digital outputs
Output Type: NPN (open collector)
Output Voltage: 24 VDC
Max Output Current: Typically 0.5 A per channel
Response Time: Fast switching with <1 ms delay
Isolation: Optical isolation between channels and logic circuitry
Connection: Fujitsu connector
Status Indication: LED indicators for each output channel
Mounting: DIN-rail (EN 50022 standard 35 mm)

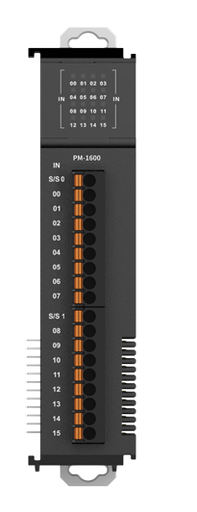

The PM-1600 is a 16-channel digital input module designed by Leadshine for use in modular industrial automation systems. It provides reliable, high-speed detection of discrete signals from field devices such as sensors, switches, and buttons. Each input channel is electrically isolated to ensure robust performance and protection against industrial electrical noise.

Key Features
Channels: 16 digital inputs
Input Types: Sourcing (PNP) or sinking (NPN)
Input Voltage: 24 VDC (typical operating range: 12–30 VDC)
Input Current: Typically 3–7 mA per channel
Isolation: Optical isolation between inputs and control logic
Response Time: Fast signal detection (<1 ms)
Connection: Removable terminal blocks for easy installation and maintenance
Status Indicators: LED indicators for all input channels
Mounting: DIN-rail (EN 50022 standard 35 mm)

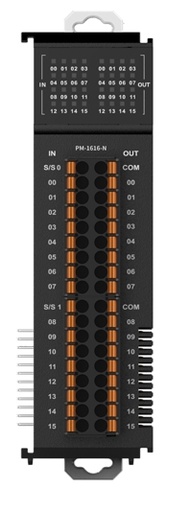

The PM-1616-N is a digital I/O module. Designed for space-efficient automation systems, it allows seamless integration of sensors, switches, actuators, and signal devices within a unified control platform.
The inputs are optically isolated for improved noise immunity and signal integrity, while the outputs are transistor-based, enabling reliable control of low-voltage DC loads.

Key Features
Channels:
16 digital inputs
16 digital outpus
Input Types: Sourcing (PNP) or sinking (NPN)
Output Type: NPN (open collector)
Output Voltage: 24 VDC
Max Output Current: 0.5 A per output channel
Isolation: Optical isolation for both inputs and outputs
Connection: Terminal block
Status Indicators: Individual LEDs for all input and output channels
Mounting: DIN-rail (EN 50022 standard 35 mm)

The PM-3200 is a 32-channel digital input module. It provides reliable, high-speed detection of discrete signals from field devices such as sensors, switches, and buttons. Each input channel is electrically isolated to ensure robust performance and protection against industrial electrical noise.

Key Features
Channels: 32 digital inputs
Input Types: Sourcing (PNP) or sinking (NPN)
Input Voltage: 24 VDC (typical operating range: 12–30 VDC)
Input Current: Typically 3–7 mA per channel
Isolation: Optical isolation between inputs and control logic
Response Time: Fast signal detection (<1 ms)
Connection: Removable terminal blocks for easy installation and maintenance
Status Indicators: LED indicators for all input channels
Mounting: DIN-rail (EN 50022 standard 35 mm)

The PM-3200-1 is a 32-channel digital input module. It provides reliable, high-speed detection of discrete signals from field devices such as sensors, switches, and buttons. Each input channel is electrically isolated to ensure robust performance and protection against industrial electrical noise.

Key Features
Channels: 32 digital inputs
Input Types: Sourcing (PNP) or sinking (NPN)
Input Voltage: 24 VDC (typical operating range: 12–30 VDC)
Input Current: Typically 3–7 mA per channel
Isolation: Optical isolation between inputs and control logic
Response Time: Fast signal detection (<1 ms)
Connection: MIL connector
Status Indicators: LED indicators for all input channels
Mounting: DIN-rail (EN 50022 standard 35 mm)

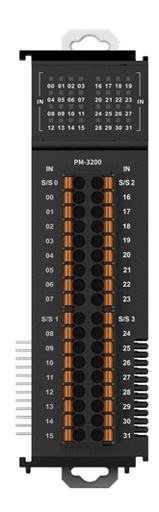

The PM-3200-2 is a 32-channel digital input module. It provides reliable, high-speed detection of discrete signals from field devices such as sensors, switches, and buttons. Each input channel is electrically isolated to ensure robust performance and protection against industrial electrical noise.

Key Features
Channels: 32 digital inputs
Input Types: Sourcing (PNP) or sinking (NPN)
Input Voltage: 24 VDC (typical operating range: 12–30 VDC)
Input Current: Typically 3–7 mA per channel
Isolation: Optical isolation between inputs and control logic
Response Time: Fast signal detection (<1 ms)
Connection: Fujitsu connector
Status Indicators: LED indicators for all input channels
Mounting: DIN-rail (EN 50022 standard 35 mm)

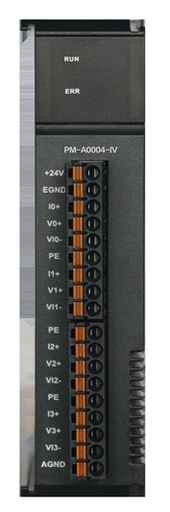

The PM-A0004-IV is a 4-channel analog output module. Each channel supports both voltage (V) and current (I) output modes, allowing flexible integration into various industrial control systems, including motion control, process automation, and data acquisition.

Key Features
Channels: 4 analog outputs
Output Types:
– Voltage: 0–5 V, 0–10 V, ±5 V, ±10 V
– Current: 0–20 mA, 4–20 mA
Resolution: 16-bit D/A conversion
Accuracy: ±0.1% (typical)
Isolation: Optical isolation between channels and system bus
Status Indicators: LEDs for power and channel activity
Connection: Screw terminals or detachable terminal blocks
Mounting: DIN-rail (EN 50022 standard 35 mm)

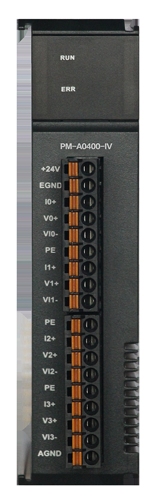

The PM-A0400-IV is a 4-channel analog input module. It supports both voltage and current input ranges, making it ideal for interfacing with a wide range of analog sensors and transmitters (e.g., temperature sensors, pressure transducers, potentiometers).

Key Features
Channels: 4 analog inputs
Input Types:
– Voltage: 0–5 V, 0–10 V, ±5 V, ±10 V
– Current: 0–20 mA, 4–20 mA
Resolution: 16-bit D/A conversion
Accuracy: ±0.1% (typical)
Isolation: Optical isolation between input channels and system bus
Status Indicators: LEDs for power and channel activity
Connection: Screw terminals or detachable terminal blocks
Mounting: DIN-rail (EN 50022 standard 35 mm)

Double end seal with scraper allows the use of HIWIN linear guides in dirty and dusty environment including hot chips and abrasive particles. The scraper protects the end seals and prevents their damage. Designation of the seal QE15-KK-KIT: QE15 – seal for the QE series profile rail guide size 15 (low installation height rolling guide with ball rolling elements (SynchMotionTM)); KK – for carriages with double end seal and scraper; KIT – fastening elements kit (for both ends).

Block QEH15-CA-ZA-H is used in conjunction with the EGR15R4000H profile rail.
The QE series linear guideway offers smooth movement, superior lubrication, quieter operation and longer running life. Therefore the QE linear guideway has broad industrial applicability. In the high-tech industry where high speed, low noise, and reduced dust generation is required, the QE series is interchangeable with the EG series.
Application: precision measure equipment, semiconductor equipment, automatic equipment, laser marking machine, can be widely applied in high-tech industry required high speed, low noise, low dust generation.

Block QHH15-CA-Z0-H is used in conjunction with the HGR15R4000H profile rail.
The QH series linear guideway offers smooth movement, superior lubrication, quieter operation and longer running life. Therefore the QH linear guideway has broad industrial applicability. In the high-tech industry where high speed, low noise, and reduced dust generation is required, the QH series is interchangeable with the HG series.
Application: precision measure equipment, semiconductor equipment, automatic equipment, laser marking machine, can be widely applied in high-tech industry required high speed, low noise, low dust generation.

Block QHH20-HA-Z0-H is used in conjunction with the HGR20R4000H profile rail.
The QH series linear guideway offers smooth movement, superior lubrication, quieter operation and longer running life. Therefore the QH linear guideway has broad industrial applicability. In the high-tech industry where high speed, low noise, and reduced dust generation is required, the QH series is interchangeable with the HG series.
Application: precision measure equipment, semiconductor equipment, automatic equipment, laser marking machine, can be widely applied in high-tech industry required high speed, low noise, low dust generation.

Block QHW20-CC-Z0-H is used in conjunction with the HGR20R4000H profile rail.
The QH series linear guideway offers smooth movement, superior lubrication, quieter operation and longer running life. Therefore the QH linear guideway has broad industrial applicability. In the high-tech industry where high speed, low noise, and reduced dust generation is required, the QH series is interchangeable with the HG series.
Application: precision measure equipment, semiconductor equipment, automatic equipment, laser marking machine, can be widely applied in high-tech industry required high speed, low noise, low dust generation.

Block QHW20-HC-Z0-H is used in conjunction with the HGR20R4000H profile rail.
The QH series linear guideway offers smooth movement, superior lubrication, quieter operation and longer running life. Therefore the QH linear guideway has broad industrial applicability. In the high-tech industry where high speed, low noise, and reduced dust generation is required, the QH series is interchangeable with the HG series.
Application: precision measure equipment, semiconductor equipment, automatic equipment, laser marking machine, can be widely applied in high-tech industry required high speed, low noise, low dust generation.

Block QHW25-CC-Z0-H is used in conjunction with the HGR20R4000H profile rail.
The QH series linear guideway offers smooth movement, superior lubrication, quieter operation and longer running life. Therefore the QH linear guideway has broad industrial applicability. In the high-tech industry where high speed, low noise, and reduced dust generation is required, the QH series is interchangeable with the HG series.
Application: precision measure equipment, semiconductor equipment, automatic equipment, laser marking machine, can be widely applied in high-tech industry required high speed, low noise, low dust generation.

Block QWW35-CC-Z0-H is used in conjunction with the WER35R4000H, WER35T4000H profile rail.
The QW series linear guideway offers smooth movement, superior lubrication, quieter operation and longer running life. Therefore the QW linear guideway has broad industrial applicability. In the high-tech industry where high speed, low noise, and reduced dust generation is required, the QW series is interchangeable with the WE series.
Application: precision measure equipment, semiconductor equipment, automatic equipment, laser marking machine, can be widely applied in high-tech industry required high speed, low noise, low dust generation.

Rolled shaft can be cut according to your requirements and drawings

2R15-10-3000-3000-0.05
2R16-10-3000-3000-0,052-FSC
Rolled shaft can be cut according to your requirements and drawings

Roller shaft can be cut according to your requirements and drawings

Roller shaft can be cut according to your requirements and drawings

Roller shaft can be cut according to your requirements and drawings

Roller shaft can be cut according to your requirements and drawings

4R25-25
