LM50UU Bushing
Description:
LM50UU - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.
Cross references:
LM50UU (FLI)
SM50GUU (NB)
LM50UU (SAMICK)
LM5080100 (IKO)

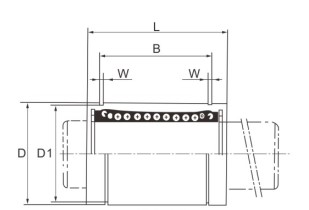

Inner Diameter (d): 50 mm.
Outer Diameter (D): 80 mm.
Length (L): 100 mm.
Dynamic Load Rating (C): 3820 N.
Static Load Rating (C₀): 7940 N.

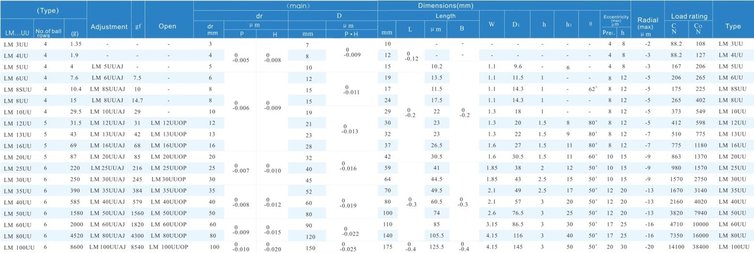

Technical information:
Shaft diameter:50 |
