LM03 Bushing (UU-standard / LUU-long)

https://sacom.lt/shop/lm03-bushing-uu-standard-luu-long-118073 https://sacom.lt/web/image/product.template/118073/image_1920?unique=1a22c81

Description:

LM03 - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.
LM03UU - standard type
LM03LUU - long type

Cross references:
SM3GUU (Nippon bearing)
SM3GWUU (Nippon bearing)

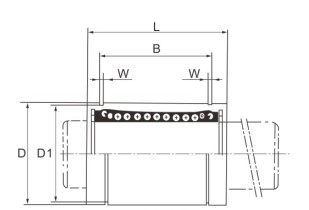

Inner Diameter (d): 3 mm.
Outer Diameter (D): 7 mm.
Length UU/LUU (L): 10 mm / 19mm
Dynamic Load Rating UU/LUU (C): 88.2 N / 139 N
Static Load Rating UU/LUU (C₀): 108 N / 216 N

1.22 € 1.22 EUR 1.22 € VAT Excluded 2.44 € VAT Excluded

Not Available For Sale

• Shaft diameter 03
• Linear ball bushing type UU (Standard) LUU (Long) + ... €

This combination does not exist.

​

ADD TO CART

Available only to registered users. You need to Login or Register to complete the transaction.

Add to wishlist

Out of Stock

Get notified when back in stock

Invalid email

We'll notify you once the product is back in stock.

Save for later

Added to your wishlist

Contact Us

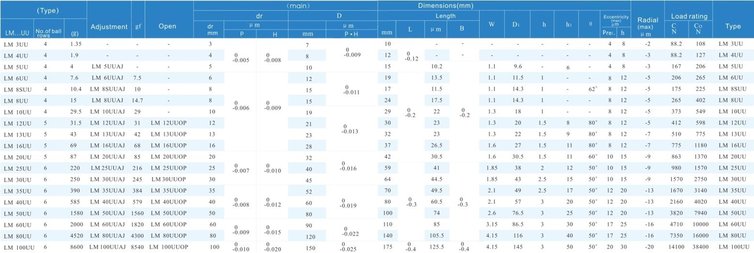

Technical information:
