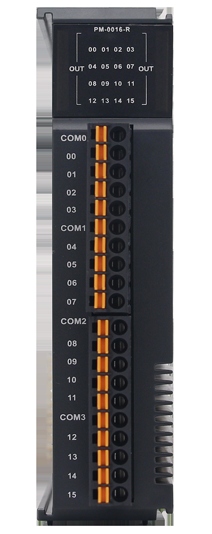

PM-0016-R Digital output module
Description:
The PM-0016-R is a 16-channel relay output module. Each output channel features an independent electromechanical relay, allowing the module to switch a wide range of AC or DC voltages and currents, including inductive loads such as solenoids, contactors, and motors.
The PM-0016-R is for applications requiring galvanic isolation, reliable switching of high-voltage or high-current loads, and noise immunity.
Key Features
Channels: 16 relay outputs
Output Type: Electromechanical, SPST-ON (Form A)
Nominal Voltage: 250 VAC / 30 VDC
Max Output Current: Typically up to 2 A per channel
Isolation: High-voltage isolation between relay outputs and control logic
Status Indicators: LED indicators for real-time output status monitoring
Connection: Terminal block
Mounting: DIN-rail (EN 50022 standard 35 mm)
Technical information:
| Brand:LEADSHINE |
