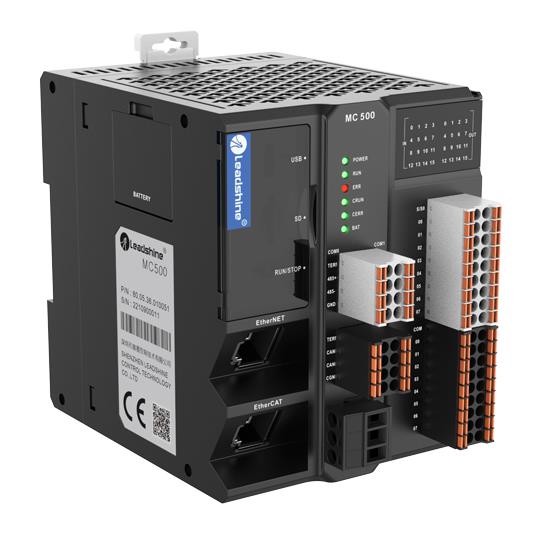

MC508CS Motion controller
Description:
MC500 series PLCs are compatible with Codesys and Leadsys Studio software
Motion Control
Supports EtherCAT control of 8 axes
6-axis high-speed pulse output at 200 kHz
Linear interpolation for up to 6 axes, circular interpolation for 3 axes
Advanced motion features: Electronic CAM (E-CAM), flying shear, and chasing shear
Intelligent Interconnection
Supports OPC UA and EtherNet/IP industrial communication protocols
CANopen distributed control for up to 32 nodes
Modbus and free communication port for flexible integration
Comprehensive Functionality
Local bus expansion supporting up to 32 I/O modules
Total I/O capacity up to 32,767 points
6 high-speed counters (200 kHz)
Built-in protections: over-temperature, over-voltage, and short circuit
Memory and Storage
Program Memory: 20 MB
Data Memory: 40 MB
Non-volatile Retention Area: 512 KB (for power-failure data retention)
SD Card Slot: Supports standard microSD cards (FAT32), maximum capacity up to 32 GB for program download and data storage
Digital I/O Specifications
Digital Inputs: 16 total
12 high-speed inputs (200 kHz)
4 standard inputs (1 kHz), NPN/PNP configurable
Digital Outputs: 16 total
12 high-speed outputs (200 kHz)
4 standard outputs (10 kHz), NPN type
Supported Programming Languages: ST, LD, CFC, SFC, FBD, IL
Technical information:
| Brand:LEADSHINE |
