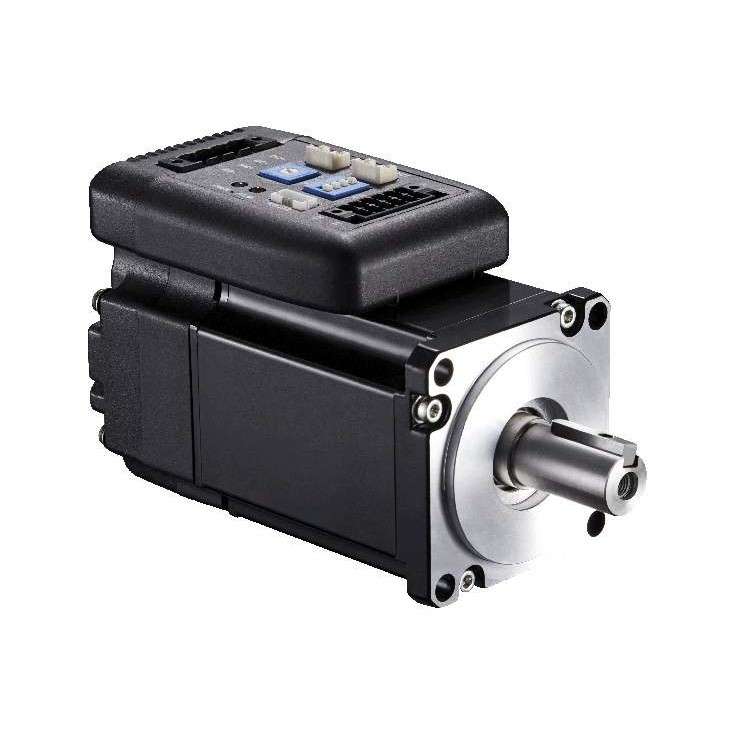

iSV2-CAN6020V48G Motor
Description:
Leadshine iSV2-CAN6020V48G is a high-performance integrated DC servo system that combines a servo motor with brake, a fully digital servo drive and a 17-bit magnetic encoder, with CANopen communication support for networked motion control applications.
Frame size: 60 mm
Rated power: 200 W
Rated voltage: 48 VDC
Torque rated (peak): 0.64 (1.92) Nm
Speed rated (peak): 3000 (4000) rpm
Current rated (peak) 6.5 (20) A
CANopen communication protocol
User-configurable I/O: 4 DI and 2 DO
Weight: 1.32 kg
Built-in protections: over-voltage, over-current, position error and over-temperature
