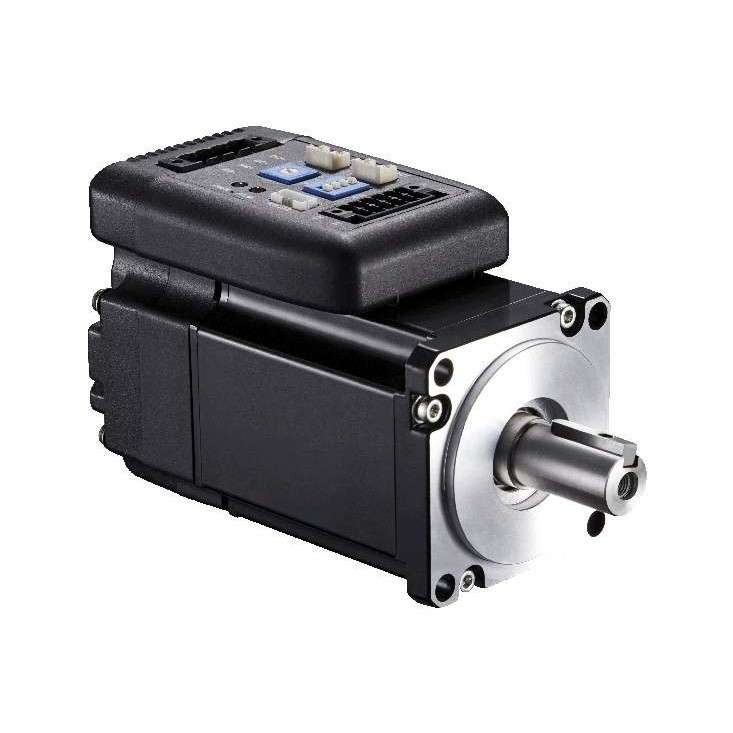

iSV2-CAN6020V24G Motor

https://sacom.lt/shop/leadshine-isv2-can6020v24g-motor-119243 https://sacom.lt/web/image/product.template/119243/image_1920?unique=7442ddd

Description:

Leadshine iSV2-CAN6020V24G is a high-performance integrated DC servo system that combines servo motor, a fully digital servo drive and a 17-bit magnetic encoder in one compact unit.
Frame size: 60 mm.
Rated power: 200 W.
Rated voltage: 24 VDC.
Torque rated (peak): 0.64 (1.92) Nm.
Speed rated (peak): 3000 (4000) rpm.
iSV2-CAN6020V24G takes CANopen control mode.
User-configurable I/O: 4 DI and 2 DO.
Weight: 1.32 kg.
Built-in protections: over-voltage, over-current, position error and over-temperature.

316.80 € 316.8 EUR 316.80 € VAT Excluded 576.00 € VAT Excluded

Not Available For Sale

This combination does not exist.

​

ADD TO CART

Available only to registered users. You need to Login or Register to complete the transaction.

Add to wishlist

Out of Stock

Get notified when back in stock

Invalid email

We'll notify you once the product is back in stock.

Save for later

Added to your wishlist

Contact Us

Technical information:
