iSV-B23180T-S21 Motor

https://sacom.lt/web/image/product.template/119233/image_1920?unique=0de5b60

Description:

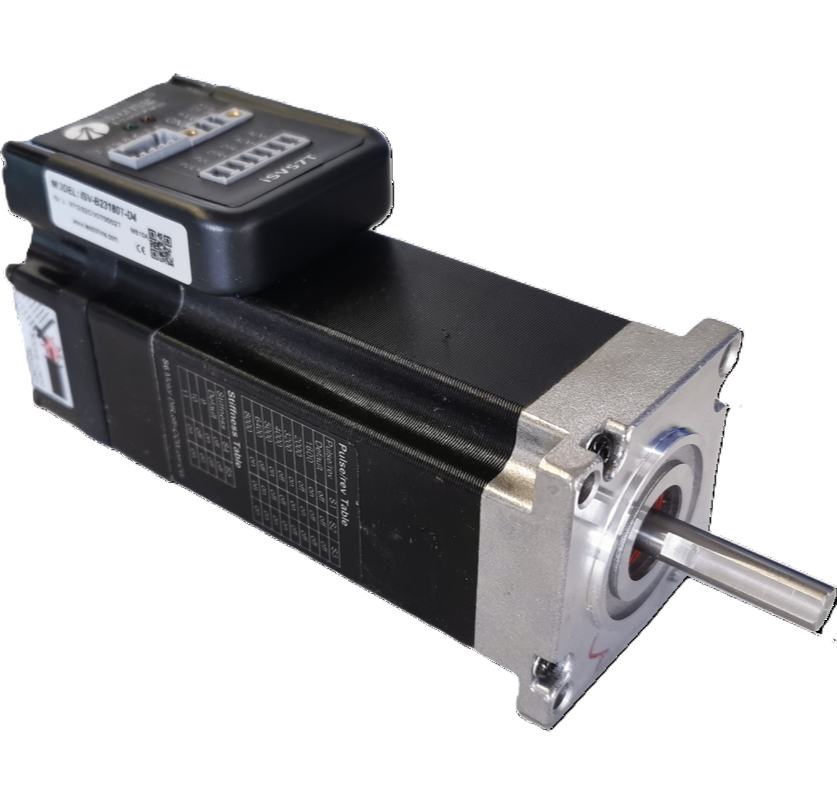

Leadshine iSV-B23180T-S21 is a high-performance integrated DC servo system that combines a NEMA 23 servo motor, a fully digital servo drive and a 17-bit magnetic encoder in one compact unit.
Frame size: NEMA23 (57.2 mm).
Rated power: 180 W.
Rated voltage: 36 VDC.
Torque rated (peak): 0.6 (1.1) Nm.
Speed rated (peak): 3000 (4000) rpm.
iSV-B23090T-S21 takes Pulse+Direction control mode.
Weight: 1.54 kg.
Built-in protections: over-voltage, over-current, position error and over-temperature.

149.60 € 149.6 EUR 149.60 € VAT Excluded 272.00 € VAT Excluded
Not Available For Sale
  • Frame size
  • Torque
  • Power
  • Communications protocol
  • Brand
  • Input Voltage (V)
  • Input Voltage (V)

This combination does not exist.

​

Available only to registered users. You need to Login or Register to complete the transaction.

Out of Stock
Invalid email
We'll notify you once the product is back in stock.
Added to your wishlist
Contact Us

Technical information:

Frame size:NEMA23
Torque:0.64 Nm
Power:180 W
Communications protocol:Pulse+Direction
Brand:LEADSHINE
Input Voltage (V):24 VDC, 36 VDC
