In the realm of modern engineering and manufacturing, linear guideways stand as cornerstones of precision motion. These sophisticated components are engineered to guide and support linear movement in machinery and equipment, ensuring smooth, accurate, and repeatable motion across diverse industrial applications. From intricate automation systems to heavy-duty machine tools, linear guideways are critical for achieving optimal performance, enhancing efficiency, and maintaining the longevity of your valuable equipment.

- GNZ-05-BOX Nozzle kit Grease nipple kit GNZ-05-BOX A set of nipples for lubrication of carriages size 15. 6.16 € 6.16 EUR	- HG15-DD-KIT Sealing system The double end seal allows the use of HIWIN linear guides in dirty and dusty environment. The double seal effectively prevents debris from entering the carriage. Designation of the seal HG15-DD-KIT: HG15 – seal for the HG series profile rail guide size 15 (high load capacity rolling guide with ball rolling elements); DD – for carriages with double end seal; KIT – fastening elements kit (for both ends). 5.54 € 5.54 EUR	- HG15-E2-KIT-SS Lubrication unit Lubrication cartridge reduces costs by reducing lubricant consumption and increasing inter-service intervals, therefore the service life of the guide increases. The cartridge can be filled with any appropriate grease depending on the required operating conditions and does not require specific maintenance. The cartridge can be removed or installed on a carriage already mounted on the guide and can be used regardless of the installation dimensions. Designation of the cartridge HG15-E2-KIT-SS: HG15 – cartridge for the HG series profile rail guide size 15 (high load capacity rolling guide with ball rolling elements); E2 – lubrication cartridge; KIT – fastening elements kit; SS – carriage with standard mechanical end-seal 3.90 € 3.9 EUR	- HG15-KK-KIT Sealing system Double end seal with scraper allows the use of HIWIN linear guides in dirty and dusty environment including hot chips and abrasive particles. The scraper protects the end seals and prevents their damage. Designation of the seal HG15-KK-KIT: HG15 – seal for the HG series profile rail guide size 15 (high load capacity rolling guide with ball rolling elements); KK – for carriages with double end seal and scraper; KIT – fastening elements kit (for both ends). 12.25 € 12.25 EUR

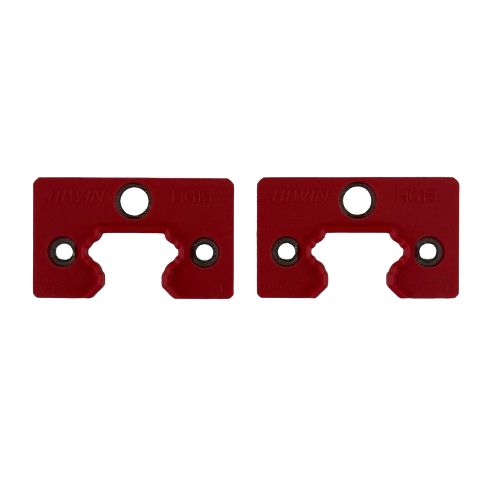

- HG15-SW-KIT-C Sealing system End seal with double sealing lip, improved bottom seal and additional top seal. Allows the use of HIWIN linear guides in extremely dirty and dusty environment. Sealing system provides optimal protection against the dirt, dust and liquids. The end seal is resistant to oil, grease and wear. An additional top seal protects from debris entering through the top the guide. An improved bottom seal protects the side-walls of the guide from debris. Designation of the seal HG15-SW-KIT-C: HG15 – seal for the HG series profile rail guide size 15 (high load capacity rolling guide with ball rolling elements); SW – carriage with end seal with double sealing lip + bottom seal + additional top seal; KIT – fastening elements kit (for both ends); C - kit for normal length carriage. 4.06 € 4.0600000000000005 EUR	- HG15-ZW-KIT-C Sealing system End seal with double sealing lip with scraper, improved bottom seal and additional top seal. Allows the use of HIWIN linear guides in extremely dirty and dusty environment. Sealing system provides optimal protection against the dirt, dust and liquids. The end seal is resistant to oil, grease and wear. An additional top seal protects from debris entering through the top the guide. An improved bottom seal protects the side-walls of the guide from debris. The imrpoved metal scraper protects against contamination particles > 0.2 mm and protects the end seal from damage. Designation of the seal HG15-ZW-KIT-C: HG15 – seal for the HG series profile rail guide size 15 (high load capacity rolling guide with ball rolling elements); ZW – carriage with end seal with double sealing lip + bottom seal + additional top seal + metal scraper; KIT – fastening elements kit (for both ends); C - kit for normal length carriage. 6.84 € 6.84 EUR	- HG15-ZZ-KIT Sealing system Metal scraper allows the use of HIWIN linear guides in dirty and dusty environment including hot chips and abrasive particles. The scraper protects the end seals and prevents their damage. Designation of the seal HG15-ZZ-KIT: HG15 – scraper for the HG series profile rail guide size 15 (high load capacity rolling guide with ball rolling elements); ZZ – carriage with metal scraper; KIT – fastening elements kit (for both ends). 4.39 € 4.39 EUR	- HG20-DD-KIT Sealing system The double end seal allows the use of HIWIN linear guides in dirty and dusty environment. The double seal effectively prevents debris from entering the carriage. Designation of the seal HG20-DD-KIT: HG20 – seal for the HG series profile rail guide size 25 (high load capacity rolling guide with ball rolling elements); DD – for carriages with double end seal; KIT – fastening elements kit (for both ends). 5.85 € 5.8500000000000005 EUR

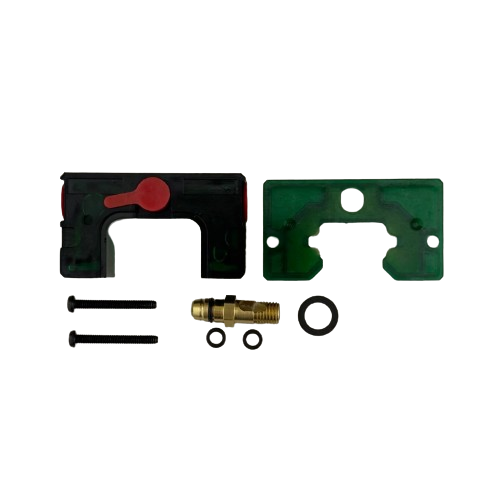

- HG20-E2-KIT-SS Lubrication unit Lubrication cartridge reduces costs by reducing lubricant consumption and increasing inter-service intervals, therefore the service life of the guide increases. The cartridge can be filled with any appropriate grease depending on the required operating conditions and does not require specific maintenance. The cartridge can be removed or installed on a carriage already mounted on the guide and can be used regardless of the installation dimensions. Designation of the cartridge HG20-E2-KIT-SS: HG20 – cartridge for the HG series profile rail guide size 20 (high load capacity rolling guide with ball rolling elements); E2 – lubrication cartridge; KIT – fastening elements kit; SS – carriage with standard mechanical end-seal 4.32 € 4.32 EUR	- HG20-KK-KIT Sealing system Double end seal with scraper allows the use of HIWIN linear guides in dirty and dusty environment including hot chips and abrasive particles. The scraper protects the end seals and prevents their damage. Designation of the seal HG20-KK-KIT: HG20 – seal for the HG series profile rail guide size 20 (high load capacity rolling guide with ball rolling elements); KK – for carriages with double end seal and scraper; KIT – fastening elements kit (for both ends). 8.22 € 8.22 EUR	- HG20-SW-KIT-C Sealing system End seal with double sealing lip, improved bottom seal and additional top seal. Allows the use of HIWIN linear guides in extremely dirty and dusty environment. Sealing system provides optimal protection against the dirt, dust and liquids. The end seal is resistant to oil, grease and wear. An additional top seal protects from debris entering through the top the guide. An improved bottom seal protects the side-walls of the guide from debris. Designation of the seal HG20-SW-KIT-C: HG20 – seal for the HG series profile rail guide size 20 (high load capacity rolling guide with ball rolling elements); SW – carriage with end seal with double sealing lip + bottom seal + additional top seal; KIT – fastening elements kit (for both ends); C - kit for normal length carriage. 6.42 € 6.42 EUR	- HG20-SW-KIT-H Sealing system End seal with double sealing lip, improved bottom seal and additional top seal. Allows the use of HIWIN linear guides in extremely dirty and dusty environment. Sealing system provides optimal protection against the dirt, dust and liquids. The end seal is resistant to oil, grease and wear. An additional top seal protects from debris entering through the top the guide. An improved bottom seal protects the side-walls of the guide from debris. Designation of the seal HG20-SW-KIT-C: HG20 – seal for the HG series profile rail guide size 20 (high load capacity rolling guide with ball rolling elements); SW – carriage with end seal with double sealing lip + bottom seal + additional top seal; KIT – fastening elements kit (for both ends); H - kit for elongated carriage. 6.66 € 6.66 EUR
- HG20-ZW-KIT-C Sealing system End seal with double sealing lip with scraper, improved bottom seal and additional top seal. Allows the use of HIWIN linear guides in extremely dirty and dusty environment. Sealing system provides optimal protection against the dirt, dust and liquids. The end seal is resistant to oil, grease and wear. An additional top seal protects from debris entering through the top the guide. An improved bottom seal protects the side-walls of the guide from debris. The imrpoved metal scraper protects against contamination particles > 0.2 mm and protects the end seal from damage. Designation of the seal HG20-ZW-KIT-C: HG20 – seal for the HG series profile rail guide size 20 (high load capacity rolling guide with ball rolling elements); ZW – carriage with end seal with double sealing lip + bottom seal + additional top seal + metal scraper; KIT – fastening elements kit (for both ends); C - kit for normal length carriage. 6.94 € 6.94 EUR	- HG20-ZW-KIT-H Sealing system End seal with double sealing lip with scraper, improved bottom seal and additional top seal. Allows the use of HIWIN linear guides in extremely dirty and dusty environment. Sealing system provides optimal protection against the dirt, dust and liquids. The end seal is resistant to oil, grease and wear. An additional top seal protects from debris entering through the top the guide. An improved bottom seal protects the side-walls of the guide from debris. The imrpoved metal scraper protects against contamination particles > 0.2 mm and protects the end seal from damage. Designation of the seal HG20-ZW-KIT-C: HG20 – seal for the HG series profile rail guide size 20 (high load capacity rolling guide with ball rolling elements); ZW – carriage with end seal with double sealing lip + bottom seal + additional top seal + metal scraper; KIT – fastening elements kit (for both ends); C - kit for elongated carriage. 4.52 € 4.5200000000000005 EUR	- HG20-ZZ-KIT Sealing system Metal scraper allows the use of HIWIN linear guides in dirty and dusty environment including hot chips and abrasive particles. The scraper protects the end seals and prevents their damage. Designation of the seal HG20-ZZ-KIT: HG20 – scraper for the HG series profile rail guide size 20 (high load capacity rolling guide with ball rolling elements); ZZ – carriage with metal scraper; KIT – fastening elements kit (for both ends). 4.55 € 4.55 EUR	- HG25-DD-KIT Sealing system The double end seal allows the use of HIWIN linear guides in dirty and dusty environment. The double seal effectively prevents debris from entering the carriage. Designation of the seal HG25-DD-KIT: HG25 – seal for the HG series profile rail guide size 25 (high load capacity rolling guide with ball rolling elements); DD – for carriages with double end seal; KIT – fastening elements kit (for both ends). 7.05 € 7.05 EUR

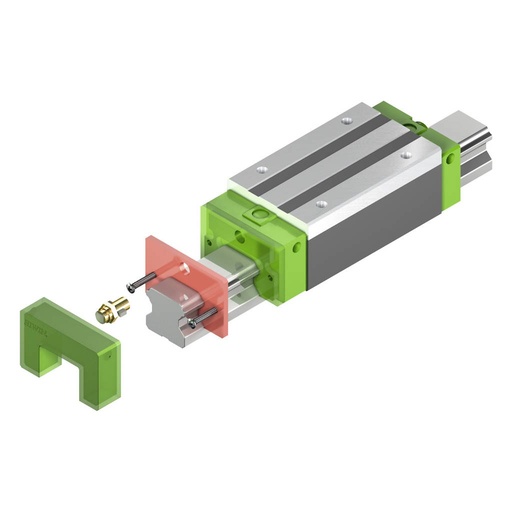

- HG25-E2-KIT-SS Lubrication unit Lubrication cartridge reduces costs by reducing lubricant consumption and increasing inter-service intervals, therefore the service life of the guide increases. The cartridge can be filled with any appropriate grease depending on the required operating conditions and does not require specific maintenance. The cartridge can be removed or installed on a carriage already mounted on the guide and can be used regardless of the installation dimensions. Designation of the cartridge HG25-E2-KIT-SS: HG25 – cartridge for the HG series profile rail guide size 25 (high load capacity rolling guide with ball rolling elements); E2 – lubrication cartridge; KIT – fastening elements kit; SS – carriage with standard mechanical end-seal 4.42 € 4.42 EUR	- HG25-E2-KIT-ZZ Lubrication unit Lubrication cartridge reduces costs by reducing lubricant consumption and increasing inter-service intervals, therefore the service life of the guide increases. The cartridge can be filled with any appropriate grease depending on the required operating conditions and does not require specific maintenance. The cartridge can be removed or installed on a carriage already mounted on the guide and can be used regardless of the installation dimensions. Designation of the cartridge HG25-E2-KIT-ZZ: HG25 – cartridge for the HG series profile rail guide size 25 (high load capacity rolling guide with ball rolling elements); E2 – lubrication cartridge; KIT – fastening elements kit; ZZ – carriage with metal scraper 4.42 € 4.42 EUR	- HG25-KK-KIT Sealing system Double end seal with scraper allows the use of HIWIN linear guides in dirty and dusty environment including hot chips and abrasive particles. The scraper protects the end seals and prevents their damage. Designation of the seal HG25-KK-KIT: HG25 – seal for the HG series profile rail guide size 25 (high load capacity rolling guide with ball rolling elements); KK – for carriages with double end seal and scraper; KIT – fastening elements kit (for both ends). 11.15 € 11.15 EUR	- HG25-SW-KIT-C Sealing system End seal with double sealing lip, improved bottom seal and additional top seal. Allows the use of HIWIN linear guides in extremely dirty and dusty environment. Sealing system provides optimal protection against the dirt, dust and liquids. The end seal is resistant to oil, grease and wear. An additional top seal protects from debris entering through the top the guide. An improved bottom seal protects the side-walls of the guide from debris. Designation of the seal HG25-SW-KIT-C: HG25 – seal for the HG series profile rail guide size 25 (high load capacity rolling guide with ball rolling elements); SW – carriage with end seal with double sealing lip + bottom seal + additional top seal; KIT – fastening elements kit (for both ends); C - kit for normal length carriage. 7.33 € 7.33 EUR

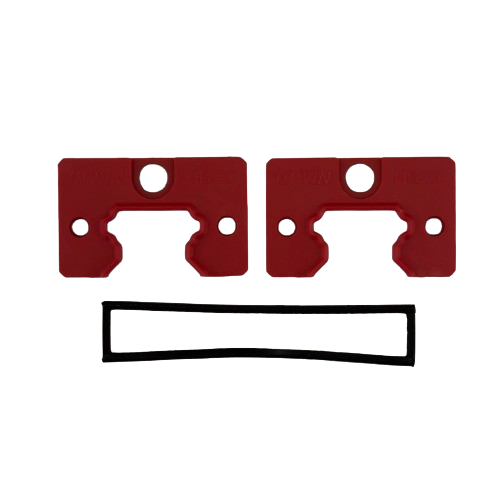

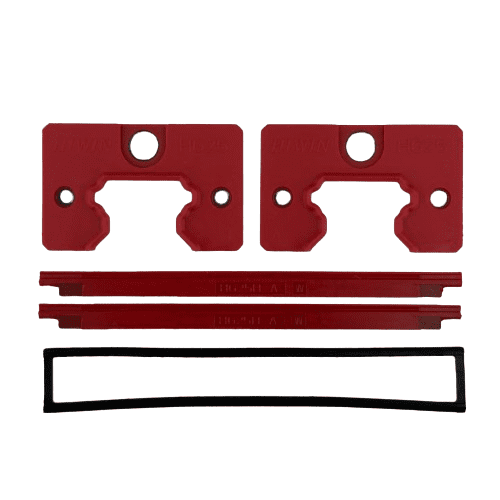

- HG25-SW-KIT-H Sealing system End seal with double sealing lip, improved bottom seal and additional top seal. Allows the use of HIWIN linear guides in extremely dirty and dusty environment. Sealing system provides optimal protection against the dirt, dust and liquids. The end seal is resistant to oil, grease and wear. An additional top seal protects from debris entering through the top the guide. An improved bottom seal protects the side-walls of the guide from debris. Designation of the seal HG25-SW-KIT-C: HG25 – seal for the HG series profile rail guide size 25 (high load capacity rolling guide with ball rolling elements); SW – carriage with end seal with double sealing lip + bottom seal + additional top seal; KIT – fastening elements kit (for both ends); C - kit for elongated carriage. 7.51 € 7.51 EUR	- HG25-ZW-KIT-H Sealing system End seal with double sealing lip with scraper, improved bottom seal and additional top seal. Allows the use of HIWIN linear guides in extremely dirty and dusty environment. Sealing system provides optimal protection against the dirt, dust and liquids. The end seal is resistant to oil, grease and wear. An additional top seal protects from debris entering through the top the guide. An improved bottom seal protects the side-walls of the guide from debris. The imrpoved metal scraper protects against contamination particles > 0.2 mm and protects the end seal from damage. Designation of the seal HG25-ZW-KIT-C: HG25 – seal for the HG series profile rail guide size 25 (high load capacity rolling guide with ball rolling elements); ZW – carriage with end seal with double sealing lip + bottom seal + additional top seal + metal scraper; KIT – fastening elements kit (for both ends); C - kit for elongated carriage. 6.79 € 6.79 EUR	- HG25-ZZ-KIT Sealing system Metal scraper allows the use of HIWIN linear guides in dirty and dusty environment including hot chips and abrasive particles. The scraper protects the end seals and prevents their damage. Designation of the seal HG25-ZZ-KIT: HG25 – scraper for the HG series profile rail guide size 25 (high load capacity rolling guide with ball rolling elements); ZZ – carriage with metal scraper; KIT – fastening elements kit (for both ends). 4.73 € 4.73 EUR	- HG30-E2-KIT-KK Lubrication unit Lubrication cartridge reduces costs by reducing lubricant consumption and increasing inter-service intervals, therefore the service life of the guide increases. The cartridge can be filled with any appropriate grease depending on the required operating conditions and does not require specific maintenance. The cartridge can be removed or installed on a carriage already mounted on the guide and can be used regardless of the installation dimensions. Designation of the cartridge HG30-E2-KIT-KK: HG30 – cartridge for the HG series profile rail guide size 30 (high load capacity rolling guide with ball rolling elements); E2 – lubrication cartridge; KIT – fastening elements kit; KK – carriage with double mechanical end-seal and metal scraper 4.63 € 4.63 EUR

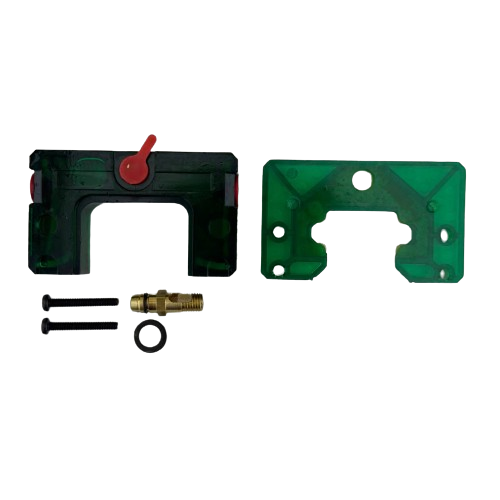

- HG30-E2-KIT-SS Lubrication unit Lubrication cartridge reduces costs by reducing lubricant consumption and increasing inter-service intervals, therefore the service life of the guide increases. The cartridge can be filled with any appropriate grease depending on the required operating conditions and does not require specific maintenance. The cartridge can be removed or installed on a carriage already mounted on the guide and can be used regardless of the installation dimensions. Designation of the cartridge HG30-E2-KIT-SS: HG30 – cartridge for the HG series profile rail guide size 30 (high load capacity rolling guide with ball rolling elements); E2 – lubrication cartridge; KIT – fastening elements kit; SS – carriage with standard mechanical end-seal 5.49 € 5.49 EUR	- HG30-E2-KIT-ZZ Lubrication unit Lubrication cartridge reduces costs by reducing lubricant consumption and increasing inter-service intervals, therefore the service life of the guide increases. The cartridge can be filled with any appropriate grease depending on the required operating conditions and does not require specific maintenance. The cartridge can be removed or installed on a carriage already mounted on the guide and can be used regardless of the installation dimensions. Designation of the cartridge HG30-E2-KIT-ZZ: HG30 – cartridge for the HG series profile rail guide size 30 (high load capacity rolling guide with ball rolling elements); E2 – lubrication cartridge; KIT – fastening elements kit; ZZ – carriage with metal scraper 4.63 € 4.63 EUR	- HG30-SW-KIT-C Sealing system End seal with double sealing lip, improved bottom seal and additional top seal. Allows the use of HIWIN linear guides in extremely dirty and dusty environment. Sealing system provides optimal protection against the dirt, dust and liquids. The end seal is resistant to oil, grease and wear. An additional top seal protects from debris entering through the top the guide. An improved bottom seal protects the side-walls of the guide from debris. Designation of the seal HG30-SW-KIT-C: HG30 – seal for the HG series profile rail guide size 30 (high load capacity rolling guide with ball rolling elements); SW – carriage with end seal with double sealing lip + bottom seal + additional top seal; KIT – fastening elements kit (for both ends); C - kit for normal length carriage. 7.98 € 7.98 EUR	- HG30-SW-KIT-H Sealing system End seal with double sealing lip, improved bottom seal and additional top seal. Allows the use of HIWIN linear guides in extremely dirty and dusty environment. Sealing system provides optimal protection against the dirt, dust and liquids. The end seal is resistant to oil, grease and wear. An additional top seal protects from debris entering through the top the guide. An improved bottom seal protects the side-walls of the guide from debris. Designation of the seal HG30-SW-KIT-C: HG30 – seal for the HG series profile rail guide size 30 (high load capacity rolling guide with ball rolling elements); SW – carriage with end seal with double sealing lip + bottom seal + additional top seal; KIT – fastening elements kit (for both ends); C - kit for elongated carriage. 8.09 € 8.09 EUR

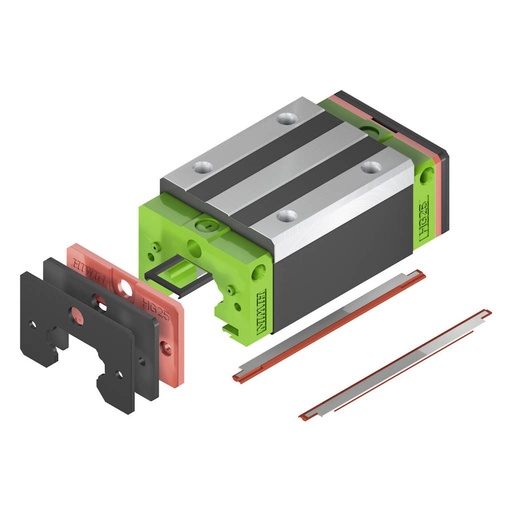

- HG30-ZW-KIT-H Sealing system End seal with double sealing lip with scraper, improved bottom seal and additional top seal. Allows the use of HIWIN linear guides in extremely dirty and dusty environment. Sealing system provides optimal protection against the dirt, dust and liquids. The end seal is resistant to oil, grease and wear. An additional top seal protects from debris entering through the top the guide. An improved bottom seal protects the side-walls of the guide from debris. The imrpoved metal scraper protects against contamination particles > 0.2 mm and protects the end seal from damage. Designation of the seal HG30-ZW-KIT-C: HG30 – seal for the HG series profile rail guide size 30 (high load capacity rolling guide with ball rolling elements); ZW – carriage with end seal with double sealing lip + bottom seal + additional top seal + metal scraper; KIT – fastening elements kit (for both ends); C - kit for elongated carriage. 7.51 € 7.51 EUR	- HG30-ZZ-KIT Sealing system Metal scraper allows the use of HIWIN linear guides in dirty and dusty environment including hot chips and abrasive particles. The scraper protects the end seals and prevents their damage. Designation of the seal HG30-ZZ-KIT: HG30 – scraper for the HG series profile rail guide size 30 (high load capacity rolling guide with ball rolling elements); ZZ – carriage with metal scraper; KIT – fastening elements kit (for both ends). 7.33 € 7.33 EUR	- HG35-DD-KIT Sealing system The double end seal allows the use of HIWIN linear guides in dirty and dusty environment. The double seal effectively prevents debris from entering the carriage. Designation of the seal HG35-DD-KIT: HG35 – seal for the HG series profile rail guide size 35 (high load capacity rolling guide with ball rolling elements); DD – for carriages with double end seal; KIT – fastening elements kit (for both ends). 8.84 € 8.84 EUR	- HG35-E2-KIT-SS Lubrication unit Lubrication cartridge reduces costs by reducing lubricant consumption and increasing inter-service intervals, therefore the service life of the guide increases. The cartridge can be filled with any appropriate grease depending on the required operating conditions and does not require specific maintenance. The cartridge can be removed or installed on a carriage already mounted on the guide and can be used regardless of the installation dimensions. Designation of the cartridge HG35-E2-KIT-SS: HG35 – cartridge for the HG series profile rail guide size 35 (high load capacity rolling guide with ball rolling elements); E2 – lubrication cartridge; KIT – fastening elements kit; SS – carriage with standard mechanical end-seal 7.05 € 7.05 EUR

Why Choose Our Linear Guideways?

Unrivaled Quality and Durability: Our linear guideways are manufactured using only the highest grades of steel and undergo stringent heat treatment processes. This meticulous approach to material selection and processing results in products that exhibit exceptional hardness, wear resistance, and load-bearing capabilities. Investing in our guideways means choosing components built to withstand the rigors of continuous operation in demanding industrial environments, minimizing downtime and maximizing the lifespan of your machinery.
Engineered for Precision and Smoothness: Precision is at the heart of our linear guideway design. Each component is manufactured to exacting tolerances, ensuring minimal friction and exceptionally smooth movement. This precision engineering translates directly into enhanced accuracy and repeatability in your applications, crucial for processes requiring intricate control and consistent results. Our guideways minimize vibration and noise, contributing to a more stable and productive operating environment.
Extensive Range and Customization: Recognizing the diverse needs of our B2B clientele, we offer a comprehensive portfolio of linear guideway solutions. Our range encompasses various types, including ball-bearing and roller guideways, in a multitude of sizes and configurations. Whether your application demands compact, lightweight solutions or heavy-duty, high-capacity systems, we have a guideway to match. Furthermore, we provide extensive customization options, allowing you to tailor guideways to your precise specifications, ensuring seamless integration and optimal performance within your unique machinery designs.

Versatile Applications Across Industries

Linear guideways are the unsung heroes behind the smooth and precise operation of countless industrial applications. Their versatility and reliability make them indispensable across a wide spectrum of sectors, including:

Advanced Manufacturing and Automation: In automated assembly lines, robotic systems, and precision manufacturing equipment, our linear guideways provide the accurate and reliable motion essential for maximizing throughput and maintaining product quality. They are integral to pick-and-place mechanisms, CNC machining centers, and automated welding systems.
Semiconductor and Electronics Industry: The delicate processes within semiconductor manufacturing and electronics assembly demand extreme precision and cleanliness. Our linear guideways, with their smooth, low-friction movement and options for cleanroom compatibility, are ideal for wafer handling, chip placement, and inspection equipment.
Medical and Laboratory Equipment: Medical devices and laboratory instruments require precise and reliable linear motion for critical functions. From medical imaging equipment like CT scanners and MRI machines to laboratory automation systems and surgical robots, our guideways ensure smooth, accurate, and dependable operation, meeting the stringent demands of the medical field.
Packaging and Printing Machinery: In high-speed packaging lines and precision printing presses, linear guideways contribute to the speed, accuracy, and reliability of material handling and printing processes. They are used in label applicators, automated filling systems, and high-resolution printing equipment.
Aerospace and Defense: The aerospace and defense industries demand components capable of withstanding extreme conditions while maintaining unwavering reliability and precision. Our linear guideways, manufactured to the highest quality standards, are utilized in aircraft control systems, simulation equipment, and specialized defense applications.

Our Services

Expert Technical Consultation: Our team of experienced application engineers possesses in-depth knowledge of linear motion technology and a wide range of industrial applications. We provide expert consultation to guide you in selecting the optimal linear guideway solution for your specific requirements, considering factors like load capacity, speed, accuracy, and environmental conditions.
Custom Engineering and Design: We understand that standard solutions may not always meet the unique demands of every application. Our engineering team offers custom design and manufacturing services, tailoring linear guideways to your precise dimensional requirements, material specifications, and performance parameters. We collaborate closely with you to develop innovative solutions that address your most challenging linear motion needs.
Installation Guidance and Maintenance Support: To ensure the seamless integration and long-term performance of your linear guideway systems, we provide comprehensive installation guidance and ongoing maintenance support. Our technical resources and expert advice help you optimize system setup, minimize downtime, and extend the operational life of your investment.
