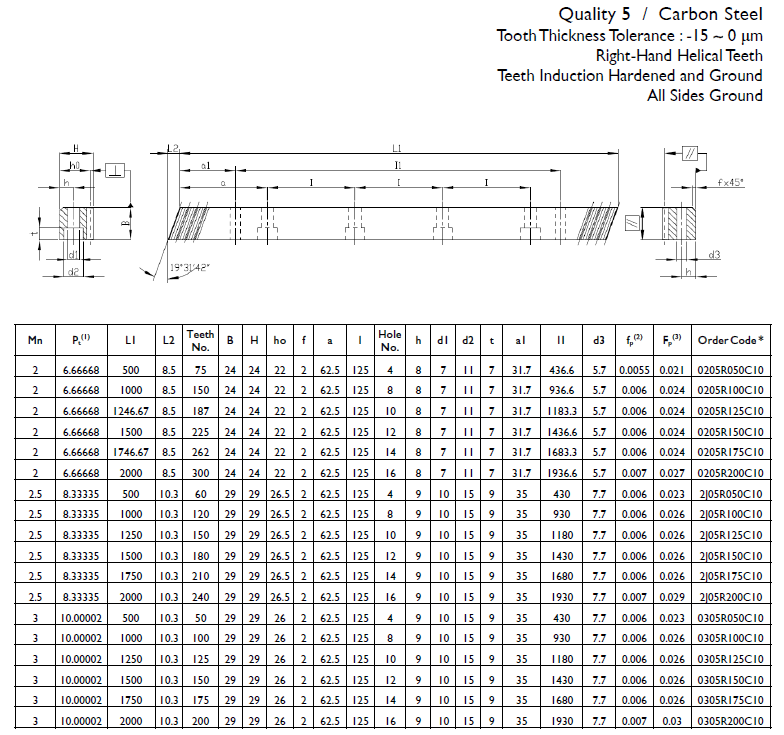

0205R100C10 Helical rack

Quality 5 / Carbon Steel

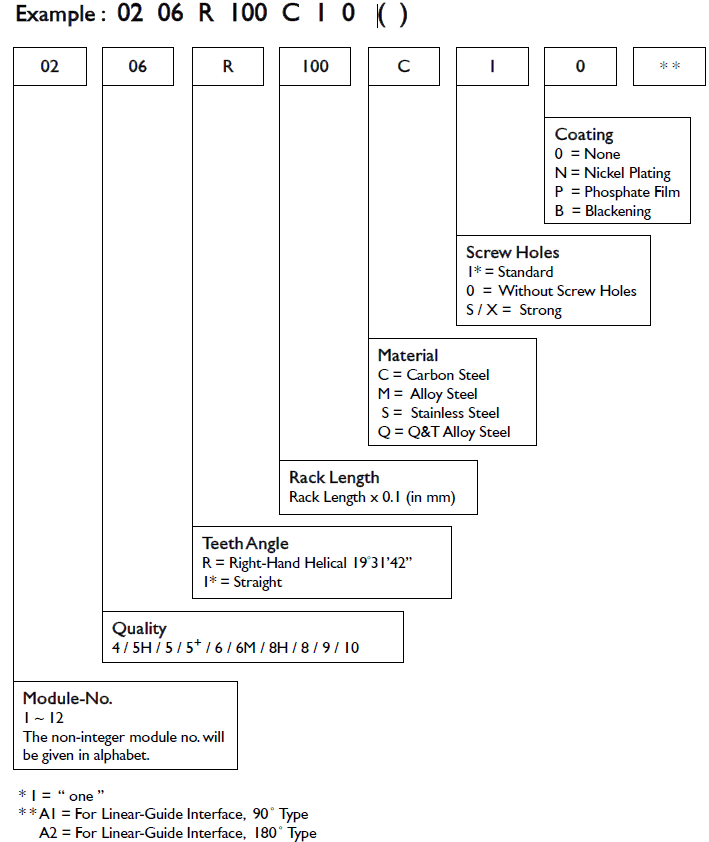

02 - Module
05 - Quality
R - Teeth angle (right-hand helical)
100 - Lenght (1000 mm)
C - Material (carbon steel)
1 - Screw holes (standard)
0 - Coating (none)

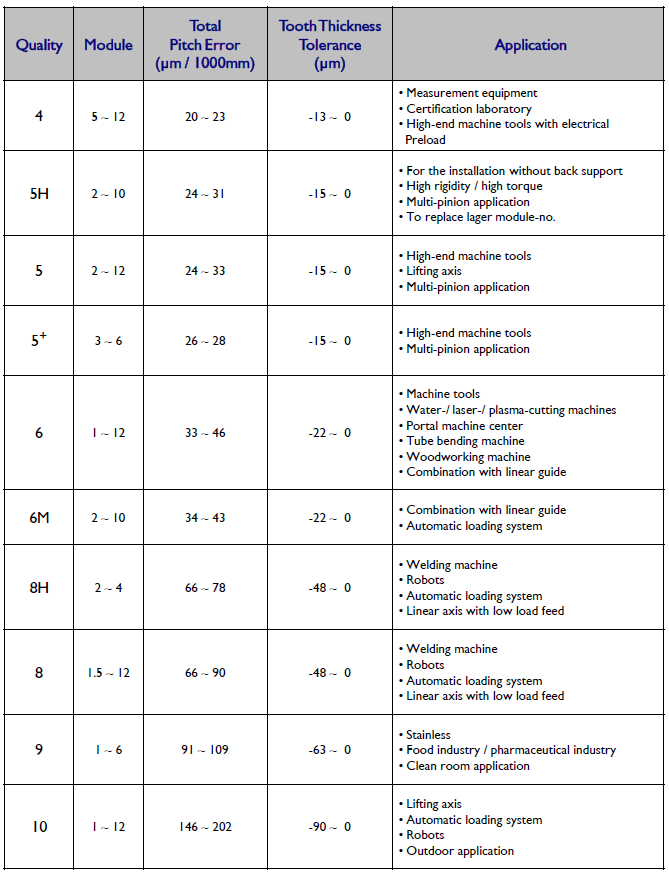

Rack and pinion drive systems with “Quality 5” are recommended for the following applications:
• High-end machine tools;
• Lifting axis;
• Multi-pinion application.

Analog:
• 246023-Q5 GUDEL;
• CHTGH02010-DIN5 YYC;
