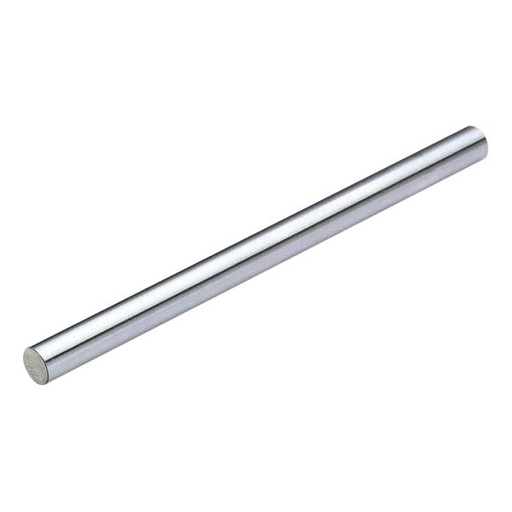

Engineered for superior performance, these high-precision cylindrical shafts are manufactured from hardened steel to deliver exceptional durability, accuracy, and smooth motion. Ideal for CNC machines, 3D printers, and automated systems, they ensure reliable linear movement and efficient torque transmission even under demanding conditions.

Diameter: 16 mm
Length: 6000 mm
Tolerance: h6 (high precision fit)
Finish: Hardened and precision ground for maximum wear resistance and minimal friction

Choose from a range of steel grades to match your application requirements.

2R15-10-3000-3000-0.05
2R16-10-3000-3000-0,052-FSC
Rolled shaft can be cut according to your requirements and drawings

SBR16LUU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SME16GWUU (Nippon bearing)

Inner Diameter (d): 16 mm
Highth (F): 33 mm.
Width (W): 85 mm.
Length (L): 45 mm.
Clamping bolts (S): M5.

SBR16UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
LMK16UU (SAMICK)
SME16GUU (Nippon bearing)

Inner Diameter (d): 16 mm
Highth (F): 33 mm.
Width (W): 45 mm.
Length (L): 45 mm.
Clamping bolts (S): M5.

SC16VUU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SC16VUU (SAMICK)

Inner Diameter: 16 mm
Highth (H): 38,5 mm.
Width (W): 50 mm.
Length (L): 23,5 mm.
Clamping bolts (S1): M5.

SCE16LUU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SCE16WUU (SAMICK)

Inner Diameter: 16 mm
Highth (F): 38,5 mm.
Width (W): 50 mm.
Length (L): 89 mm.
Clamping bolts (S): M5.

SCE16UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SCE16UU (SAMICK)

Inner Diameter: 16 mm
Highth (F): 38,5 mm.
Width (W): 50 mm.
Length (L): 44 mm.
Clamping bolts (S): M5.

SCS16LUU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SMA16GWUU (Nippon bearing)

Inner Diameter: 16 mm
Highth (F): 38,5 mm.
Width (W): 50 mm.
Length (L): 85 mm.
Clamping bolts (S1): M5.

SCS16UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
SMA16GUU (Nippon bearing)

Inner Diameter: 16 mm
Highth (F): 38,5 mm.
Width (W): 50 mm.
Length (L): 44 mm.
Clamping bolts (S1): M5.

SHF16 – shaft supporter flange type.

Cross references:
SHF16 (NB)
SHF16 (FLI)

Shaft diameter: 16 mm.
Type: linear shaft support.
Material: Aluminum.
Mounting:
- Locking bolts M4.
- Clamping bolts M5.

SK16 - shaft support for reliable mounting of shafts perpendicular to mounting surface.

Cross references:
R1055 016 00 (Rexroth)
FGWA16 (FLI)
GW16(INA)

Shaft diameter: 16 mm.
Type: Flanged shaft end support.
Material: Anodized aluminum.
Application: CNC machines, 3D printers, and laser engravers.
Mounting:
- Pre-drilled holes for standard M4/M5 mounting bolts.
- Secure shaft clamping mechanism.
- Designed for precise linear guide rail systems.

ST16UU - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
ST16UU (THK)

Inner Diameter (d): 16 mm.
Outer Diameter (D): 28 mm.
Length (L): 37 mm.

TBR16LUU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Inner Diameter: 16 mm
Highth (G): 26 mm.
Width (W): 62 mm.
Length (M): 85 mm.
Clamping bolts (S1): M5.

TBR16UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

Cross references:
TBR16UU (SAMICK)
SWD16GUU (Nippon bearing)

Inner Diameter: 16 mm
Highth (G): 26 mm.
Width (W): 62 mm.
Length (M): 42 mm.
Clamping bolts (S1): M5.

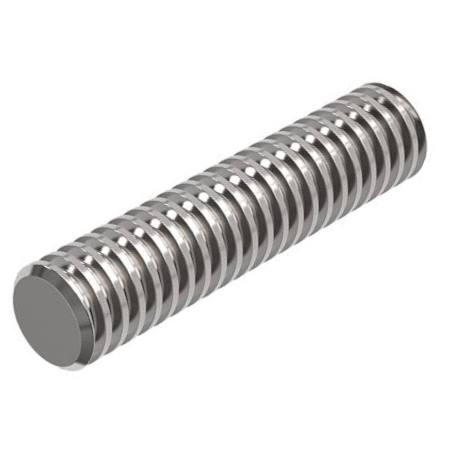

Tr16x4 Precision rolled screw trapezoidal thread in steel C15-1.1141.
Manufactured in accordance with ISO DIN 103, 7e tolerance (0,2/300mm).
We can produce screw according to customers drawings.

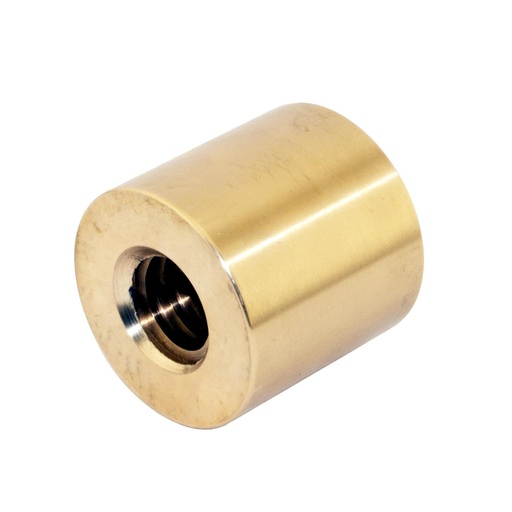

Tr16x4 LRM Right hand bronze trapezoidal cylindrical nut.
Manufactured in accordance with ISO DIN 103, tolerance 7H.
We can produce special nuts according to customers drawings in different materials.

LJM16-3000 - SKF
SN16-3000 - NB
WB16-3000 - INA
1000-016-00 - Rexroth
• Steel grade CF53 shaft (surface treatment and chamfering is
possible)
• Induction hardened and ground linear shaft
• Shaft processing according to customer drawings
