KH16-PP - INA
R065821640 - Rexroth
LBBR16-2LS - SKF
Compact Linear Bushing CLB 16 UU
• Economic product used for variety of application
• Compact size resolving space restriction
• Ease of assembly : no need additional accessary
• Housing applicable for anti-rusting, etc
• 100% interchangeable : perfectly interchange with other companies'
compact series

Cross References
R16-05T3-FSIDIN (HIWIN)

KH1630PP - linear ball bearing sleeve is designed for smooth and precise linear movement. Providing minimal friction and long service life.

Cross references:
KH16 (INA)
KH 1630 (FLI)
R0658 016 00 (Bosch rexroth)

Inner Diameter (d): 16 mm.
Outer Diameter (D): 24 mm.
Length (L): 30 mm.
Dynamic Load Rating (C): 800 N.
Static Load Rating (C₀): 620 N.

Linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimizing friction and maximizing operational lifespan.

Cross references:
LM16UU (FLI)
SM16GUU (Nippon bearing)
LM16UU (SAMICK)
LM162837 (IKO)

LME16LUU - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
LME16LUU (SAMICK)
KB16-GWUU (Nippon bearing)

Inner Diameter (d): 16 mm.
Outer Diameter (D): 26 mm.
Length (L): 68 mm.
Dynamic Load Rating (C): 921 N.
Static Load Rating (C₀): 1780 N.

LME16UU - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
LME16UU (SAMICK)
KB16UU (Nippon bearing)
LME162636N (IKO)
R0602 316 10 (Bosch rexrot)

Inner Diameter (d): 16 mm.
Outer Diameter (D): 26 mm.
Length (L): 36 mm.
Dynamic Load Rating (C): 578 N.
Static Load Rating (C₀): 892 N.

KB16-PP - INA
R0602301610 - Rexroth
LBCR16-2LS - SKF
Standard Linear Bushing LME 16 UU
• Shaft diameter 16 ㎜
• Provide low friction on high-speed movement
• Can be selected resin retainer (standard), and steel retainer (for high
temperature & vacuum)
• Corrosion-resisting: the nickel-plated, Raydent treatment of Outersleeves,
stainless steel ball

LME16UUAJ - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
LME16UUAJ (SAMICK)
KB16GUU-AJ (Nippon bearing)
LME162636NAJ (IKO)
R0612 316 00 (Bosch rexrot)

Inner Diameter (d): 16 mm.
Outer Diameter (D): 26 mm.
Length (L): 36 mm.
Dynamic Load Rating (C): 578 N.
Static Load Rating (C₀): 892 N.

LME16UUOP - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
LME16UUOP (SAMICK)
KB16GUU-OP (Nippon bearing)
LME162636NOP (IKO)
R0632 016 00 (Bosch rexrot)

Inner Diameter (d): 16 mm.
Outer Diameter (D): 26 mm.
Length (L): 36 mm.
Dynamic Load Rating (C): 578 N.
Static Load Rating (C₀): 892 N.

LMEF16LUU - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
LMEF16LUU (SAMICK)
KBF16GWUU (Nippon bearing)

Inner Diameter (d): 16 mm.
Outer Diameter (D): 26 mm.
Length (L): 68 mm.
Dynamic Load Rating (C): 1230 N.
Static Load Rating (C₀): 2350 N.

LMEF16UU - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
LMEF16UU (SAMICK)
KBF16GUU (Nippon bearing)

Inner Diameter (d): 16 mm.
Outer Diameter (D): 26 mm.
Length (L): 36 mm.
Dynamic Load Rating (C): 570 N.
Static Load Rating (C₀): 890 N.

LMEK16LUU - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
LMEK16LUU (SAMICK)
KBK16GWUU (Nippon bearing)

Inner Diameter (d): 16 mm.
Outer Diameter (D): 26 mm.
Length (L): 68 mm.
Dynamic Load Rating (C): 1230 N.
Static Load Rating (C₀): 2350 N.

LMEK16UU - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
LMEK16UU (SAMICK)
KBK16GUU (Nippon bearing)

Inner Diameter (d): 16 mm.
Outer Diameter (D): 26 mm.
Length (L): 36 mm.
Dynamic Load Rating (C): 570 N.
Static Load Rating (C₀): 890 N.

KN16 - INA
R067001600 - Rexroth
LBCD16 - SKF

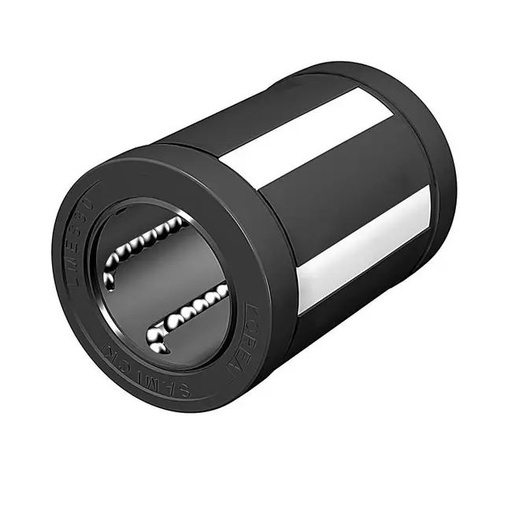

Self-Aligning Linear Bushing LMES 16 UU
• High load Capacity and long travel life
• Interchangeable with Standard linear bushing on European&American Type
• Travel speeds up to 10ft/s (3m/s) and smooth operation
• Easy of installation as a result of self-aligning Ball plates (±0.5˚)
• Anti-Rusting: Nickel or Chrome Plating, Raydent Treatment of ball plate, Stainless-steel ball.

LMF16LUU - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
LMF16LUU (SAMICK)
SMF16GWUU (Nippon bearing)
LMF16LUU (THK)
LHFRW16 (MISUMI)

Inner Diameter (d): 16 mm.
Outer Diameter (D): 28 mm.
Length (L): 70 mm.
Dynamic Load Rating (C): 1230 N.
Static Load Rating (C₀): 2350 N.

LMF16UU - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
LMF16UU (SAMICK)
SMF16GUU (Nippon bearing)
LMF16UU (THK)
LHFR16 (MISUMI)

Inner Diameter (d): 16 mm.
Outer Diameter (D): 28 mm.
Length (L): 37 mm.
Dynamic Load Rating (C): 770 N.
Static Load Rating (C₀): 1170 N.

LMH16LUU - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
LMH16LUU (SAMICK)
SMT16GWUU (Nippon bearing)
LMH16LUU (THK)
LHFCW16 (MISUMI)

Inner Diameter (d): 16 mm.
Outer Diameter (D): 28 mm.
Length (L): 70 mm.
Dynamic Load Rating (C): 1230 N.
Static Load Rating (C₀): 2350 N.

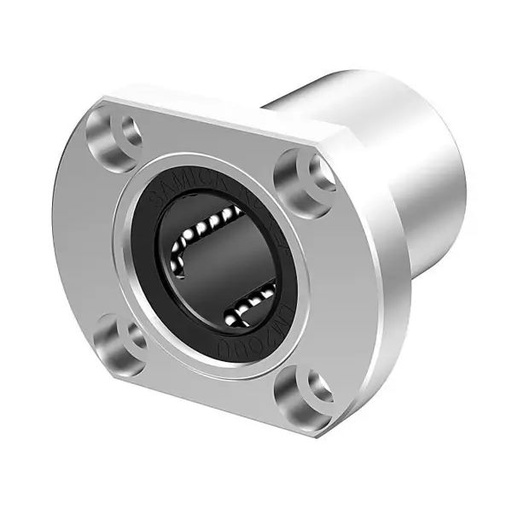

LMH16UU - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
LMH16UU (SAMICK)
SMT16GUU (Nippon bearing)
LMH16UU (THK)
LHFC16 (MISUMI)

Inner Diameter (d): 16 mm.
Outer Diameter (D): 28 mm.
Length (L): 37 mm.
Dynamic Load Rating (C): 770 N.
Static Load Rating (C₀): 1170 N.

LMH16UU - THK
SMT16GUU - NB
LHZC16 - MISUMI
SUS SERIES-Flanged Linear Bushing LMH 16 UU
• Outer-sleeve, ball and flange : used stainless steel. corrosion resistance
products
• With a variety of design and ease of installation
• Used when the load of moving body passed directly to the Linear
Bushing
• Installed without housing
• Can be selected resin retainer (standard), and steel retainer (for high
temperature & vacuum)

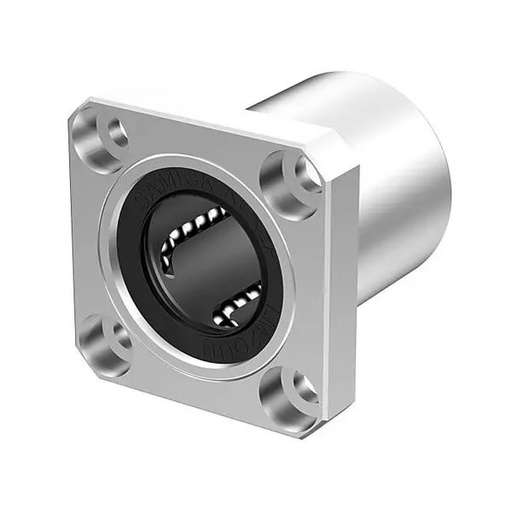

LMK16LUU - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
LMK16LUU (SAMICK)
SMK16GWUU (Nippon bearing)
LMK16LUU (THK)
LHFSW16 (MISUMI)

Inner Diameter (d): 16 mm.
Outer Diameter (D): 28 mm.
Length (L): 70 mm.
Dynamic Load Rating (C): 1230 N.
Static Load Rating (C₀): 2350 N.

LMK16LUU - THK
SMK16GWUU - NB
LHFSW16 - MISUMI
SUS SERIES-Flanged Linear Bushing LMK 16 LUU
• Outer-sleeve, ball and flange : used stainless steel. corrosion resistance
products
• With a variety of design and ease of installation
• Used when the load of moving body passed directly to the Linear
Bushing
• Installed without housing
• Can be selected resin retainer (standard), and steel retainer (for high
temperature & vacuum)

LMK16UU - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
LMK16UU (SAMICK)
SMK16GUU (Nippon bearing)
LMK16UU (THK)
LHFS16 (MISUMI)

Inner Diameter (d): 16 mm.
Outer Diameter (D): 28 mm.
Length (L): 37 mm.
Dynamic Load Rating (C): 770 N.
Static Load Rating (C₀): 1170 N.

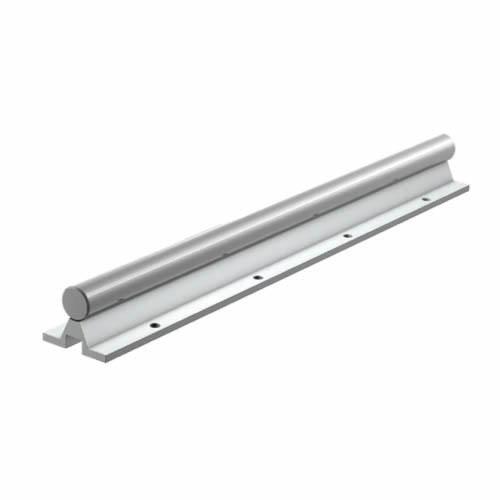

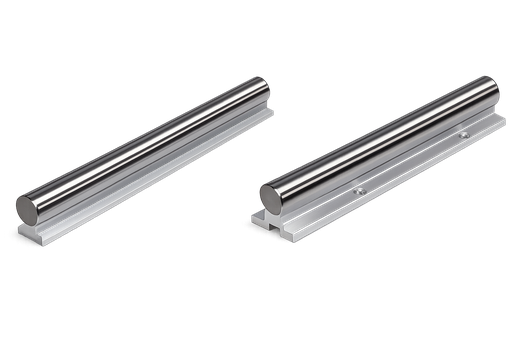

These precision-ground cylindrical shafts are mounted on a rigid aluminum support rail, ensuring easy installation and superior structural stability. The integrated support minimizes deflection, maintains precise alignment, and enables reliable operation under medium loads.

Ideal for CNC machines, 3D printers, and a wide range of automated systems, these shafts deliver smooth linear motion and long-lasting performance.

Diameter: 16 mm
Length: 6000 mm
Tolerance: h6 (high-precision fit)
Construction: Hardened and ground shaft with aluminum support rail
Select the appropriate type to match your application requirements.
