Block HGW30-HC-Z0-C is used in conjunction with the HGR30R4000H profile rail.
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error.
Application: grinding, milling, and drilling machine, lathe, machine center.

Block HGW30-HC-Z0-H is used in conjunction with the HGR30R4000H profile rail.
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error.
Application: grinding, milling, and drilling machine, lathe, machine center.

Block HGW35-CC-Z0-H is used in conjunction with the HGR35R4000H profile rail.
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error.
Application: grinding, milling, and drilling machine, lathe, machine center.

Block HGW35-CC-ZA-H is used in conjunction with the HGR35R4000H profile rail.
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error.
Application: grinding, milling, and drilling machine, lathe, machine center.

Block HGW45-CC-ZA-H is used in conjunction with the HGR45R4000H profile rail.
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error.
Application: grinding, milling, and drilling machine, lathe, machine center.

Block HGW45-HC-Z0-H is used in conjunction with the HGR45R4000H profile rail.
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error.
Application: grinding, milling, and drilling machine, lathe, machine center.

Block HGW45-HC-ZA-H is used in conjunction with the HGR45R4000H profile rail.
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error.
Application: grinding, milling, and drilling machine, lathe, machine center.

Block HGW55-HC-ZA-H is used in conjunction with the HGR55R4000H profile rail.
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error.
Application: grinding, milling, and drilling machine, lathe, machine center.

Block HGW65-CC-ZA-H is used in conjunction with the HGR65R4000H profile rail.
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error.
Application: grinding, milling, and drilling machine, lathe, machine center.

Hiwin HVE13IAB05MB incremental encoder cable for servo systems.
HVE13IAB05MB is for FR series motors and D2T series drivers.
Hiwin HVE13IAB05MB is for connect an incremental servo motor encoder.
5.0 meters (16.4 foots) long.

Hiwin HVE17IAB10MB incremental encoder cable for servo systems.
HVE17IAB10MB is for FR series motors and D2T series drivers.
Hiwin HVE17IAB10MB is for connect an incremental servo motor encoder.
10.0 meters (32.8 foots) long.

Hiwin HVPS06AA05MB power cable for servo systems.
HVPS06AA05MB is for FR series motors with Brake and D2T series drivers.
5.0 meters (16.4 foots) long.

Hiwin HVPS06AA10MB power cable for servo systems.
HVPS06AA10MB is for FR series motors with Brake and D2T series drivers.
10.0 meters (32.8 foots) long.

These toolholders are made for the Teknomotor ATC71. They should also work in HSD ES915 and other ISO30 machines. But when working with 24000 rpm , always verify the fit is 100% correct. Be very careful when using other standard ISO30 toolholders in ATC71 motor, since most are only balanced up to 8000RPM. This can cause bearing damage to the milling motor. For this reason we always advise to use the type we offer here, which is really made for this job.
• Toolholder ISO30 according to DIN69871
• Precision class: AT3 Dynamic balancing: G2.5 (ISO1940) @ 24000rpm
• Includes pull stud (Teknomotor/HSD/ELTE compatible)
• Includes balanced ER32 collet nut
• Collet size: ER32

Ball transfer unit KSM-30:

Cross References
5437630 (MADLER)
101923 (ALWAYSE)
201923 (ALWAYSE)

• Body Material: Chrome-plated sheet steel S45C
(offers enhanced corrosion resistance and a more aesthetic finish)
• Main (support) ball diameter: 30 mm
• Ball Material: SUJ2
• Load Capacity: Usually around 300 kg per unit
• Application: Enables smooth, multidirectional movement of items
• Mounting: Bolt fixing

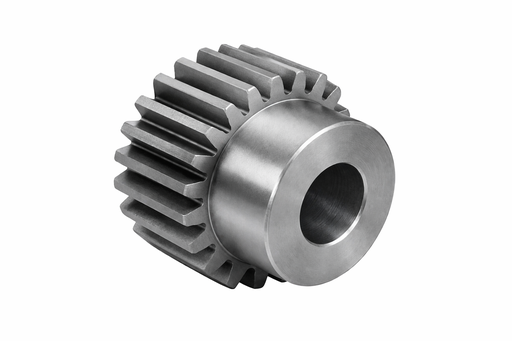

Moduł 1, materiał: C45. Zęby frezowane. Kąt przyporu 20°
Numery referencyjne:
21411015, 21411025
Aby złożyć zamówienie, wybierz wymaganą liczbę zębów (Z) z dostępnych opcji (zakres: 12–127).
Podaj średnicę wewnętrzną (d, mm).

Product analogs:
4R5604C4#N (NTN)
Z-507339.LZL (FAG)

Product analogs:
4R4610C4#N (NTN)
Z-508727.LZL (FAG)

Product analog:
4R7219C4PX1#N (NTN)

LM08LUU - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
LM8LUU (FLI)
SM8GWUU (Nippon bearing)
LM08LUU (SAMICK)

Inner Diameter (d): 8 mm.
Outer Diameter (D): 15 mm.
Length (L): 45 mm.
Dynamic Load Rating (C): 431 N.
Static Load Rating (C₀): 784 N.

LM08UU - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
LM8UU (FLI)
SM8GUU (Nippon bearing)
LM08UU (SAMICK)
LM81524 (IKO)

Inner Diameter (d): 8 mm.
Outer Diameter (D): 15 mm.
Length (L): 24 mm.
Dynamic Load Rating (C): 265 N.
Static Load Rating (C₀): 402 N.

LM08UUAJ - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
SM8GUU-AJ (Nippon bearing)
LM08UUAJ (SAMICK)
LM81524AJ (IKO)

Inner Diameter (d): 8 mm.
Outer Diameter (D): 15 mm.
Length (L): 24 mm.
Dynamic Load Rating (C): 265 N.
Static Load Rating (C₀): 402 N.

LM08UUOP - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Inner Diameter (d): 8 mm.
Outer Diameter (D): 15 mm.
Length (L): 24 mm.
Dynamic Load Rating (C): 265 N.
Static Load Rating (C₀): 402 N.

LM100UU - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
SM100GUU (Nippon bearing)
LM100UU (SAMICK)

Inner Diameter (d): 100 mm.
Outer Diameter (D): 150 mm.
Length (L): 175 mm.
Dynamic Load Rating (C): 14100 N.
Static Load Rating (C₀): 38400 N.

LM100UUAJ - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
LM100UUAJ (SAMICK)

Inner Diameter (d): 100 mm.
Outer Diameter (D): 150 mm.
Length (L): 175 mm.
Dynamic Load Rating (C): 14100 N.
Static Load Rating (C₀): 38400 N.

LM100UUOP - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
LM100150175OP (IKO)

Inner Diameter (d): 100 mm.
Outer Diameter (D): 150 mm.
Length (L): 175 mm.
Dynamic Load Rating (C): 14100 N.
Static Load Rating (C₀): 38400 N.

LM10LUU - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
LM10LUU (FLI)
SM10GWUU (Nippon bearing)
LM10LUU (SAMICK)

Inner Diameter (d): 10 mm.
Outer Diameter (D): 19 mm.
Length (L): 55 mm.
Dynamic Load Rating (C): 588 N.
Static Load Rating (C₀): 1100 N.

LM10UU - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
LM10UU (FLI)
SM10GUU (Nippon bearing)
LM10UU (SAMICK)
LM101929 (IKO)

Inner Diameter (d): 10 mm.
Outer Diameter (D): 19 mm.
Length (L): 29 mm.
Dynamic Load Rating (C): 373 N.
Static Load Rating (C₀): 549 N.

LM10UUAJ - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
SM10GUU-AJ (Nippon bearing)
LM10UUAJ (SAMICK)
LM101929AJ (IKO)

Inner Diameter (d): 10 mm.
Outer Diameter (D): 19 mm.
Length (L): 29 mm.
Dynamic Load Rating (C): 373 N.
Static Load Rating (C₀): 549 N.

LM10UUOP - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
SM10GUU-OP (Nippon bearing)
LM101929OP (IKO)

Inner Diameter (d): 10 mm.
Outer Diameter (D): 19 mm.
Length (L): 29 mm.
Dynamic Load Rating (C): 373 N.
Static Load Rating (C₀): 549 N.

LM12LUU - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.

Cross references:
LM12LUU (FLI)
SM12GWUU (Nippon bearing)
LM12LUU (SAMICK)

Inner Diameter (d): 12 mm.
Outer Diameter (D): 21 mm.
Length (L): 57 mm.
Dynamic Load Rating (C): 657 N.
Static Load Rating (C₀): 1200 N.
