The MSA65 linear guide from PMI with High (H) and Normal (N) accuracy grade is designed for applications that require high precision, smooth motion, and reliability under dynamic loads. It is widely used in machine tools, automation systems, 3D printers, and other industrial machinery.

These profile rails are applicable to both MSA and SMA series linear guides from PMI.

Delivery Terms:
- Cutting and docking are included in the product price and are performed using specialized equipment in accordance with the manufacturer's specifications to ensure precision and reliability.
- The price is specified per millimeter of length.
- If required, please specify the distance from the rail end to the first mounting hole (DISTANCE TO END "E").
Note: the maximum length of a single rail cannot exceed 4000 mm. Longer rails will be supplied in multiple precisely docked sections.

MSA65E is a carriage with installation on both (top or bottom) sides.

Cross References
HGW65CAZAH (HIWIN)
TRH65FNNZ0 (TBI)
SBI65FLNK2 (SBC)
R165162310 (Rexroth)
HSR65ASSC1H (THK)
LLRHC65AT1P3 (Ewellix)

The MSA-E/LE is a carriage with flange. This carriage is available in two different lengths, normal (MSA-E) or long (MSA-LE). Fastening holes are accessible either from top (S1) or bottom (S2). Full ball MSA-Series is especially suited for high precision and high rigidity required motion, for normal and high load.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

MSA65LE (Long Flange) is a carriage with installation on both (top or bottom) sides.

Cross References
HGW65HAZAH (HIWIN)
TRH65FENZ0 (TBI)
SBI65FLLNK2 (SBC)
R165361320 (Rexroth)
HSR65HASSH (THK)
LLRHC65LAT0P3 (Ewellix)

The MSA-E/LE is a carriage with flange. This carriage is available in two different lengths, normal (MSA-E) or long (MSA-LE). Fastening holes are accessible either from top (S1) or bottom (S2). Full ball MSA-Series is especially suited for high precision and high rigidity required motion, for normal and high load.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

MSA65LS is a Long Narrow type of PMI linear guideway, can be installed from top side of carriage.

Cross References
HGH65HAZAH (HIWIN)
TRH65VENZ0 (TBI)
SBI65SLLNK2 (SBC)
R162361310 (Rexroth)
HSR65HRSSH (THK)
LLRHC65LUT1P3 (Ewellix)

The MSA S/LS represents a streamlined square-shaped carriage, offered in both standard (MSA-S) and extended (MSA-LS) lengths. Notably, mounting holes are exclusively positioned on the upper side. Specifically tailored for applications demanding both precision and robustness, the MSA Series caters to both regular and substantial load requirements.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

MSA65S is a narrow type of PMI linear guideway, can be installed from top side of carriage.

Cross References
HGH65CAZAH (HIWIN)
TRH65VNNZ0 (TBI)
SBI65SLK2 (SBC)
R162261310 (Rexroth)
HSR65CRSSC1H(THK)
LLRHC65UT1P3 (Ewellix)

The MSA S/LS represents a streamlined square-shaped carriage, offered in both standard (MSA-S) and extended (MSA-LS) lengths. Notably, mounting holes are exclusively positioned on the upper side. Specifically tailored for applications demanding both precision and robustness, the MSA Series caters to both regular and substantial load requirements.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

The MSB35 linear guide from PMI with High (H) and Normat (N) accuracy grade offers a compact profile with excellent rigidity and smooth motion, making it ideal for a wide range of industrial automation, precision machinery, and equipment requiring stable linear movement in limited spaces.

These profile rails are applicable to both MSB and SMB series linear guides from PMI.

MSB-series applications
Machine Center
NC Lathe
XYZ Axes of Heavy Cutting Machine Tools
Grinding Machine Working Table
Feed Shaft of Milling Machine
Vertical or Horizontal Boring Machine
Z Axis of Boring Machine and Machine Tools
Auto Coating Machine
Industrial Robot
Various High Speed Material Supply Device
Z Axis of Industiral Machine
Binding Machine
EDM
Measuring Equipment
Precision XY Table

Dvigubas dvikryptis galinis sandariklis + apatinis sandariklis

Dvigubas dvikryptis galinis sandariklis + apatinis sandariklis + grandiklis

SL tepimo blokas suprojektuotas su alyvos rezervuaru, kuriame įrengtas didelio tankio pluošto tinklas

Dvikryptis galinis sandariklis + apatinis sandariklis + grandiklis

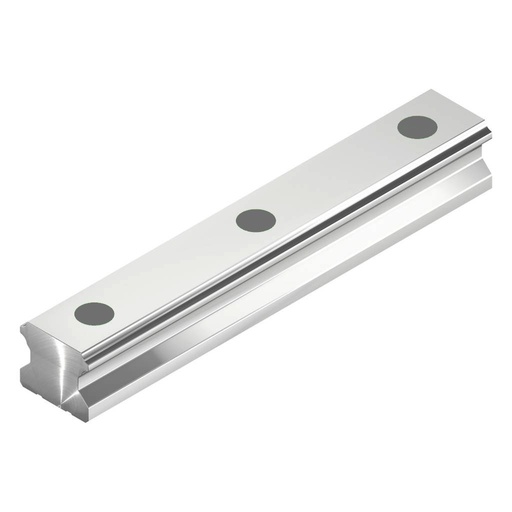

The MSB15 linear guide from PMI with High (H) and Normat (N) accuracy grade offers a compact profile with excellent rigidity and smooth motion, making it ideal for a wide range of industrial automation, precision machinery, and equipment requiring stable linear movement in limited spaces.

These profile rails are applicable to both MSB and SMB series linear guides from PMI.

Delivery Terms:
- Cutting and docking are included in the product price and are carried out using specialized equipment in strict accordance with PMI manufacturing requirements to ensure accuracy and durability.
- The price is specified per millimeter of length.
- If required, please specify the distance from the rail end to the first mounting hole (DISTANCE TO END "E").
Note: the maximum length of a single rail cannot exceed 4000 mm. Longer rails will be supplied in multiple precisely docked sections.

Cross References
EGW15CAZAH / EGW15CAZBH / EGW15CAZ0H (HIWIN)
TRS15FNNZ0 (TBI)
SR15TBUUC1H / SR15TBUUC0H / SR15TBUUH (THK)

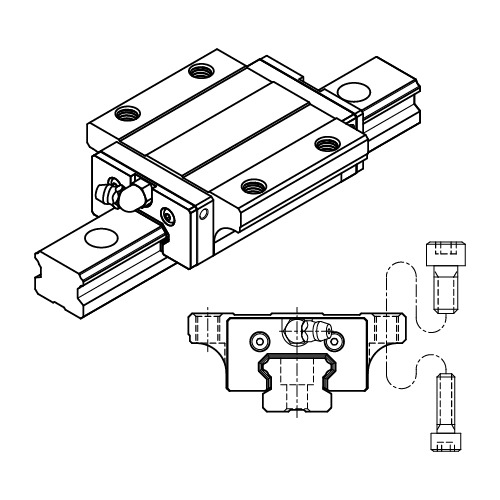

MSB15E is a normal length low flange carriage. The mounting holes are accessible from either the top (S1) or the bottom (S2). The MSB series is used for the most compact solution for light to normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TE) or normal (MSB-E). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGH15CAZAH / EGH15CAZBH / EGH15CAZ0H (HIWIN)
TRS15VNNZ0 (TBI)
SBS15SLK2 / SBS15SLK3 / SBS15SLK1 (SBC)
SR15WUUC1H / SR15WUUC0H / SR15WUUH (THK)

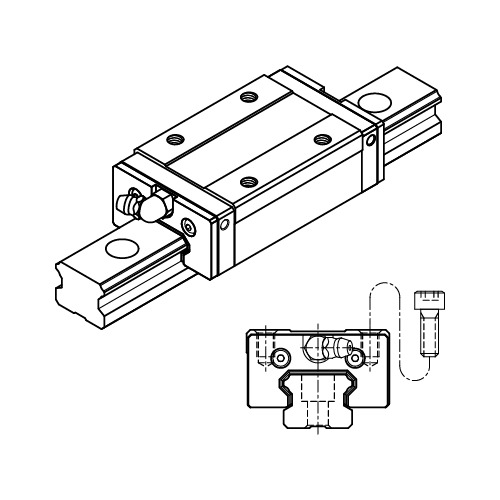

MSB15S is a normal length low narrow square type carriage. Fastening holes are only accessible from the top. The MSB-Series is used for the most compact solution for light and normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TS) or normal (MSB-S). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGW15SCZAH / EGW15SCZBH / EGW15SCZ0H (HIWIN)
TRS15FSNZ0 (TBI)
SBS15FVK2 / SBS15FVK3 / SBS15FVK1 (SBC)
SR15WUUC1H / SR15WUUC0H / SR15SBUUC0H (THK)

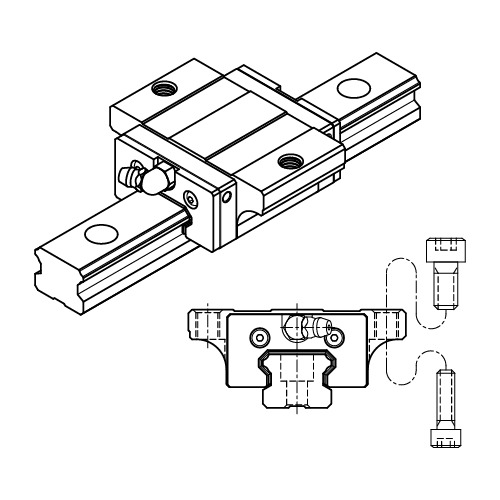

MSB15TE is a short length low flange carriage. The mounting holes are accessible from either the top (S1) or the bottom (S2). Short carriages are mainly used in pairs. The MSB series is used for the most compact solution for light to normal loads.

The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TE) or normal (MSB-E). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

Cross References
EGH15SAZAH / EGH15SAZBH / EGH15SAZ0H (HIWIN)
TRS15VSZ0 (TBI)
SBS15SVK2 / SBS15SVK3 / SBS15SVK3 (SBC)
SR15VUUC1H / SR15VUUC0H / SR15VUUH (THK)

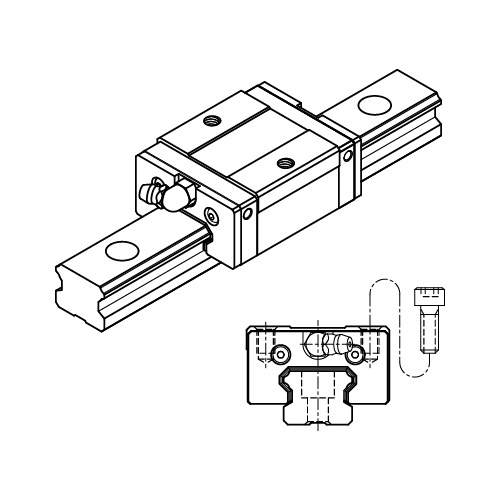

MSB15TS is a short length low narrow square type carriage. Fastening holes are only accessible from the top. Short carriages are mostly used in pairs. The MSB-Series is used for the most compact solution for light and normal loads.
