Metal end clamp of the protective cover strip on the guide HIWIN CG30-EJM-KIT. For guides of the CG series, size 15.

Metal end clamp of the protective cover strip on the guide HIWIN CG30-EJM-KIT. For guides of the CG series, size 25.

Metal end clamp of the protective cover strip on the guide HIWIN CG30-EJM-KIT. For guides of the CG series, size 30.

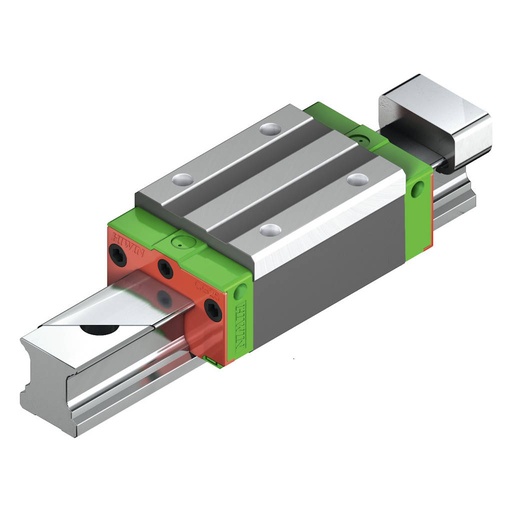

Block CGH15-CA-Z0-H is used in conjunction with the CGR15R4000H profile rail.
CG series linear guideways are a four-row arc-tooth contact type, featuring high rigidity, high load, and high torsional resistance.
Application: grinding, milling, and drilling machine, lathe, machine center.

Block CGH25-CA-Z0-H is used in conjunction with the CGR25R4000H profile rail.
G series linear guideways are a four-row arc-tooth contact type, featuring high rigidity, high load, and high torsional resistance.
Application: Grinding, milling, and drilling machine, lathe, machine center

Block CGH30-CA-Z0-H is used in conjunction with the CGR30R4000H profile rail.
CG series linear guideways are a four-row arc-tooth contact type, featuring high rigidity, high load, and high torsional resistance.
Application: Grinding, milling, and drilling machine, lathe, machine center.

Block CGH30-HA-Z0-H is used in conjunction with the CGR30R4000H profile rail.
CG series linear guideways are a four-row arc-tooth contact type, featuring high rigidity, high load, and high torsional resistance.
Application: grinding, milling, and drilling machine, lathe, machine center.

The CGR 15R4000H rail is compatible with CG series blocks and can also be used with or without CS-15 cover strip.
CGR 15R rail can be cut and joined based on customer’s request, taking into account the length requirements, using high-precision equipment, using the manufacturer’s technologies, including cutting, grinding and joining of several rails.
Application: grinding, milling, and drilling machine, lathe, machine center.

The CGR 25R4000H rail is compatible with CG series blocks and can also be used with or without CS-25 cover strip.
CGR 25R rail can be cut and joined based on customer’s request, taking into account the length requirements, using high-precision equipment, using the manufacturer’s technologies, including cutting, grinding and joining of several rails.
Application: grinding, milling, and drilling machine, lathe, machine center.

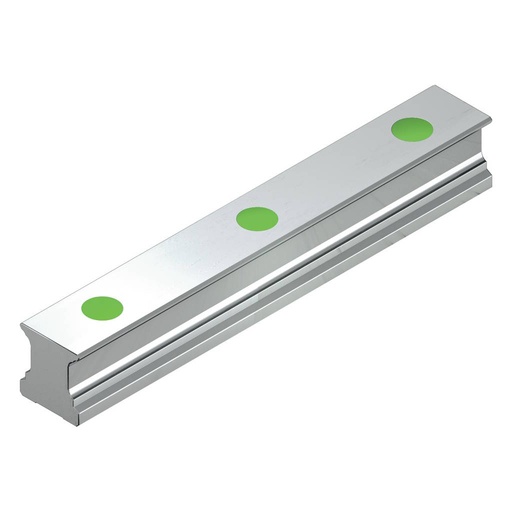

The CGR 30R4000H rail is compatible with CG series blocks and can also be used with or without CS-30 cover strip.
CGR 30R rail can be cut and joined based on customer’s request, taking into account the length requirements, using high-precision equipment, using the manufacturer’s technologies, including cutting, grinding and joining of several rails.
Application: grinding, milling, and drilling machine, lathe, machine center.

The CGR 30T4000P rail is compatible with CG series blocks.
CGR 30R rail can be cut and joined based on customer’s request, taking into account the length requirements, using high-precision equipment, using the manufacturer’s technologies, including cutting, grinding and joining of several rails.
Application: grinding, milling, and drilling machine, lathe, machine center.

CS-15 protective cover strip of mounting holes of CGR type 15 guides .

CS-25 protective cover strip of mounting holes of CGR type 25 guides .

CS-30 protective cover strip of mounting holes of CGR type 30 guides .

Hiwin D2T-0423-S-B4 servo driver.
Rated power 400 W.
Input voltage 230 VAC.
Current rated (peak) 2.5 (3.7) A
D2T-0423-S-B4 takes Pulse+Direction control modes.
User-configurable I/O: 9 DI, 4 DO and 1 AI.

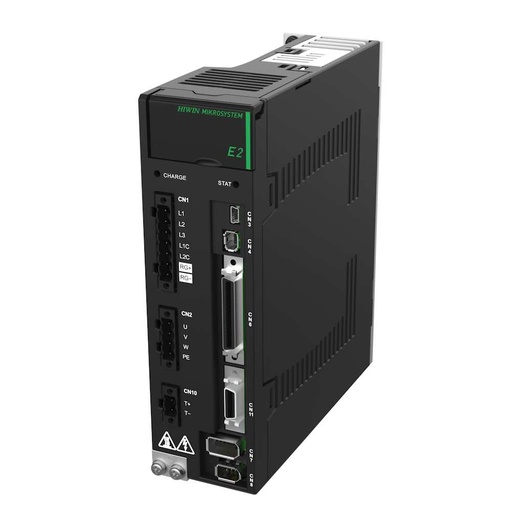

Hiwin ED2S-V0-003-1-C-00 servo driver.
Rated power 500 W.
Input voltage 230 VAC.
Current rated (peak) 3.0 (12.0) A
ED2S-V0-003-1-C-00 takes Pulse+Direction control modes.
User-configurable I/O: 9 DI, 5 DO, 1 AI and 2 AO.

Block EGH15-SA-Z0-H is used in conjunction with the EGR15R4000H profile rail.
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies.
Application: automatic equipment, high speed transfer device, semiconductor
equipment, wood cutting machine, precision measure equipment.

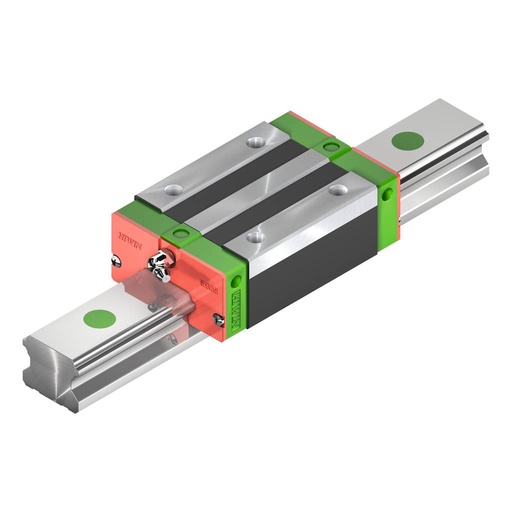

Block EGH20-CA-Z0-H is used in conjunction with the EGR20R4000H profile rail.
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies.
Application: automatic equipment, high speed transfer device, semiconductor
equipment, wood cutting machine, precision measure equipment.

Block EGH25-CA-Z0-H is used in conjunction with the EGR25R4000H profile rail.
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies.
Application: automatic equipment, high speed transfer device, semiconductor
equipment, wood cutting machine, precision measure equipment.

Block EGH30-CA-Z0-H is used in conjunction with the EGR30R4000H profile rail.
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies.
Application: automatic equipment, high speed transfer device, semiconductor
equipment, wood cutting machine, precision measure equipment.

Block EGH30-SA-Z0-H is used in conjunction with the EGR30R4000H profile rail.
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies.
Application: automatic equipment, high speed transfer device, semiconductor
equipment, wood cutting machine, precision measure equipment.
