Leadshine CS-D508 sterownik silnika krokowego z pętlą sprzężenia zwrotnego.
Napięcie wejściowe 20 - 50 VDC.
Prąd wyjściowy 0,50 - 8,00 A.
Sterownik CS-D508 obsługuje tryby sterowania Krok+Kierunek (PUL/DIR) lub Zgodnie/Przeciwnie do ruchu wskazówek zegara (CW/CCW). Zamknięty sterownik silnika krokowego Leadshine CS-D508 jest łatwy w konfiguracji za pomocą przełączników DIP.

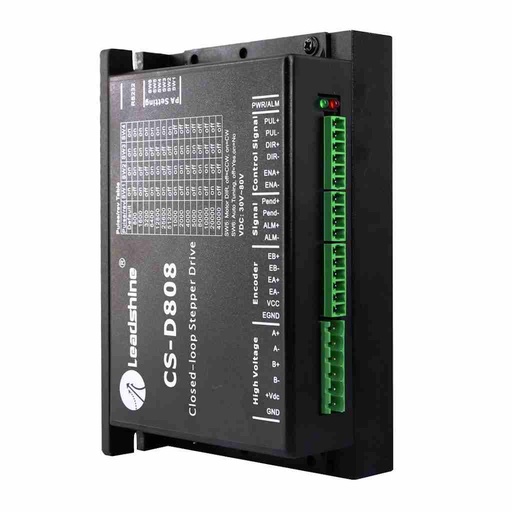

Leadshine CS-D808 sterownik silnika krokowego z pętlą sprzężenia zwrotnego.
Napięcie wejściowe 20 - 80 VDC.
Prąd wyjściowy 0,50 - 8,00 A.
Sterownik CS-D808 obsługuje tryby sterowania Krok+Kierunek (PUL/DIR) lub Zgodnie/Przeciwnie do ruchu wskazówek zegara (CW/CCW). Sterownik silnika krokowego z pętlą sprzężenia zwrotnego Leadshine CS-D808 jest łatwy do konfiguracji za pomocą przełączników DIP.

Leadshine CS-M22313 NEMA 23 closed loop stepper motor.
Holding torque 1.3 Nm.
Current 4.00 A.
75 mm (2.95 inch) long.
8 mm (0.315 inch) shaft size.
Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder.

Leadshine CS-M22323 NEMA 23 closed loop stepper motor.
Holding torque 2.3 Nm.
Current 5.00 A.
96 mm (3.78 inch) long.
8 mm (0.315 inch) shaft size.
Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder.

Leadshine CS-M23485 NEMA 34 closed loop stepper motor.
Holding torque 8.5 Nm.
Current 6.00 A.
147 mm (5.79 inch) long.
14 mm (0.551 inch) shaft size.
Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder.

Deep groove ball bearing, radial contact, pressed steel cage, spherical outer diameter, contact seals on both sides.
Product analogs:
SNR 6205SEE
SKF 1726205-2RS1
INA 205-XL-NPP-B

Deep groove ball bearing, radial contact, pressed steel cage, spherical outer diameter, contact seals on both sides.
Product analogs:
SNR 6206SEE
SKF 1726206-2RS1
INA 206-XL-NPP-B

Deep groove ball bearing, radial contact, pressed steel cage, spherical outer diameter, contact seals on both sides.
Product analogs:
SNR 6207SEE
SKF 1726207-2RS1
INA 207-XL-NPP-B

Deep groove ball bearing, radial contact, pressed steel cage, spherical outer diameter, contact seals on both sides.
Product analogs:
SNR 6208SEE
SKF 1726208-2RS1
INA 208-XL-NPP-B

Deep groove ball bearing, radial contact, pressed steel cage, spherical outer diameter, contact seals on both sides.
Product analogs:
SNR 6209SEE
SKF 1726209-2RS1
INA 209-XL-NPP-B

Deep groove ball bearing, radial contact, pressed steel cage, spherical outer diameter, contact seals on both sides.
Product analogs:
SNR 6210SEE
SKF 1726210-2RS1
INA 210-XL-NPP-B

Deep groove ball bearing, radial contact, pressed steel cage, spherical outer diameter, contact seals on both sides.
Product analogs:
SNR 6308SEE
SKF 1726308-2RS1

Deep groove ball bearing, radial contact, pressed steel cage, spherical outer diameter, contact seals on both sides.
Product analogs:
SNR 6309SEE
SKF 1726309-2RS1

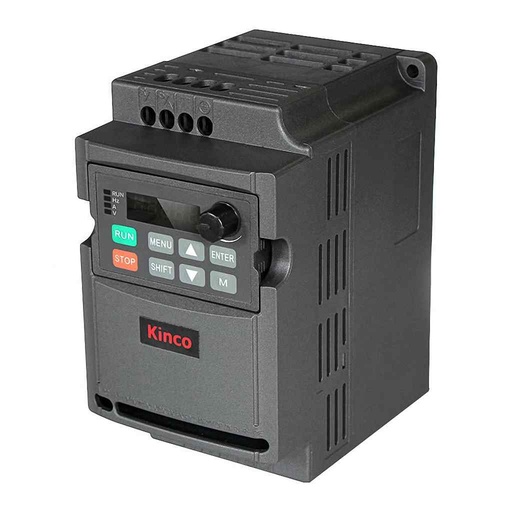

Falownik Kinco CV100-2S-0022G.
Moc znamionowa 2.2 kW.
Napięcie wejściowe 230 VAC.
Prąd znamionowy (szczytowy) 10 (18) A.
Częstotliwość wyjściowa 0 Hz...300 Hz.
Komunikacja szeregowa: Modbus RTU.
Sterowanie momentem obrotowym: Wektorowe, Skalarne.
Konfigurowalne wejścia/wyjścia: 5 DI, 2 DO, 2 AI oraz 1 AO.

Hiwin D2T-0423-S-B4 servo driver.
Rated power 400 W.
Input voltage 230 VAC.
Current rated (peak) 2.5 (3.7) A
D2T-0423-S-B4 takes Pulse+Direction control modes.
User-configurable I/O: 9 DI, 4 DO and 1 AI.

Leadshine D57CM31-4A NEMA 23 stepper motor.
Holding torque 3.1 Nm.
Current 4 A.
88 mm (3.46 inch) long.
8 mm (0.315 inch) shaft size.

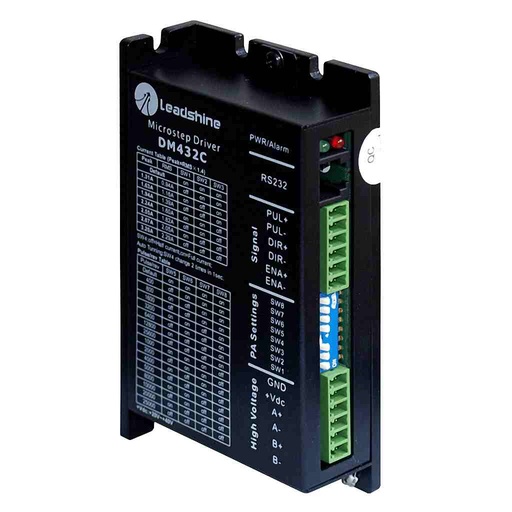

Leadshine DM432C sterownik silnika krokowego.
Napięcie wejściowe: 18 - 40 VDC.
Prąd wyjściowy: 0,10 - 3,20 A.
Sterownik DM432C obsługuje tryby sterowania Krok+Kierunek (PUL/DIR) lub CW/CCW.
Sterownik silnika krokowego Leadshine DM432C jest łatwy do konfiguracji za pomocą przełączników DIP.

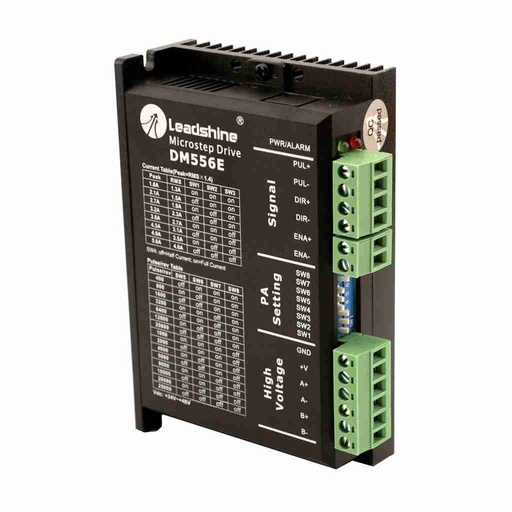

Leadshine DM556E sterownik silnika krokowego.
Napięcie wejściowe: 18 - 50 VDC.
Prąd wyjściowy: 1,80 - 5,60 A.
Sterownik DM556E obsługuje tryby sterowania Krok+Kierunek (PUL/DIR).
Sterownik silnika krokowego Leadshine DM556E jest łatwy w konfiguracji za pomocą przełączników DIP.

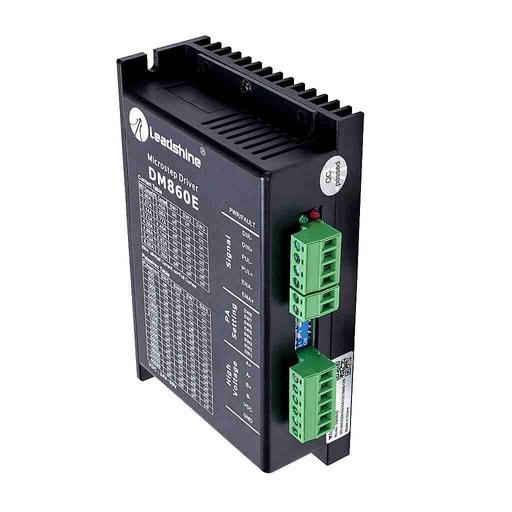

Leadshine DM860E sterownik silnika krokowego.
Napięcie wejściowe: 24 - 74 VDC.
Prąd wyjściowy: 2,40 - 7,20 A.
Sterownik DM860E obsługuje tryby sterowania Krok+Kierunek (PUL/DIR) lub CW/CCW.
Sterownik silnika krokowego Leadshine DM860E jest łatwy w konfiguracji za pomocą przełączników DIP.

Hiwin ED2S-V0-003-1-C-00 servo driver.
Rated power 500 W.
Input voltage 230 VAC.
Current rated (peak) 3.0 (12.0) A
ED2S-V0-003-1-C-00 takes Pulse+Direction control modes.
User-configurable I/O: 9 DI, 5 DO, 1 AI and 2 AO.

Block EGH15-SA-Z0-H is used in conjunction with the EGR15R4000H profile rail.
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies.
Application: automatic equipment, high speed transfer device, semiconductor
equipment, wood cutting machine, precision measure equipment.

Block EGH20-CA-Z0-H is used in conjunction with the EGR20R4000H profile rail.
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies.
Application: automatic equipment, high speed transfer device, semiconductor
equipment, wood cutting machine, precision measure equipment.

Block EGH25-CA-Z0-H is used in conjunction with the EGR25R4000H profile rail.
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies.
Application: automatic equipment, high speed transfer device, semiconductor
equipment, wood cutting machine, precision measure equipment.

Block EGH30-CA-Z0-H is used in conjunction with the EGR30R4000H profile rail.
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies.
Application: automatic equipment, high speed transfer device, semiconductor
equipment, wood cutting machine, precision measure equipment.

Block EGH30-SA-Z0-H is used in conjunction with the EGR30R4000H profile rail.
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies.
Application: automatic equipment, high speed transfer device, semiconductor
equipment, wood cutting machine, precision measure equipment.
