EK15-FK15/E8 End machining
Cross References:
- EK15-C5 Bearing fixed unit
- FK15-C5 Bearing fixed unit
- R20-05-1500-0.023-BD3.175 Rolled shaft
- R20-05K4-FSCDIN-BD3.175 Ballscrew nut
Aprašymas:

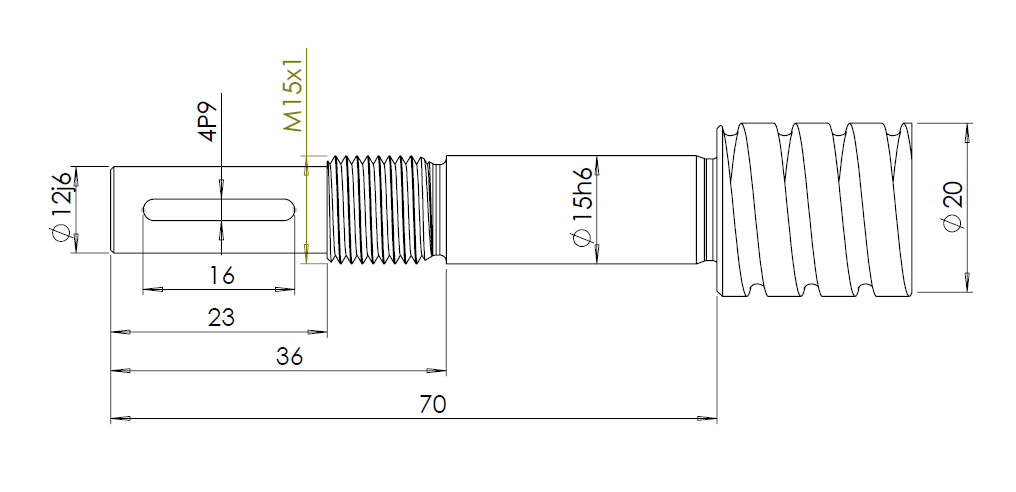

The EK15-FK15/E8 ball screw end machining is used for EK15-C5 and FK15-C5 floating bearing supports.
This processing is performed on rolled shafts R20-05.
Turning is carried out on high-precision CNC machines using the technology of the manufacturer approved by HIWIN.
Techninė informacija:
| Veleno skersmuo:20 |
