MSB15S Linear сarriage
Description:
Cross References
EGH15CAZAH / EGH15CAZBH / EGH15CAZ0H (HIWIN)
TRS15VNNZ0 (TBI)
SBS15SLK2 / SBS15SLK3 / SBS15SLK1 (SBC)
SR15WUUC1H / SR15WUUC0H / SR15WUUH (THK)

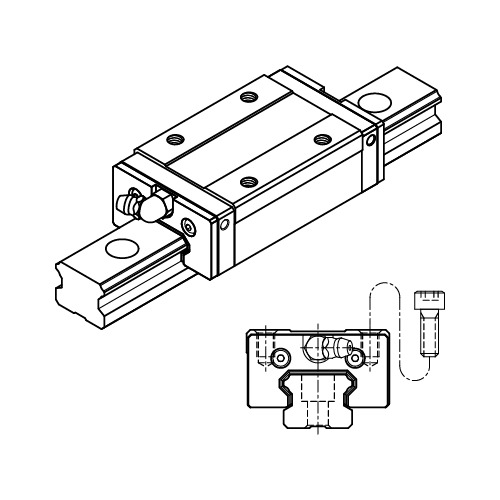

MSB15S is a normal length low narrow square type carriage. Fastening holes are only accessible from the top. The MSB-Series is used for the most compact solution for light and normal loads.
The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TS) or normal (MSB-S). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.
Technical information:
| Linijinių kreipiamųjų serija:MSB - Compact |
| Linijinių kreipiamųjų dydis:15 |
| Carriage type:S (Square, mounting from top. Heavy load) |
| Prekinis ženklas:PMI |
