MSB15ESSF0H Carriage
Description:
Cross References
EGW15CAZAH (HIWIN)
TRS15FNNZ0 (TBI)
SR15TBUUC1H (THK)

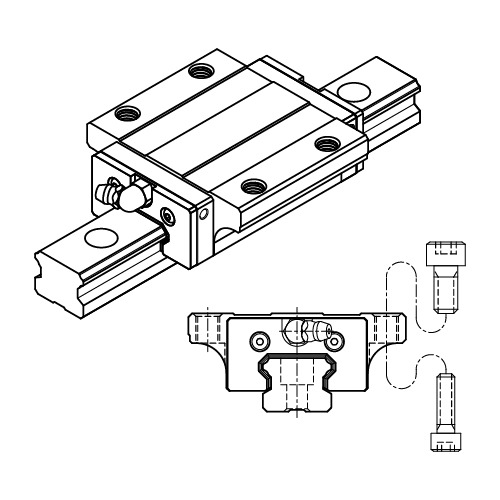

MSB15E is a normal length low flange carriage. The mounting holes are accessible from either the top (S1) or the bottom (S2). The MSB series is used for the most compact solution for light to normal loads.
The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TE) or normal (MSB-E). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.
Technical information:
| Linijinių kreipiamųjų serija:MSB - Compact |
| Linijinių kreipiamųjų dydis:15 |
| Prekinis ženklas:PMI |
